RM36D0EC _58 Vehicle Interior _083102 SEAT _0420333 LUMBAR SUPPORT ADJUSTER ASSEMBLY(for GTMC Made) A

SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY(for GTMC Made) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

PROCEDURE

Hide Display 71587B 1.INSTALL FRONT SEATBACK EDGE PROTECTOR

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0048,

Hide Display 85867A 2.INSTALL SEATBACK CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0066,

Hide Display 79977H 3.INSTALL FRONT SEATBACK FELT LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0071,

Hide Display 72760D 4.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

0,0 0,0 false

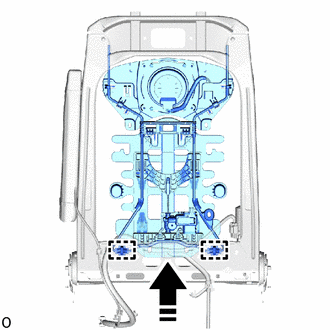

Install in this Direction

Set the lumbar support adjuster assembly LH to the front seatback frame sub-assembly LH in the installation direction shown in the illustration.

Attach the clamp.

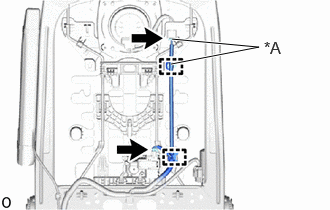

1.781,0.667 2.698,0.49 2.698,0.49 1.792,0.406 true 2.75,0.396 3.042,0.646 0.292,0.25 12 false *A

*A	w/ Climate Control Seat System

Attach the clamp.

w/o Climate Control Seat System:

Connect the connector.

w/ Climate Control Seat System:

Connect the 2 connectors.

Hide Display 5.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0055,

Hide Display 6.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0056,

Hide Display 71862 7.INSTALL FRONT SEAT INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0057,

Hide Display 71812D 8.INSTALL FRONT SEAT CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0061,

Hide Display 71868A 9.INSTALL FRONT SEAT NO. 1 INNER CUSHION SHIELD LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>REASSEMBLY202304,999999,_58,_083102,_0419057,RM1000000029RM7_05_0033,

Hide Display 10.INSTALL FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for GTMC Made Power Seat)>INSTALLATION202405,999999,_58,_083102,_0419057,RM100000002LTTK,

Hide Display 11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202405,202409,_V1,_083041,_0402304,RM100000002LTUF,202409,999999,_V1,_083041,_0402304,RM100000002NY03,

Hide Display 12. PERFORM DIAGNOSTIC SYSTEM CHECK

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>DTC CHECK / CLEAR202405,999999,_58,_083100,_0694959,RM100000002LV1B,

Hide Display 13.CHECK SRS WARNING LIGHT

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083100,_0694959,RM100000002LV17,

Hide Display 14.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM (for GTMC Made)>OPERATION CHECK202405,999999,_58,_083103,_0694954,RM100000002LUZN,

Hide Display 15.INSPECT FRONT POWER SEAT CONTROL SYSTEM

for HV Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for HV Model)>OPERATION CHECK202304,999999,_58,_083102,_0407492,RM1000000029D6D,

for Gasoline Model:

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM (for Gasoline Model)>OPERATION CHECK202304,999999,_58,_083102,_0407266,RM1000000029D5N,

Hide Display 16.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

for HV Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for HV Model)>OPERATION CHECK202004,999999,_58,_083102,_0407493,RM100000001MTIA,

for Gasoline Model:

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM (for Gasoline Model)>OPERATION CHECK202004,999999,_58,_083102,_0407267,RM100000001MTKH,

Hide Display 17.INSPECT CLIMATE CONTROL SEAT SYSTEM (w/ Climate Control Seat System)

for HV Model:

Click hereVehicle Interior>SEAT>CLIMATE CONTROL SEAT SYSTEM (for HV Model)>OPERATION CHECK202004,999999,_58,_083102,_0420018,RM100000001MTHH,

for Gasoline Model:

Click hereVehicle Interior>SEAT>CLIMATE CONTROL SEAT SYSTEM (for Gasoline Model)>OPERATION CHECK202004,999999,_58,_083102,_0420019,RM100000001MTHW,
