NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  U11D087  Lost Local Communication with MET Missing Message


DESCRIPTION

These DTCs are stored when the navigation receiver assembly detects a communication malfunction with the combination meter assembly and meter mirror sub-assembly*.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
U11D087 Lost Local Communication with MET Missing Message Communication malfunction between navigation receiver assembly and combination meter assembly for 30 seconds or more
(2 trip detection logic)
·

Open or short in local bus circuit

·

Harness or connector

·

Combination meter assembly

·

Navigation receiver assembly

·

No. 12 junction connector

·

Meter mirror sub-assembly*


Navigation System A

*: w/ Headup Display

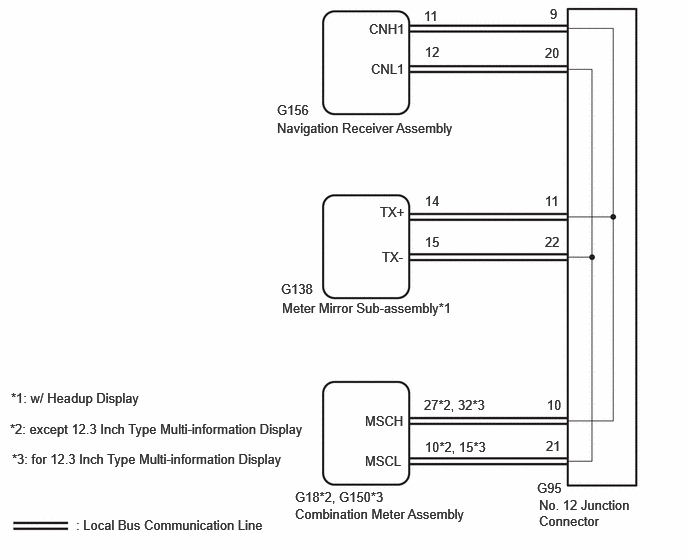

WIRING DIAGRAM

E494691E03
5.594,5 6.052,5.198 0.458,0.198 10 false G95 5.615,5.177 6.604,5.646 0.99,0.469 10 false No. 12 Junction Connector 2.885,1.25 4.927,1.552 2.042,0.302 10 false Navigation Receiver Assembly 2.885,1.063 3.344,1.26 0.458,0.198 10 false G156 3.844,0.219 4.302,0.417 0.458,0.198 10 false CNH1 3.958,2.125 4.417,2.323 0.458,0.198 10 false TX+ 3.802,4.302 4.26,4.5 0.458,0.198 10 false MSCH 3.802,4.719 4.26,4.917 0.458,0.198 10 false MSCL 3.865,0.635 4.323,0.833 0.458,0.198 10 false CNL1 4.417,0.083 4.875,0.281 0.458,0.198 10 false 11 4.427,0.458 4.885,0.656 0.458,0.198 10 false 12 5.729,0.063 6.188,0.26 0.458,0.198 10 false 9 5.677,0.469 6.135,0.667 0.458,0.198 10 false 20 2.927,2.927 3.385,3.125 0.458,0.198 10 false G138 2.938,3.125 4.844,3.406 1.906,0.281 10 false Meter Mirror Sub-assembly*1 3.979,2.594 4.438,2.792 0.458,0.198 10 false TX- 4.427,2.01 4.885,2.208 0.458,0.198 10 false 14 4.427,2.438 4.885,2.635 0.458,0.198 10 false 15 5.677,2.01 6.135,2.208 0.458,0.198 10 false 11 5.677,2.438 6.135,2.635 0.458,0.198 10 false 22 3.073,5.271 5.042,5.552 1.969,0.281 10 false Combination Meter Assembly 3.073,5.094 4.052,5.323 0.979,0.229 10 false G18*2, G150*3 0.792,5.385 3.344,5.594 2.552,0.208 10 false : Local Bus Communication Line 5.698,4.135 6.156,4.333 0.458,0.198 10 false 10 5.688,4.563 6.146,4.76 0.458,0.198 10 false 21 4.417,4.135 5.271,4.333 0.854,0.198 10 false 27*2, 32*3 4.427,4.573 5.365,4.771 0.938,0.198 10 false 10*2, 15*3 0.115,4.063 2.667,4.271 2.552,0.208 10 false *1: w/ Headup Display 0.104,4.385 3.229,4.677 3.125,0.292 10 false *2: except 12.3 Inch Type Multi-information Display 0.125,4.698 3.25,4.99 3.125,0.292 10 false *3: for 12.3 Inch Type Multi-information Display

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION

·

Inspect the fuses and relays related to this system before inspecting the suspected areas below.

·

When replacing the combination meter assembly, make sure to replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in the combination meter assembly will not match the information from the vehicle and a DTC may be stored.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key, switches or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION

·

When disconnecting the cable from the negative (-) auxiliary battery terminal, refer toAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION




HINT:
·

Before disconnecting related connectors for inspection, push in on the connector body to check that each connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs and proceed to the following step.

Body Electrical > Navigation System > Trouble Codes
50001 496
Body Electrical > Combination Meter > Trouble Codes
50001 409

Pattern GTS Display
Navigation System Combination Meter Head Up Display*

*: w/ Headup Display

Pattern 1 U11D087 B132187 B132187
Pattern 2 U11D087 B132187
Pattern 4 U11D087 - -

Result:
Result Proceed to
Pattern 1 A
Pattern 2 B
Pattern 3 C



A

2.CHECK VEHICLE TYPE

B

6.CHECK FOR CAN BUS WIRE (COMBINATION METER ASSEMBLY MAIN WIRE)

C

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


2.CHECK VEHICLE TYPE
a.

Check the vehicle type.


Result:
Result Proceed to
w/o Headup Display A
w/ Headup Display B



A

4.CHECK FOR CAN BUS WIRE (COMBINATION METER ASSEMBLY MAIN WIRE)

B

3.CHECK METER MIRROR SUB-ASSEMBLY
3.CHECK METER MIRROR SUB-ASSEMBLY

Pre-procedure1

a.

Disconnect the meter mirror sub-assembly connector.


Procedure1

b.

Check for DTC.

Body Electrical > Navigation System > Trouble Codes
50001 496
Result:
Result Proceed to
DTC U11D087 is output A
No DTCs are output. B



Post-procedure1

c.

None



A

4.CHECK FOR CAN BUS WIRE (COMBINATION METER ASSEMBLY MAIN WIRE)

B

REPLACE METER MIRROR SUB-ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>HEADUP DISPLAY>REMOVAL


4.CHECK FOR CAN BUS WIRE (COMBINATION METER ASSEMBLY MAIN WIRE)

Pre-procedure1

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the G18*1 or G150*2 combination meter assembly connector.

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type



Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G18-27 (MSCH) - G18-10 (MSCL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
G18-27 (MSCH) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G18-10 (MSCL) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G18-27 (MSCH) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G18-10 (MSCL) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-32 (MSCH) - G150-15 (MSCL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
G150-32 (MSCH) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G150-15 (MSCL) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G150-32 (MSCH) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G150-15 (MSCL) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

5.CHECK FOR CAN BUS WIRE (NAVIGATION RECEIVER ASSEMBLY MAIN WIRE)
5.CHECK FOR CAN BUS WIRE (NAVIGATION RECEIVER ASSEMBLY MAIN WIRE)

Pre-procedure1

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the G156 navigation receiver assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
G156-11 (CNH1) - G156-12 (CNL1) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
G156-11 (CNH1) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G156-12 (CNL1) - G114-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
G156-11 (CNH1) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
G156-12 (CNL1) - G114-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK FOR CAN BUS WIRE (COMBINATION METER ASSEMBLY MAIN WIRE)

Pre-procedure1

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the G18*1 or G150*2 combination meter assembly connector.

*1: except 12.3 Inch Multi-information Display Type

*2: for 12.3 Inch Multi-information Display Type



Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
except 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G18-27 (MSCH) - G18-10 (MSCL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

for 12.3 Inch Multi-information Display Type
Tester Connection Condition Specified Condition
G150-32 (MSCH) - G150-15 (MSCL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
