CRUISE CONTROL MILLIMETER WAVE RADAR SENSOR INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:: If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

Hide Display 88211B 1.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

2.896,0.635 3.177,0.885 0.281,0.25 10 true (1) 0.333,0.615 0.615,0.865 0.281,0.25 10 true (2) 2,0.031 2.281,0.281 0.281,0.25 10 true (3)

	Bolt
	Screw

Attach the guide.

Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.

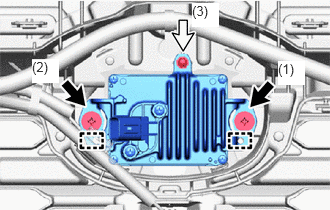

Tighten the 2 bolts and screw in the order shown in the illustration.

Attach the connector.

Hide Display 16681A 2.INSTALL RADIATOR UPPER AIR GUIDE PLATE

Hide Display 53510 3.INSTALL HOOD LOCK ASSEMBLY

Hide Display 17751 4.INSTALL NO. 1 INLET AIR CLEANER (for Gasoline Model)

for M20C-FKS:

for M20D-FKS:

Hide Display 53301 5.INSPECT HOOD SUB-ASSEMBLY

Hide Display 6.ADJUST MILLIMETER WAVE RADAR SENSOR

When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.

HINT:: Millimeter wave radar sensor assembly learning can be performed by using either Target Adjustment (Triangle Target) or Target Adjustment (Flat Surface Target) or Driving Adjustment.; ·

Target Adjustment (Triangle Target):

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(TRIANGLE TARGET)202304,202405,_51,_083055,_0401007,RM1000000029L6G,202405,202409,_51,_083055,_0401007,RM100000002ME7I,202409,999999,_51,_083055,_0401007,RM100000002NTD8,

·

Target Adjustment (Flat Surface Target):

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>TARGET ADJUSTMENT(FLAT SURFACE TARGET)202304,202405,_51,_083055,_0401007,RM1000000029L6H,202405,202409,_51,_083055,_0401007,RM100000002ME7K,202409,999999,_51,_083055,_0401007,RM100000002NTDA,

·

Driving Adjustment:

Click hereEngine / Hybrid System>CRUISE CONTROL>MILLIMETER WAVE RADAR SENSOR>DRIVING ADJUSTMENT202304,202405,_51,_083055,_0401007,RM1000000029L6F,202405,202409,_51,_083055,_0401007,RM100000002ME7H,202409,999999,_51,_083055,_0401007,RM100000002NTD7,
