M20D-FKS INTAKE / EXHAUST  INTAKE MANIFOLD  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 1.INSTALL VACUUM HOSE

a.

Install the vacuum hose to the intake manifold.


Hide 17177 2.INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET

a.

Install a new No. 1 intake manifold to head gasket to the intake manifold.


Hide 17111 3.INSTALL INTAKE MANIFOLD

a.

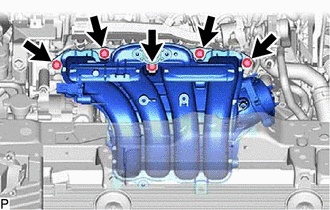

A433923
1.542,0.094 1.698,0.292 0.156,0.198 10 true 1 0.729,0.052 0.885,0.25 0.156,0.198 10 true 2 2.281,0.073 2.438,0.271 0.156,0.198 10 true 3 0.083,0.208 0.24,0.406 0.156,0.198 10 true 4 2.917,0.219 3.073,0.417 0.156,0.198 10 true 5

Temporarily install the intake manifold to the cylinder head sub-assembly with the 5 bolts.


b.

Tighten the 5 bolts in the order shown in the illustration.

Torque:
24 N*m (245 kgf*cm, 18 ft.*lbf)


Hide 23826 4.CONNECT NO. 1 FUEL VAPOR FEED HOSE

a.

Connect the No. 1 fuel vapor feed hose to the intake manifold and slide the clip to secure it.


Hide 17138B 5.INSTALL INTAKE MANIFOLD STAY

a.

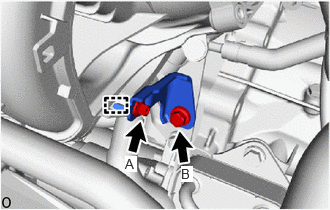

A426160N01
1.885,1.729 2.01,1.896 0.125,0.167 10 true B 1.302,1.625 1.427,1.792 0.125,0.167 10 true A

Attach the guide to install the intake manifold stay.


b.

Install the bolt (B).

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


c.

Using an 8 mm socket wrench, install the bolt (A).

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


Hide 16279 6.CONNECT NO. 3 WATER BY-PASS PIPE

a.

Using an 8 mm socket wrench, install the No. 3 water by-pass pipe to the intake manifold with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


b.

Connect the No. 2 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.


Hide 82121 7.CONNECT ENGINE WIRE

a.

Attach the 2 wire harness clamps to connect the engine wire.


b.

Install the 2 bolts.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


c.

Connect the connector.


d.

Attach the wire harness clamp to connect the engine wire.


e.

Install the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)


Hide 89421 8.INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>VACUUM SENSOR>INSTALLATION
