M20D-FKS ENGINE CONTROL  SFI SYSTEM  P013616  A/F (O2) Sensor Circuit Bank 1 Sensor 2 Circuit Current (Voltage) Below Threshold  P013A7C  A/F Sensor - Rich to Lean Bank 1 Sensor 2 Slow Response


DESCRIPTION

Refer to DTC P003612.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>P003612

HINT:

Although the DTC title say O2 sensor, this DTC relate to the air fuel ratio sensor (sensor 2).


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P013616 A/F (O2) Sensor Circuit Bank 1 Sensor 2 Circuit Current (Voltage) Below Threshold Either of the following conditions is met (2 trip detection logic).
·

During active rich air-fuel ratio control, the air fuel ratio sensor (sensor 2) current is 6 mA or more

·

During active rich air-fuel ratio control, the oxygen storage capacity of the catalyst is more than 2.0 g when the air fuel ratio sensor (sensor 2) current is -0.25757 mA or higher


·

Air fuel ratio sensor (sensor 2)

·

Air fuel ratio sensor (sensor 1)

·

Gas leak from exhaust system

·

EGR valve assembly

·

Fuel system

·

Intake system


Comes on DTC stored SAE: P0136
P013A7C A/F Sensor - Rich to Lean Bank 1 Sensor 2 Slow Response During a fuel cut, the amount of time it takes for the current of the air fuel ratio sensor (sensor 2) to increase to a certain amount is equal to or greater than the threshold (1 trip detection logic).
·

Air fuel ratio sensor (sensor 2)

·

Gas leak from exhaust system


Comes on DTC stored SAE: P013A

MONITOR DESCRIPTION

Active Air fuel Ratio Control


The ECM usually performs air fuel ratio feedback control so that the air fuel ratio sensors output indicates a near stoichiometric air fuel ratio. This vehicle includes active air fuel ratio control in addition to regular air fuel ratio control. The ECM performs active air fuel ratio control to detect any deterioration in the Three-Way Catalytic Converter (TWC) and any malfunctions of the air fuel ratio sensor (sensor 2) (refer to the diagram below).

Active air fuel ratio control is performed for approximately 30 seconds while driving with a warm engine. During active air fuel ratio control, the air fuel ratio is forcibly regulated to become lean or rich by the ECM. If the ECM detects a malfunction, a DTC is stored.


Abnormal Air Fuel Ratio Sensor (Sensor 2) Output Current (DTC P013616)


Case 1: The ECM illuminates the MIL and stores a DTC when active rich air-fuel ratio control is being performed and the air fuel ratio sensor (sensor 2) current is 6 mA or more.

Case 2: The ECM illuminates the MIL and stores a DTC when active rich air-fuel ratio control is being performed, the oxygen storage capacity of the catalyst is more than 2.0 g and the air fuel ratio sensor (sensor 2) current is -0.25757 mA or more.

A392731E02
4.302,4.01 4.948,3.656 true 4.229,2.385 5.021,2.594 true 6.042,3.792 6.583,4.344 true 6.042,3.792 6.677,3.083 true 0.146,0.177 5.781,0.51 5.635,0.333 10 false Air Fuel Ratio Sensor (Sensor 2) Output Current Malfunction (P013616) 0.073,1.063 1.375,1.479 1.302,0.417 10 false Active Air Fuel Ratio Control 4.573,0.844 5.208,1.052 0.635,0.208 10 false Operation 0.031,2.927 1.365,3.5 1.333,0.573 10 false Air Fuel Ratio Sensor (Sensor 2) Output Current 0.063,4.448 1.115,4.958 1.052,0.51 10 false Oxygen Storage Capacity 3.813,3.927 4.354,4.198 0.542,0.271 10 false Normal 3.052,2.292 4.333,2.625 1.281,0.333 10 false Abnormal (Case 1) 0.063,1.917 1.5,2.167 1.438,0.25 10 false Fuel Injection Volume 1.74,1.677 2.427,1.969 0.688,0.292 10 false Increase 1.688,2.156 2.552,2.406 0.865,0.25 10 false Decrease 1.552,2.594 2.292,3.042 0.74,0.448 10 false Malfunction Threshold 1.594,3.479 2.229,3.969 0.635,0.49 10 false Normal Threshold 5.385,3.708 6.01,4.094 0.625,0.385 10 false Abnormal (Case 2) 1.583,4.323 2.302,4.729 0.719,0.406 10 false Malfunction Threshold


Abnormal Air Fuel Ratio Sensor (Sensor 2) Output Current During Fuel-cut from Rich Condition (DTC P013A7C)


During a fuel cut, if the amount of time it takes for the current of the air fuel ratio sensor (sensor 2) to increase to a certain amount is equal to or greater than the threshold, the responsiveness of the air fuel ratio sensor (sensor 2) is judged as degraded, the ECM illuminates the MIL and stores a DTC.


MONITOR STRATEGY

Required Sensors/Components (Main) Air fuel ratio sensor (sensor 2)
Required Sensors/Components (Related) Crankshaft position sensor
Engine coolant temperature sensor
Mass air flow meter sub-assembly
Throttle position sensor
Air fuel ratio sensor (sensor 1)
Frequency of Operation Once per driving cycle

TYPICAL ENABLING CONDITIONS

P013616: Air Fuel Ratio Sensor (Sensor 2) Output Current Malfunction
Battery voltage 11 V or higher
Intake air temperature -10°C (14°F) or higher
Engine coolant temperature 75°C (167°F) or higher
Atmospheric pressure 76 kPa(abs) [11.02 psi(abs)] or higher
Idling Off
Engine speed Less than 3200 rpm
Air fuel ratio sensor (sensor 1) status Activated
Fuel system status Closed loop
Engine load 10% or higher, and less than 100%

P013A7C: Air Fuel Ratio Sensor (Sensor 2) Response Rate During Fuel Cut from Rich Condition
Battery voltage 11 V or higher
Engine coolant temperature 75°C (167°F) or higher
Catalyst temperature 400°C (752°F) or higher
Fuel cut On

TYPICAL MALFUNCTION THRESHOLDS

P013616: Air Fuel Ratio Sensor (Sensor 2) Output Current Malfunction
Both of the following conditions are met A and B
A. Continuous time of active rich air fuel ratio control*1 0.5 seconds or more
*1: Target air fuel ratio 14.3 or less
B. Either of the following conditions is met (a) or (b)
(a) Air fuel ratio sensor (sensor 2) current 6 mA or more
(b) OSC (Oxygen Storage Capacity) of catalyst More than 2.0 g

P013A7C: Air Fuel Ratio Sensor (Sensor 2) Response Rate during Fuel Cut from Rich Condition
The amount of time it takes for the current of the air fuel ratio sensor (sensor 2) to increase to a certain amount during a fuel cut 0.244 seconds or more

CONFIRMATION DRIVING PATTERN

HINT:
·

This confirmation driving pattern is used for the "Perform Confirmation Driving Pattern" procedure of the following diagnostic troubleshooting procedure.

·

Performing this confirmation driving pattern will activate the air fuel ratio sensor (sensor 2) monitor (the catalyst monitor is performed simultaneously). This is very useful for verifying the completion of a repair.

·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



P013616

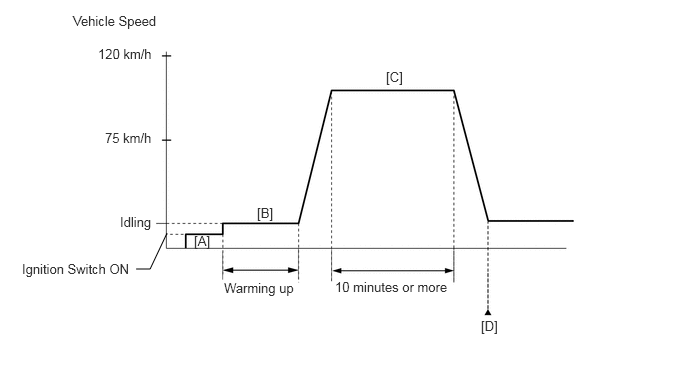

A264212E77
1.74,2.427 1.563,2.802 1.563,2.802 1.417,2.802 false 4.021,0.719 4.25,0.958 0.229,0.24 10 false [C] 3.49,2.906 4.792,3.083 1.302,0.177 10 false 10 minutes or more 1.094,1.354 1.698,1.51 0.604,0.156 10 false 75 km/h 2.021,2.427 2.25,2.625 0.229,0.198 10 false [A] 1.021,0.479 1.677,0.688 0.656,0.208 10 false 120 km/h 1.25,2.229 1.635,2.448 0.385,0.219 10 false Idling 0.229,2.719 1.406,2.99 1.177,0.271 10 false Ignition Switch ON 2.677,2.135 2.906,2.344 0.229,0.208 10 false [B] 2.333,2.917 3.156,3.115 0.823,0.198 10 false Warming up 5.01,3.313 5.271,3.573 0.26,0.26 10 false [D] 0.76,0.135 1.792,0.375 1.031,0.24 10 false Vehicle Speed

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the shift lever in P [B].

9.

Drive the vehicle at 75 to 120 km/h (46 to 75 mph) for 10 minutes or more [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


10.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

11.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P013616.

14.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [C] through [D] again.

·

[B] to [D]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




P013A7C

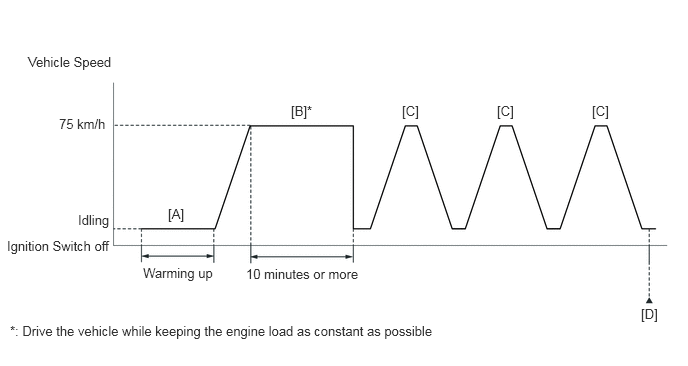

A403645E01
0.292,0.563 2.281,0.76 1.99,0.198 10 false Vehicle Speed 0.615,1.208 2.604,1.406 1.99,0.198 10 false 75 km/h 0.813,2.208 2.802,2.406 1.99,0.198 10 false Idling 0.073,2.479 2.063,2.677 1.99,0.198 10 false Ignition Switch off 1.75,2.146 2.052,2.375 0.302,0.229 10 false [A] 3.031,1.073 3.333,1.302 0.302,0.229 10 false [B]* 4.188,1.073 4.49,1.302 0.302,0.229 10 false [C] 5.177,1.073 5.479,1.302 0.302,0.229 10 false [C] 6.167,1.073 6.469,1.302 0.302,0.229 10 false [C] 6.677,3.188 6.979,3.417 0.302,0.229 10 false [D] 1.49,2.76 3.479,2.958 1.99,0.198 10 false Warming up 2.563,2.771 4.552,2.969 1.99,0.198 10 false 10 minutes or more 0.104,3.365 4.75,3.646 4.646,0.281 10 false *: Drive the vehicle while keeping the engine load as constant as possible

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

8.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the shift lever in P [A].

HINT:

In order to keep the idle stable, turn off the A/C and all other electric loads and do not perform any shift operations.


9.

Drive the vehicle at approximately 75 km/h (46 mph) for 10 minutes or more [B].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

Drive the vehicle while keeping the engine load as constant as possible.


10.

With the shift lever in M or 2nd gear, drive the vehicle at 75 km/h (46 mph), and then decelerate the vehicle by releasing the accelerator pedal for 5 seconds or more to perform the fuel-cut [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


11.

Repeat step [C] 2 times or more in one driving cycle.

12.

Enter the following menus: Powertrain / Engine / Trouble Codes / [D].

13.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



14.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15.

Input the DTC: P013A7C.

16.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, perform steps [C] through [D] again.

·

[A] to [D]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

HINT:

Malfunctioning areas can be identified by performing the Active Test "Control the Injection Volume for A/F Sensor". This Active Test can help to determine whether the air fuel ratio sensors (sensor 1 and sensor 2) and other potential trouble areas are malfunctioning.

The following procedure describes how to perform the Active Test "Control the Injection Volume for A/F Sensor" using the GTS.


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

5.

Warm up the air fuel ratio sensors at an engine speed of 2500 rpm for 90 seconds.

6.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / A/F (O2) Sensor Current B1S1 and A/F (O2) Sensor Current B1S2.

7.

Perform the Active Test with the engine idling (change the fuel injection volume).

8.

Monitor the output current of the air fuel ratio sensor (sensor 1) (A/F (O2) Sensor Current B1S1) and air fuel ratio sensor (sensor 2) (A/F (O2) Sensor Current B1S2) displayed on the GTS.


HINT:
·

The Active Test "Control the Injection Volume for A/F Sensor" can be used to lower the fuel injection volume by 12.5% or increase the injection volume by 12.5%.

·

Each sensor reacts in accordance with the increase and decrease in the fuel injection volume.



Standard
GTS Display (Sensor) Injection Volume Status Current
A/F (O2) Sensor Current B1S1
(Air fuel ratio sensor (sensor 1)) 		12.5% Rich Below -0.075 mA
-12.5% Lean More than 0.037 mA
A/F (O2) Sensor Current B1S2
(Air fuel ratio sensor (sensor 2)) 		12.5% Rich Below -0.86 mA
-12.5% Lean More than 0.33 mA

NOTICE:

The air fuel ratio sensor (sensor 1) has an output delay of a few seconds and the air fuel ratio sensor (sensor 2) has a maximum output delay of approximately 20 seconds.


A392732E02
0.135,0.802 0.531,1.01 0.396,0.208 10 false Case 0.906,0.688 2.958,1.115 2.052,0.427 10 false Air Fuel Ratio Sensor (Sensor 1) Output Current 3.542,0.708 5.594,1.115 2.052,0.406 10 false Air Fuel Ratio Sensor (Sensor 2) Output Current 5.99,0.729 6.99,1.104 1,0.375 10 false Main Suspected Trouble Area 0.24,2.24 0.563,2.448 0.323,0.208 10 false 1 0.667,1.385 1.896,1.583 1.229,0.198 10 false Injection Volume 1.417,1.729 1.969,1.948 0.552,0.219 10 false 12.5% 1.365,1.938 2.021,2.156 0.656,0.219 10 false -12.5% 0.688,2.354 1.823,2.594 1.135,0.24 10 false Output Current 0.635,2.729 1.99,2.958 1.354,0.229 10 true More than 0.037 mA 0.833,2.958 1.906,3.167 1.073,0.208 10 true Below -0.075 mA 2.677,2.865 3.083,3.052 0.406,0.188 10 false OK 5.302,2.844 5.708,3.031 0.406,0.188 10 false OK 3.375,2.344 4.5,2.552 1.125,0.208 10 false Output Current 3.292,2.656 4.833,2.875 1.542,0.219 10 false More than 0.33 mA 3.49,2.938 4.75,3.167 1.26,0.229 10 false Below -0.86 mA 6.385,2.302 6.708,2.51 0.323,0.208 10 false - 0.229,4.365 0.552,4.573 0.323,0.208 10 false 2 5.25,4.906 5.656,5.094 0.406,0.188 10 false OK 2.667,4.833 3.073,5.021 0.406,0.188 10 false NG 0.625,4.823 2.094,5.083 1.469,0.26 10 false Almost no reaction 5.896,3.615 7.094,4.021 1.198,0.406 10 false Air fuel ratio sensor (sensor 1) 5.885,4.198 7.094,4.563 1.208,0.365 10 false Air fuel ratio sensor (sensor 1) heater 5.885,4.833 7.083,5.208 1.198,0.375 10 false Air fuel ratio sensor (sensor 1) circuit 5.802,3.615 6.125,3.823 0.323,0.208 10 false - 5.802,4.198 6.125,4.406 0.323,0.208 10 false - 5.792,4.833 6.115,5.042 0.323,0.208 10 false - 5.26,6.885 5.667,7.073 0.406,0.188 10 false NG 2.688,7 3.094,7.188 0.406,0.188 10 false OK 5.802,5.677 6.135,5.885 0.333,0.208 10 false - 5.792,6.281 6.125,6.49 0.333,0.208 10 false - 5.792,6.885 6.125,7.094 0.333,0.208 10 false - 5.24,8.948 5.646,9.135 0.406,0.188 10 false NG 2.646,8.948 3.052,9.135 0.406,0.188 10 false NG 6.021,7.969 6.99,8.292 0.969,0.323 10 false Fuel system 6.01,8.552 7.052,9.344 1.042,0.792 10 false Gas leak from exhaust system 5.917,7.969 6.25,8.177 0.333,0.208 10 false - 5.906,8.563 6.24,8.771 0.333,0.208 10 false - 3.344,1.385 4.573,1.583 1.229,0.198 10 false Injection Volume 0.677,3.469 1.906,3.667 1.229,0.198 10 false Injection Volume 3.333,3.49 4.563,3.688 1.229,0.198 10 false Injection Volume 0.698,4.354 1.833,4.594 1.135,0.24 10 false Output Current 3.406,4.354 4.531,4.563 1.125,0.208 10 false Output Current 3.313,4.771 4.854,4.99 1.542,0.219 10 false More than 0.33 mA 3.521,5.052 4.781,5.281 1.26,0.229 10 false Below -0.86 mA 3.26,6.865 4.729,7.125 1.469,0.26 10 false Almost no reaction 0.667,5.552 1.896,5.75 1.229,0.198 10 false Injection Volume 3.313,5.542 4.542,5.74 1.229,0.198 10 false Injection Volume 0.708,7.615 1.938,7.813 1.229,0.198 10 false Injection Volume 3.323,7.615 4.552,7.813 1.229,0.198 10 false Injection Volume 0.646,8.917 2.115,9.177 1.469,0.26 10 false Almost no reaction 3.292,8.917 4.76,9.177 1.469,0.26 10 false Almost no reaction 0.729,6.479 1.865,6.719 1.135,0.24 10 false Output Current 0.708,8.542 1.844,8.781 1.135,0.24 10 false Output Current 3.385,6.438 4.51,6.646 1.125,0.208 10 false Output Current 3.406,8.542 4.531,8.75 1.125,0.208 10 false Output Current 5.896,5.667 7.094,6.073 1.198,0.406 10 false Air fuel ratio sensor (sensor 2) 5.875,6.281 7.083,6.646 1.208,0.365 10 false Air fuel ratio sensor (sensor 2) heater 5.875,6.885 7.073,7.26 1.198,0.375 10 false Air fuel ratio sensor (sensor 2) circuit 4.031,1.688 4.583,1.906 0.552,0.219 10 false 12.5% 4,1.906 4.656,2.125 0.656,0.219 10 false -12.5% 1.396,3.771 1.948,3.99 0.552,0.219 10 false 12.5% 1.354,3.969 2.01,4.188 0.656,0.219 10 false -12.5% 4,3.781 4.552,4 0.552,0.219 10 false 12.5% 3.958,3.979 4.615,4.198 0.656,0.219 10 false -12.5% 1.396,5.833 1.948,6.052 0.552,0.219 10 false 12.5% 1.354,6.031 2.01,6.25 0.656,0.219 10 false -12.5% 3.958,5.854 4.51,6.073 0.552,0.219 10 false 12.5% 3.917,6.052 4.573,6.271 0.656,0.219 10 false -12.5% 1.385,7.875 1.938,8.094 0.552,0.219 10 false 12.5% 1.333,8.083 1.99,8.302 0.656,0.219 10 false -12.5% 3.948,7.885 4.5,8.104 0.552,0.219 10 false 12.5% 3.906,8.094 4.563,8.313 0.656,0.219 10 false -12.5% 0.229,6.365 0.552,6.573 0.323,0.208 10 false 3 0.24,8.406 0.563,8.615 0.323,0.208 10 false 4 0.625,6.844 1.969,7.052 1.344,0.208 10 true More than 0.037 mA 0.823,7.083 1.885,7.313 1.063,0.229 10 true Below -0.075 mA

Performing the Active Test "Control the Injection Volume for A/F Sensor" allows the output value of the air fuel ratio sensors (sensor 1 and sensor 2) to be checked and graphed.

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


HINT:
·

Sensor 1 refers to the sensor closest to the engine assembly.

·

Sensor 2 refers to the sensor farthest away from the engine assembly.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P013616 AND P013A7C)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P013616 is output A
DTC P013A7C is output B
DTC P013616 or P013A7C and other DTCs are output C


HINT:

If any DTCs other than P013616 or P013A7C are output, troubleshoot those DTCs first.




A

2.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)

B

14.CHECK FOR EXHAUST GAS LEAK

C

GO TO DTC CHART

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.PERFORM ACTIVE TEST USING GTS (CONTROL THE INJECTION VOLUME FOR A/F SENSOR)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.


e.

Warm up the air fuel ratio sensors at an engine speed of 2500 rpm for 90 seconds.


f.

Enter the following menus: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / Data List / Coolant Temperature, A/F (O2) Sensor Current B1S1 and A/F (O2) Sensor Current B1S2.

Powertrain > Engine > Active Test
Active Test Display
Control the Injection Volume for A/F Sensor
Data List Display
Coolant Temperature
A/F (O2) Sensor Current B1S1
A/F (O2) Sensor Current B1S2
50004 372 8 205,230,564

g.

Perform the Control the Injection Volume for A/F Sensor operation with the engine idling.


h.

Monitor the output values of the air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2) (A/F (O2) Sensor Current B1S1 and A/F (O2) Sensor Current B1S2) displayed on the GTS.

HINT:
·

The Control the Injection Volume for A/F Sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 12.5%.

·

The air fuel ratio sensor (sensor 1) has an output delay of a few seconds and the air fuel ratio sensor (sensor 2) has a maximum output delay of approximately 20 seconds.

·

If the sensor output value does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.



Standard
GTS Display (Sensor) Injection Volume Status Current
A/F (O2) Sensor Current B1S1
(Air fuel ratio (sensor 1)) 		12.5% Rich Below -0.075 mA
-12.5% Lean More than 0.037 mA
A/F (O2) Sensor Current B1S2
(Air fuel ratio (sensor 2)) 		12.5% Rich Below -0.86 mA
-12.5% Lean More than 0.33 mA

Result:
Status of A/F (O2) Sensor Current B1S1 Status of A/F (O2) Sensor Current B1S2 Suspected Trouble Area Proceed to
Lean/Rich Lean/Rich
·

Air fuel ratio sensor (sensor 2)


A
Lean Lean
·

Gas leak from exhaust system

·

EGR valve assembly

·

Extremely lean actual air fuel ratio

·

Air fuel ratio sensor (sensor 2)


B
Rich Rich
·

Gas leak from exhaust system

·

EGR valve assembly

·

Extremely rich actual air fuel ratio

·

Air fuel ratio sensor (sensor 2)


Lean/Rich Lean
·

Air fuel ratio sensor (sensor 2)

·

Gas leak from exhaust system


C
Lean/Rich Rich
·

Air fuel ratio sensor (sensor 2)

·

Gas leak from exhaust system


Lean Lean/Rich
·

Air fuel ratio sensor (sensor 1)

·

Air fuel ratio sensor (sensor 2)


D
Rich Lean/Rich
·

Air fuel ratio sensor (sensor 1)

·

Air fuel ratio sensor (sensor 2)




Lean: During the Control the Injection Volume for A/F Sensor Active Test, the air fuel ratio sensor (sensor 1) output current (A/F (O2) Sensor Current B1S1) is consistently more than 0.037 mA, and the air fuel ratio sensor (sensor 2) output current (A/F (O2) Sensor Current B1S2) is consistently more than 0.33 mA.

Rich: During the Control the Injection Volume for A/F Sensor Active Test, the air fuel ratio sensor (sensor 1) output current (A/F (O2) Sensor Current B1S1) is consistently below -0.075 mA, and the air fuel ratio sensor (sensor 2) output current (A/F (O2) Sensor Current B1S2) is consistently below -0.86 mA.

Lean/Rich: During the Control the Injection Volume for A/F Sensor Active Test, the output current of the air fuel ratio sensor (sensor 1) or air fuel ratio sensor (sensor 2) alternate correctly.


HINT:

Refer to "Data List / Active Test" [A/F (O2) Sensor Current B1S1, A/F (O2) Sensor Current B1S2].

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST




A

3.REPLACE AIR FUEL RATIO SENSOR (SENSOR 2)

B

6.CHECK FOR EXHAUST GAS LEAK

C

10.CHECK FOR EXHAUST GAS LEAK

D

11.REPLACE AIR FUEL RATIO SENSOR (SENSOR 1)
4.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

5.CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
5.CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P013616.


d.

Check the DTC judgment result.

Result
GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions




Result:
Proceed to
NEXT



NEXT

END

6.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the exhaust system.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

7.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

NG

REPAIR OR REPLACE EXHAUST SYSTEM

7.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



e.

Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Engine Speed, Intake Manifold Absolute Pressure and Coolant Temperature.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Engine Speed
Intake Manifold Absolute Pressure
Coolant Temperature
50004 372 25 211,385,205

f.

Check the engine idling condition and Intake Manifold Absolute Pressure values in the Data List while performing the Active Test.

NOTICE:
·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure and Engine Speed change in response to EGR step position.


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Idling condition Steady idling Idling changes from steady to rough idling or engine stalls
Intake Manifold Absolute Pressure
(Data List) 		Intake Manifold Absolute Pressure value is 18 to 38 kPa(abs) (2.6 to 5.5 psi(abs))
(EGR valve is fully closed) 		Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed


HINT:

During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in the EGR valve.



Result:
Proceed to
OK
NG



OK

9.CHECK CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO

NG

8.INSPECT EGR VALVE ASSEMBLY
8.INSPECT EGR VALVE ASSEMBLY
a.

Remove the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.


HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

9.CHECK CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO

NG

REPLACE EGR VALVE ASSEMBLY

Click hereEngine / Hybrid System>M20D-FKS (EMISSION CONTROL)>EGR VALVE>REMOVAL


9.CHECK CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO
a.

Check the cause of extremely rich or lean actual air fuel ratio, referring to the DTC P017100 and P017200 Inspection Procedure.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>P017100


Result:
Proceed to
NEXT



NEXT

12.CLEAR DTC
12.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

13.CHECK WHETHER DTC OUTPUT RECURS (DTC P013616)
13.CHECK WHETHER DTC OUTPUT RECURS (DTC P013616)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P013616.


d.

Check that the DTC judgment result is NORMAL. If the DTC judgment result is INCOMPLETE, perform the confirmation drive pattern again but increase the vehicle speed.

Result:
Result Proceed to
NORMAL
(DTCs are not output) 		A
ABNORMAL
(DTC P013616 is output) 		B



HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 2).

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



A

END

B

REPLACE AIR FUEL RATIO SENSOR (SENSOR 2)

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>AIR FUEL RATIO SENSOR>REMOVAL


14.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the exhaust system.

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

15.CLEAR DTC

NG

REPAIR OR REPLACE EXHAUST SYSTEM

15.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

16.CHECK WHETHER DTC OUTPUT RECURS (DTC P013A7C)
16.CHECK WHETHER DTC OUTPUT RECURS (DTC P013A7C)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

c.

Input the DTC: P013A7C.


d.

Check that the DTC judgment result is NORMAL. If the DTC judgment result is INCOMPLETE, perform the confirmation drive pattern again but increase the vehicle speed.

Result:
Result Proceed to
NORMAL
(DTCs are not output) 		A
ABNORMAL
(DTC P013A7C is output) 		B



HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 2).

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



A

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


B

REPLACE AIR FUEL RATIO SENSOR (SENSOR 2)

Click hereEngine / Hybrid System>M20D-FKS (ENGINE CONTROL)>AIR FUEL RATIO SENSOR>REMOVAL
