BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS STEERING ANGLE SENSOR INSTALLATION
CAUTION / NOTICE / HINT
- NOTICE:
- ·
A lock pin is installed to a new steering sensor. Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
·After replacing the steering sensor, make sure to perform update ECU security key.
·After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
PROCEDURE
84306
1.INSPECT SPIRAL CABLE SUB-ASSEMBLY
89245C
2.INSTALL STEERING SENSOR

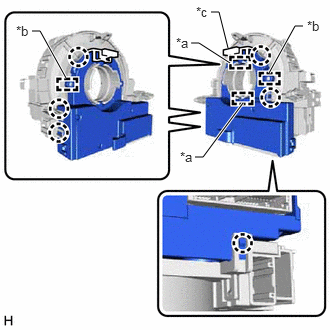

| *a | Guide |
| *b | Pin |
| *c | Lock Pin |
Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
- NOTICE:
- ·
Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
·Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.
·The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.

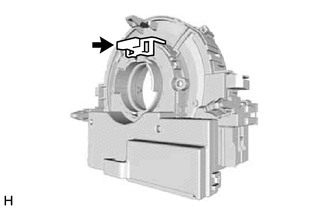

Remove the lock pin from the steering sensor.
3.INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
45286B
4.INSTALL UPPER STEERING COLUMN COVER
45287
5.INSTALL LOWER STEERING COLUMN COVER
6. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
7.INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
45100
8.INSTALL STEERING WHEEL ASSEMBLY
45130
9.INSTALL HORN BUTTON ASSEMBLY
10.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF_03_0002,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG_03_0002,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI_03_0002,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ_03_0002,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK_03_0002,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8_01_0029,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L,
11. UPDATE ECU SECURITY KEY (except NR Series Engine)
45130
12.INSPECT HORN BUTTON ASSEMBLY
Make sure that the horn sounds.
If the horn does not sound, inspect the horn system.
13. PERFORM DIAGNOSTIC SYSTEM CHECK
14.INSPECT SRS WARNING LIGHT
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,
15.CHECK STEERING WHEEL CENTER POINT
16. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
17.PERFORM INITIALIZATION
