RM3660EC _58 Vehicle Interior _080744 INTERIOR PANELS / TRIM _0393716 INSTRUMENT PANEL SAFETY PAD A

INTERIOR PANELS / TRIM INSTRUMENT PANEL SAFETY PAD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel safety pad removal/installation are shown below.

CAUTION:: Be sure to read Precaution thoroughly before servicing.; except NR Series Engine:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,; for NR Series Engine:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

PROCEDURE

Hide Display 1. PRECAUTION

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>PRECAUTION202307,999999,_58,_080744,_0393716,RM100000002D3ST,

Hide Display 2.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 45130 3.REMOVE HORN BUTTON ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL202307,999999,_58,_080741,_0392902,RM100000002CWLY,

Hide Display 4.REMOVE STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL202307,999999,_55,_080762,_0391590,RM100000002DAHG_02_0006,

Hide Display 45287 5.REMOVE LOWER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0114,

Hide Display 45286B 6.REMOVE UPPER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0099,

Hide Display 84650 7.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>WIPER SWITCH>REMOVAL201906,999999,_59,_080767,_0392875,RM100000001HTNW_01_0024,

Hide Display 84329 8.REMOVE TURN SIGNAL SWITCH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT DIMMER SWITCH>REMOVAL201906,999999,_59,_080784,_0393169,RM100000001HW62_01_0041,

Hide Display 58810J 9.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF,

Hide Display 67914 10.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0001,

Hide Display 62112A 11.REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0268,

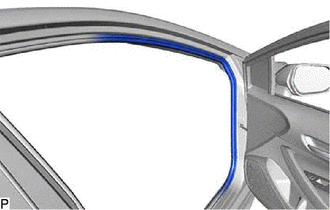

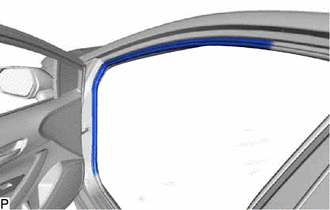

Hide Display 62312B 12.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Disconnect the front door opening trim weatherstrip LH.

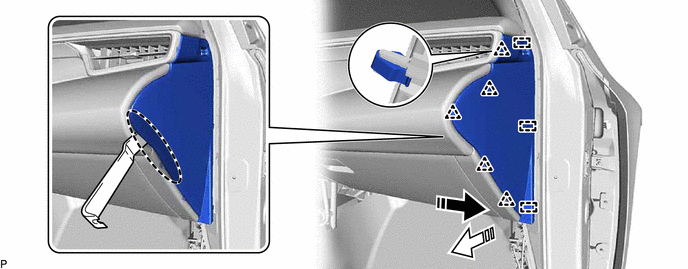

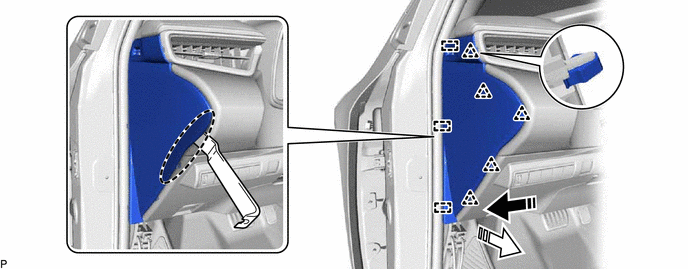

Hide Display 55317E 13.REMOVE NO. 1 INSTRUMENT SIDE PANEL

w/ Upper Instrument Panel:

Using a moulding remover, pull the No. 1 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 clips.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Pull the No. 1 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 guides and remove it.

w/o Upper Instrument Panel:

Using a moulding remover, pull the No. 1 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 clips and 3 claws.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Pull the No. 1 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 guides and remove it.

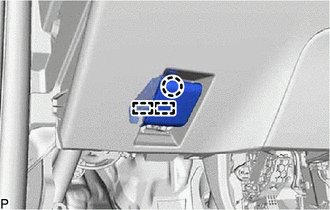

Hide Display 53601 14.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Disengage the claw and 2 guides to disconnect the hood lock control lever sub-assembly.

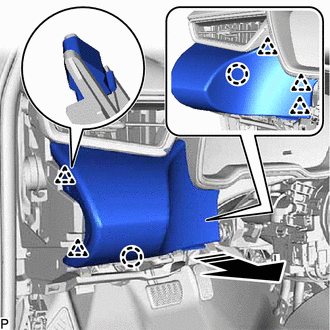

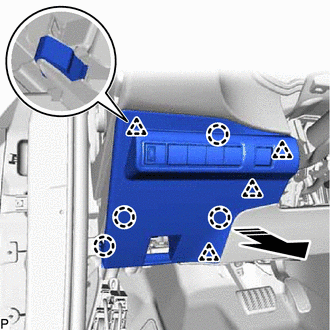

Hide Display 55432B 15.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

w/o Knee Airbag:

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws and 4 clips as shown in the illustration.

w/ Knee Airbag:

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws and 4 clips as shown in the illustration.

Disengage the clamp.

Disconnect each connector to remove the lower instrument panel finish panel.

Hide Display 55403F 16.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and 5 clips as shown in the illustration to remove the instrument panel finish panel sub-assembly.

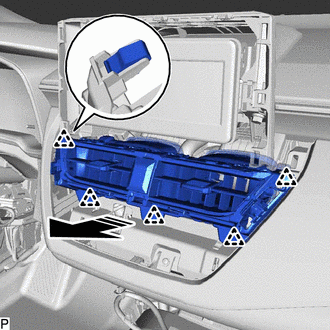

Hide Display 55405B 17.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips and 2 guides as shown in the illustration to remove the center instrument cluster finish panel sub-assembly.

Hide Display 55405B 18.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips as shown in the illustration to remove the center instrument cluster finish panel sub-assembly.

Hide Display 55900 19.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202304,999999,_58,_080733,_0393743,RM100000002B1IV_01_0144,

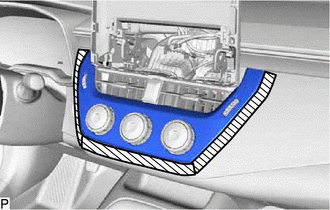

Hide Display 20.REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

Apply protective tape to the area shown in the illustration.

0,0 0,0 false

	Insert Moulding Remover Here
	Remove in this Direction

Using a moulding remover, disengage the 7 clips as shown in the illustration to remove the lower center instrument cluster finish panel sub-assembly.

Hide Display 73900 21.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202307,999999,_58,_080741,_0392904,RM100000002D3D7_01_0001,

Hide Display 67913 22.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62111C 23.REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62311B 24.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Disconnect the front door opening trim weatherstrip RH.

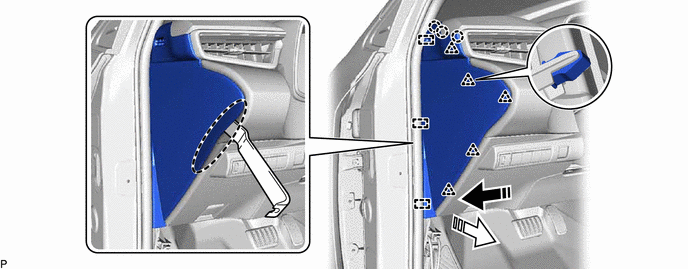

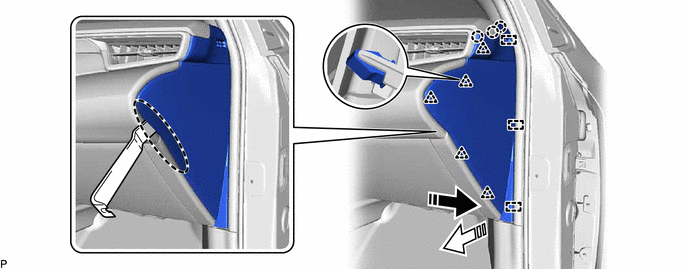

Hide Display 55318F 25.REMOVE NO. 2 INSTRUMENT SIDE PANEL

w/ Upper Instrument Panel:

Using a moulding remover, pull the No. 2 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 clips.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Pull the No. 2 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 guides and remove it.

w/o Upper Instrument Panel:

Using a moulding remover, pull the No. 2 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 5 clips and 3 claws.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

ii.

Pull the No. 2 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 guides and remove it.

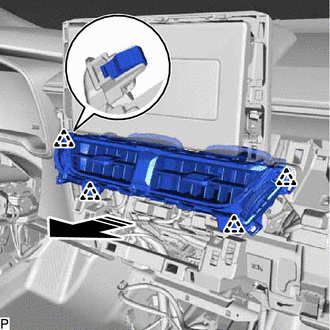

Hide Display 55670A 26.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

0,0 0,0 false

Remove in this Direction

Disengage the 5 clips as shown in the illustration.

Disconnect the connector to remove the center instrument panel register assembly.

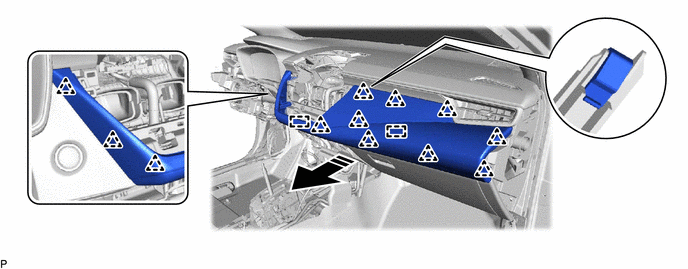

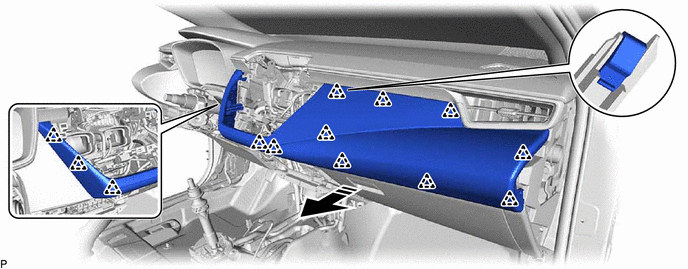

Hide Display 55470 27.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

for TFTM Made:

Disengage the 13 clips as shown in the illustration to remove the instrument cluster finish panel garnish assembly.

0,0 0,0 false

Remove in this Direction

for GTMC Made:

Remove the screw <E>.

ii.

Disengage the 12 clips and 2 guides as shown in the illustration to remove the instrument cluster finish panel garnish assembly.

0,0 0,0 false

Remove in this Direction

Hide Display 55670A 28.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips as shown in the illustration.

Disconnect the connector to remove the center instrument panel register assembly.

Hide Display 29.REMOVE CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202304,999999,_58,_080733,_0393743,RM100000002B1IV_01_0152,

Hide Display 30.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL202304,999999,_56,_080751,_0392316,RM100000002AINP_01_0158,

Hide Display 31.REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL202304,202502,_56,_080752,_0391866,RM100000002B050_01_0061,202502,999999,_56,_080752,_0391866,RM100000002R2M8_01_0061,

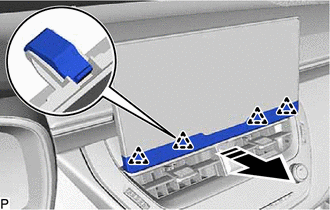

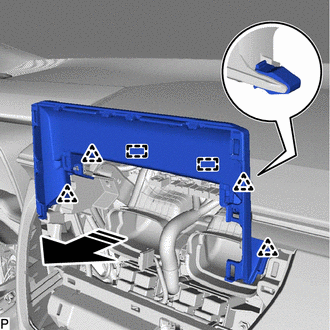

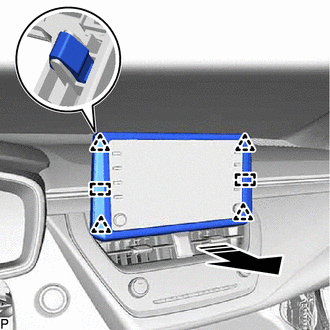

Hide Display 55422C 32.REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL (except 10.25 Inch Display)

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips and 2 guides as shown in the illustration to remove the center upper instrument cluster finish panel.

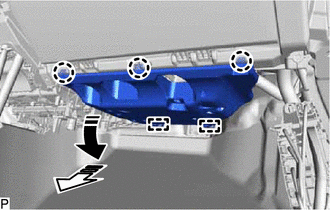

Hide Display 55607 33.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Disengage the 3 claws and 2 guides as shown in the illustration to remove the No. 2 instrument panel under cover sub-assembly.

w/ Illumination:

Disconnect the connector.

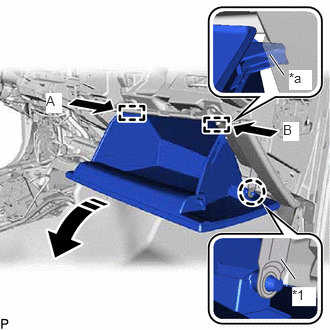

Hide Display 55550 34.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

2.958,0.781 2.813,0.573 true 3.073,2.906 2.927,2.698 true 3.042,2.99 3.292,3.188 0.25,0.198 10 true *1 3.01,0.729 3.25,0.938 0.24,0.208 10 true *a 0.479,0.969 0.646,1.177 0.167,0.208 10 true A 2.948,1.271 3.115,1.469 0.167,0.198 10 true B

*1	Glove Compartment Door Stopper Sub-assembly
*a	Stopper
	Remove in this Direction

Disengage the claw to disconnect the glove compartment door stopper sub-assembly.

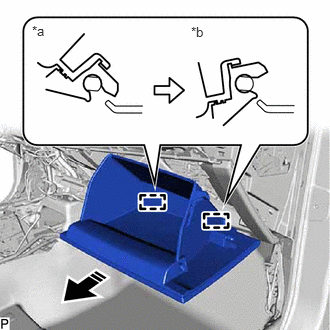

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and open the glove compartment door assembly until the stoppers are released.

0.333,0.24 0.646,0.396 0.313,0.156 10 false *a 1.99,0.25 2.302,0.406 0.313,0.156 10 false *b

*a	Closed
*b	Open Approximately 57°
	Remove in this Direction

Open the glove compartment door assembly to approximately 57° from its closed position. Pull it horizontally in the direction indicated by the arrow to disengage the 2 hinges and remove the glove compartment door assembly.

NOTICE:: Pulling the glove compartment door assembly upward to remove it causes the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.

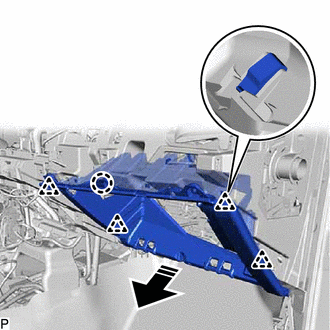

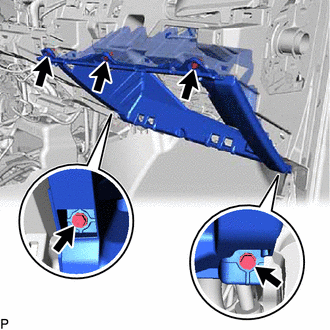

Hide Display 55433B 35.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Remove the 5 screws <E>.

0,0 0,0 false

Remove in this Direction

Disengage the claw and 4 clips as shown in the illustration.

Disconnect the connector to remove the lower No. 2 instrument panel finish panel.

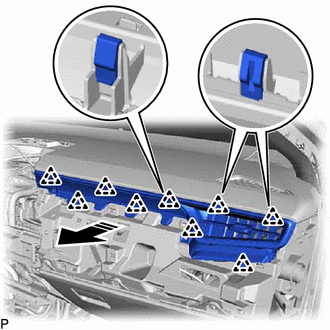

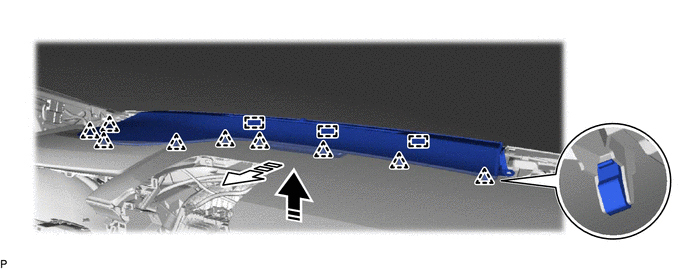

Hide Display 55011A 36.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

Disengage the 9 clips as shown in the illustration to remove the No. 1 instrument panel garnish sub-assembly.

Hide Display 62211 37.REMOVE FRONT PILLAR GARNISH RH

HINT:: Use the same procedure as for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0009,

Hide Display 55473B 38.REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL

Using a moulding remover, pull the No. 2 instrument panel speaker panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws and 2 clips.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

Pull the No. 2 instrument panel speaker panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove it.

for Panel with Speaker:

Disconnect the connector.

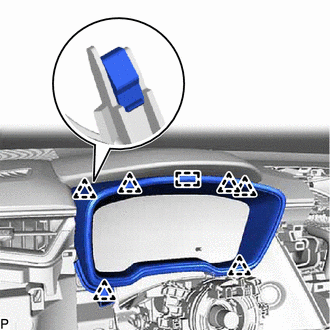

Hide Display 55410C 39.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Disengage the 6 clips and guide to remove the instrument cluster finish panel assembly.

Hide Display 55413D 40.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

0,0 0,0 false

Remove in this Direction

Disengage the 4 clips as shown in the illustration to remove the center lower instrument cluster finish panel.

w/ Smart Entry and Start System:

Disconnect the connector.

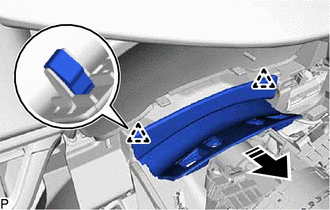

Hide Display 55416C 41.REMOVE INSTRUMENT CLUSTER FINISH PANEL RETAINER

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips as shown in the illustration to remove the instrument cluster finish panel retainer.

Hide Display 83100 42.REMOVE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202304,999999,_58,_080793,_0393111,RM100000002AUPM_01_0005,

Hide Display 55475A 43.REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

0,0 0,0 false

Remove in this Direction

Disengage the 5 clips as shown in the illustration to remove the No. 2 instrument cluster finish panel garnish.

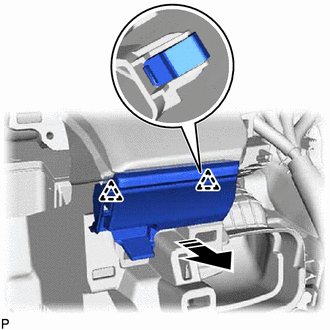

Hide Display 55474B 44.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

0,0 0,0 false

Remove in this Direction

Disengage the 2 clips as shown in the illustration to remove the instrument cluster finish panel garnish.

Hide Display 62212 45.REMOVE FRONT PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0009,

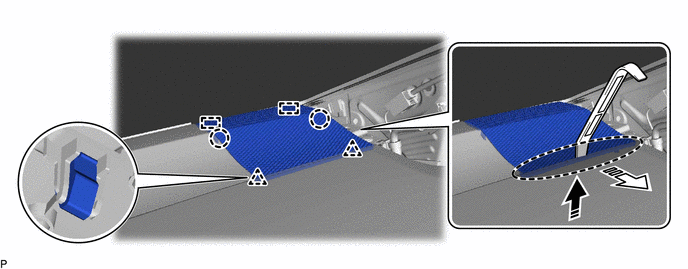

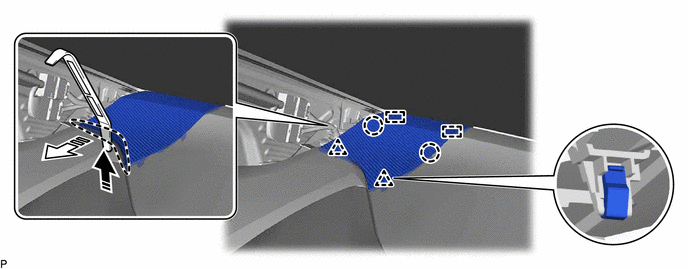

Hide Display 55472C 46.REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL

Using a moulding remover, pull the No. 1 instrument panel speaker panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws and 2 clips.

0,0 0,0 false

	Insert Moulding Remover Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

Pull the No. 1 instrument panel speaker panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove it.

for Panel with Speaker:

Disconnect the connector.

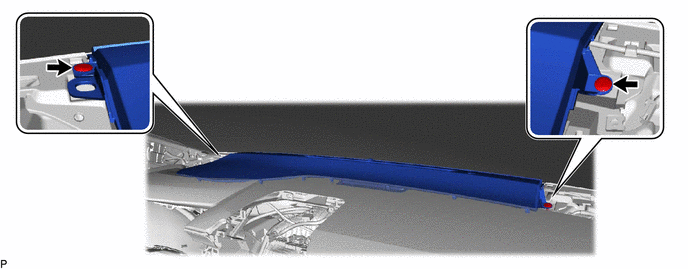

Hide Display 55300 47.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY (w/ Upper Instrument Panel)

Remove the 2 clips.

Pull the upper instrument panel assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 9 clips.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

Pull the upper instrument panel assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 guides.

Disconnect the connector to remove the upper instrument panel assembly.

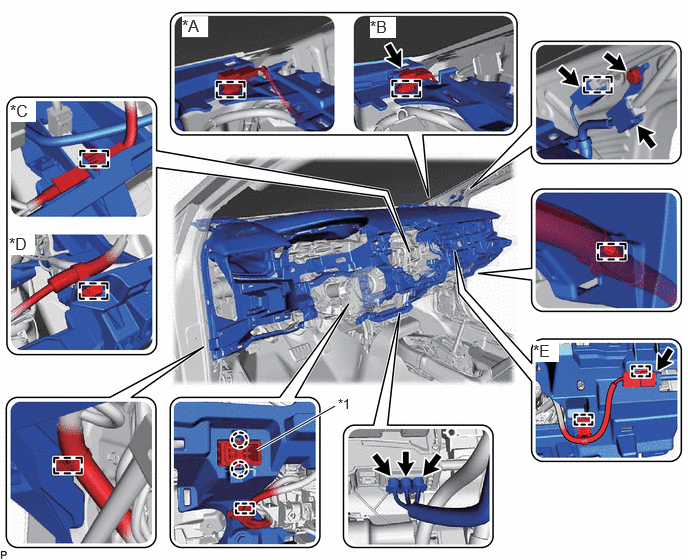

Hide Display 82142 48.DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT PASSENGER AIRBAG ASSEMBLY>REMOVAL202307,202502,_58,_080741,_0392905,RM100000002D3FT_01_0017,202502,999999,_58,_080741,_0392905,RM100000002QS4A_01_0017,

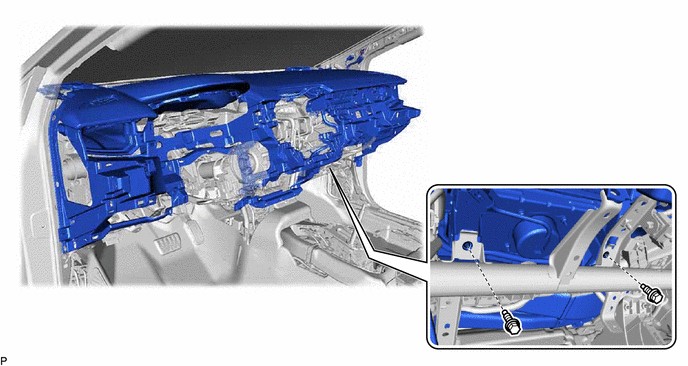

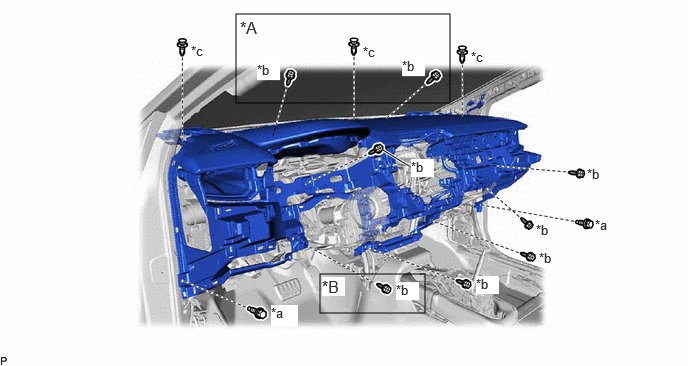

Hide Display 49.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor.

2.677,4.688 3.49,4.229 true 3.521,4.125 3.833,4.323 0.313,0.198 10 false *1 1.896,0.167 2.167,0.385 0.271,0.219 12 true *A 3.854,0.177 4.125,0.396 0.271,0.219 12 true *B 0.104,1.052 0.375,1.271 0.271,0.219 12 true *C 0.094,2.438 0.365,2.656 0.271,0.219 12 true *D 5.552,3.552 5.823,3.771 0.271,0.219 12 true *E

*A	w/ Upper Instrument Panel	*B	w/o Upper Instrument Panel
*C	for Type A	*D	for Type B
*E	w/ Ion Generator	-	-
*1	Cooler (Room Temp. Sensor) Thermistor	-	-

Disconnect each connector.

Disengage each clamp.

Remove the bolt <C>.

Remove the 2 bolts <A>.

Remove each clip.

3.333,2.854 4.427,3.26 1.094,0.406 2.458,0.146 4.688,1.073 2.229,0.927 4.26,1.729 3.99,1.563 true 2.823,3.177 3.104,3.406 0.281,0.229 10 true *a 4.125,2.938 4.365,3.125 0.24,0.188 10 true *b 1.99,0.448 2.302,0.604 0.313,0.156 10 false *c 6.198,2.26 6.479,2.49 0.281,0.229 10 false *a 4.958,2.875 5.198,3.063 0.24,0.188 10 true *b 5.615,2.604 5.854,2.792 0.24,0.188 10 false *b 5.583,2.313 5.823,2.5 0.24,0.188 10 false *b 6.115,1.729 6.354,1.917 0.24,0.188 10 false *b 4.188,0.604 4.427,0.792 0.24,0.188 10 true *b 2.677,0.646 2.917,0.833 0.24,0.188 10 true *b 4.281,1.656 4.521,1.844 0.24,0.188 10 true *b 3.781,0.458 4.094,0.615 0.313,0.156 10 false *c 4.906,0.51 5.219,0.667 0.313,0.156 10 false *c 3.354,2.885 3.594,3.083 0.24,0.198 12 true *B 2.5,0.188 2.74,0.385 0.24,0.198 12 false *A

*A	w/ Upper Instrument Panel	*B	w/ Screw
*a	Bolt <B>	*b	Screw <D>
*c	Clip	-	-

Remove the 2 bolts <B> and each screw <D>.

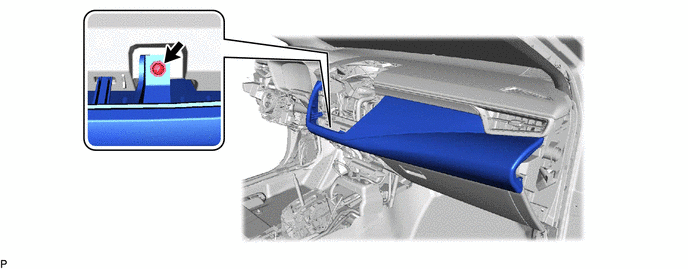

Disengage the 2 guides and remove the instrument panel safety pad sub-assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

NOTICE:: ·

Do not damage the instrument panel safety pad sub-assembly.

·

Do not allow the wire harnesses to interfere with the surrounding parts.
