SUPPLEMENTAL RESTRAINT SYSTEMS FRONT PASSENGER AIRBAG ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel passenger airbag assembly removal/installation are shown below.
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven (for HV Model) Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (
202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
Learning completes when vehicle is driven (for Gasoline Model) Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System Perform steering sensor zero point calibration ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
PROCEDURE
1. PRECAUTION
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
-
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,
-
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,
- NOTICE:
-
After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
55300
2.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY (w/ Upper Instrument Panel)
82142A
3.DISCONNECT NO. 2 INSTRUMENT PANEL WIRE
Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
- CAUTION:
- for NR Series:·
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- except NR Series:·
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
for NR Series Engine:
Disconnect the No. 2 instrument panel wire.
- NOTICE:
-
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
except NR Series Engine:
Disconnect the No. 2 instrument panel wire.
- NOTICE:
-
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
4.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
73960A
5.REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (for NR Series Engine)
- CAUTION:
-
0.917,0.938 1.063,1.125 0.146,0.188 10 false .
Deployment Side
-

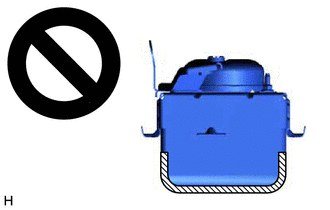

When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
Remove the 2 screws.
| *a | Passenger Airbag Door Retainer |
|
Move the screwdriver in this Direction |

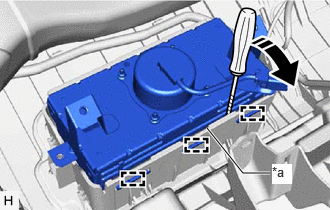

Using a screwdriver, pry back the passenger airbag door retainer to disengage the 3 hooks as shown in the illustration.
- NOTICE:
-
Do not damage the deployment surface of the instrument panel passenger airbag assembly.
Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
73960A
6.REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (except NR Series Engine)
- CAUTION:
-
0.917,0.938 1.063,1.125 0.146,0.188 10 false .
Deployment Side
-
When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
Remove the 2 screws.
| *a | Passenger Airbag Door Retainer |
|
|
Move the screwdriver in this Direction |

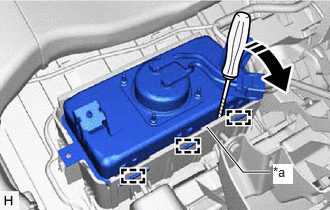

Using a screwdriver, pry back the passenger airbag door retainer to disengage the 3 hooks as shown in the illustration.
- NOTICE:
-
Do not damage the deployment surface of the instrument panel passenger airbag assembly.
Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.
82142A
7.REMOVE NO. 2 INSTRUMENT PANEL WIRE (for NR Series Engine)
Disengage the clamp.
Disconnect the 2 airbag connectors to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
- NOTICE:
-
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
82142A
8.REMOVE NO. 2 INSTRUMENT PANEL WIRE (except NR Series Engine)
Disengage the clamp.
Disconnect the airbag connector to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.
- NOTICE:
-
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
- HINT:
-
Refer to How to Connect or Disconnect Airbag Connector.
