RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392548 FRONT BUMPER(for TFTM Made) A

EXTERIOR PANELS / TRIM  FRONT BUMPER(for TFTM Made)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front bumper assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedures Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Front television camera assembly*

·

Front bumper assembly*

·

Radiator grille sub-assembly*


Front television camera view adjustment Panoramic View Monitor System (Click here)
Replacement or removal and installation of 2 or more parts:
·

Front television camera assembly, radiator grille sub-assembly or front bumper assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH

·

Rear television camera assembly


Television camera view adjustment Panoramic View Monitor System (Click here)

CAUTION / NOTICE / HINT

HINT:
except NR Series Engine:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

for Target Adjustment (Triangle Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(TRIANGLE TARGET)

for Target Adjustment (Flat Surface Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(FLAT SURFACE TARGET)

for Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>DRIVING ADJUSTMENT


HINT:
for NR Series Engine:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform millimeter wave radar sensor adjustment.

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (for NR Series Engine)>ADJUSTMENT


CAUTION / NOTICE / HINT

HINT:
w/ Parking Support Brake System:

When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION



PROCEDURE

Hide 53289A 1.REMOVE RADIATOR SUPPORT OPENING COVER (for Gasoline Model)

a.

for NR Series Engine:

i.

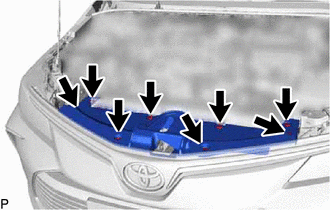

B545160

Remove the 8 clips.


ii.

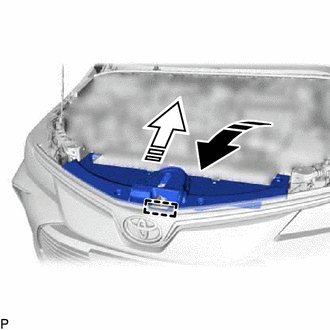

B545161C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the guide as shown in the illustration to remove the radiator support opening cover.



b.

except NR Series Engine:

i.

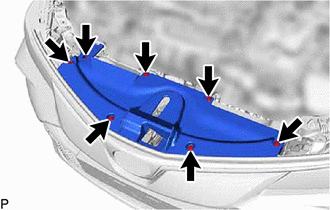

B677804

Remove the 7 clips.


ii.

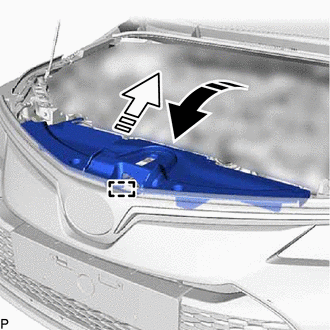

B677805C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the guide as shown in the illustration to remove the radiator support opening cover.



Hide 53289A 2.REMOVE RADIATOR SUPPORT OPENING COVER (for HV Model)

a.

for COROLLA:

i.

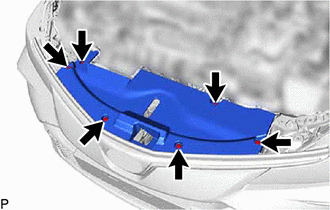

B677806

Remove the 6 clips.


ii.

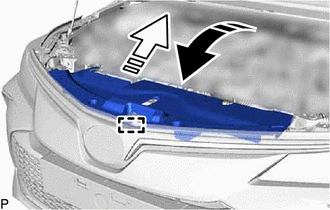

B677807C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the guide as shown in the illustration to remove the radiator support opening cover.



b.

for ALLION:

i.

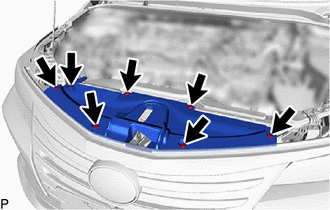

B689933

Remove the 7 clips.


ii.
B689934C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the guide as shown in the illustration to remove the radiator support opening cover.



Hide 3.REMOVE FRONT BUMPER ASSEMBLY

a.

for COROLLA:

i.

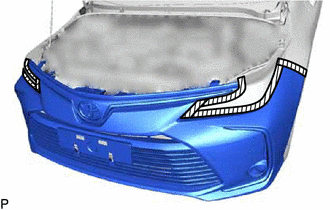

B545164C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front bumper assembly as shown in the illustration.


ii.

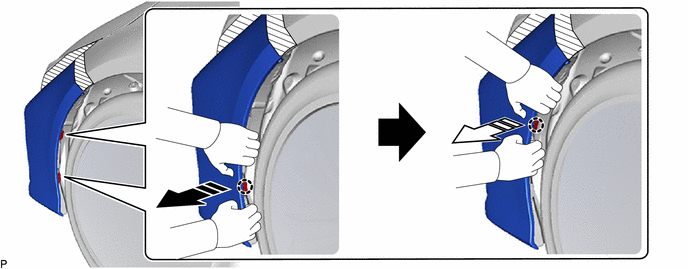

As shown in the illustration, pull the front bumper assembly horizontally to release each claw and disengage the front fender liner retainer.

B718834C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


HINT:

Use the same procedure for the RH side and LH side.



iii.

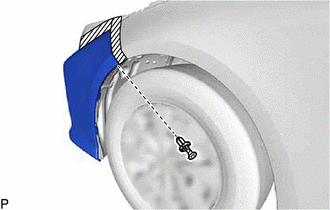

B535270

Remove the clip.

HINT:

Use the same procedure for the RH side and LH side.



iv.

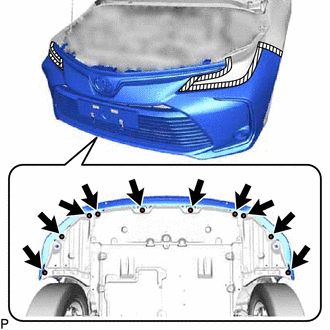

B545165

Remove the 10 screws.


v.

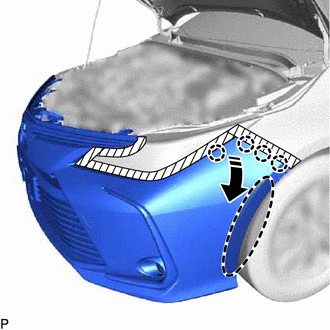

B545166C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Disengage the 4 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



vi.

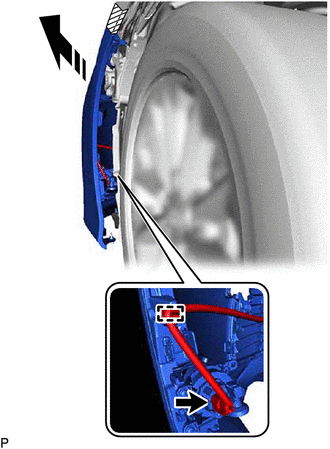

B535275C01
0,0 0,0 false
V113147

Remove in this Direction


for LH Side with Fog Light:

1.

Pull back the side of the front bumper assembly as shown in the illustration and disengage the clamp.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.


2.

Disconnect the connector.



vii.

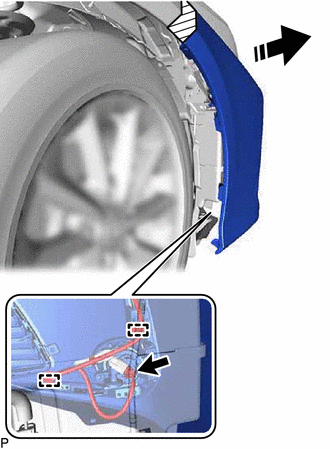

B535274C01
0,0 0,0 false
V113147

Remove in this Direction


for RH Side with Fog Light:

1.

Pull back the side of the front bumper assembly as shown in the illustration and disengage the 2 clamps.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.


2.

Disconnect the connector.



viii.

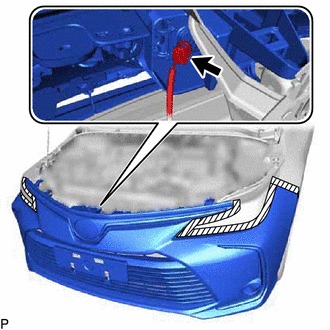

B545167

Disconnect the connector.


ix.

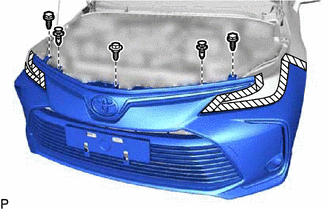

B550453

Remove the bolt and 2 screws.


x.

Remove the 2 clips.


xi.

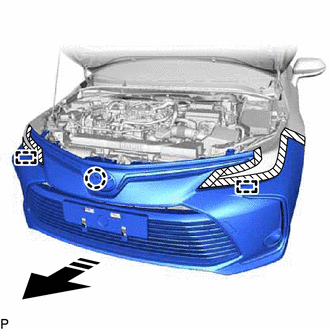

B545169C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw and 2 guides to remove the front bumper assembly as shown in the illustration.



b.

for ALLION:

i.

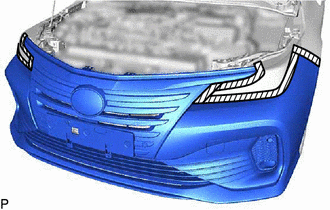

B611265C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front bumper assembly as shown in the illustration.


ii.

As shown in the illustration, pull the front bumper assembly horizontally to release each claw and disengage the front fender liner retainer.

B718834C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


HINT:

Use the same procedure for the RH side and LH side.



iii.

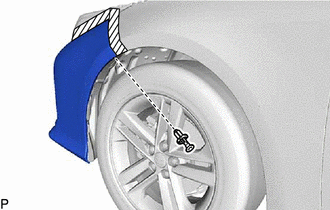

B611268

Remove the clip.

HINT:

Use the same procedure for the RH side and LH side.



iv.

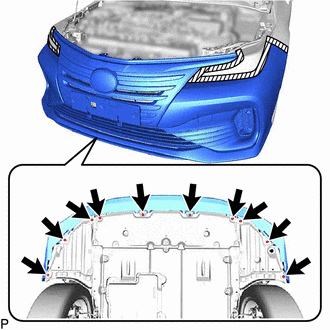

B611269

Remove the 10 screws.


v.

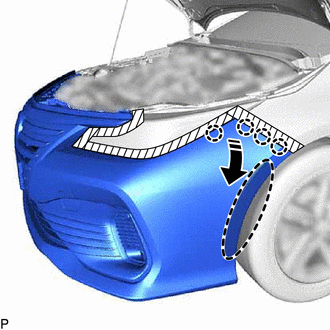

B611270C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Disengage the 4 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



vi.

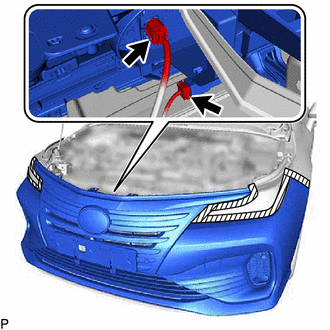

B684057

Disconnect each connector.


vii.

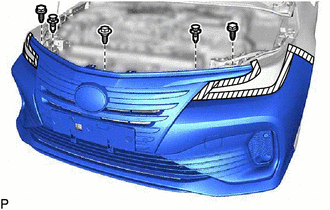

B611273

Remove the bolt and 2 screws.


viii.

Remove the 2 clips.


ix.

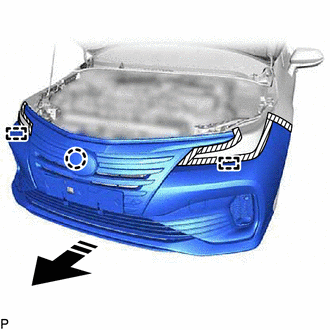

B611274C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw and 2 guides as shown in the illustration.


x.

Disconnect the 3 connectors to remove the front bumper assembly.
