RM3660EC _58 Vehicle Interior _080741 SUPPLEMENTAL RESTRAINT SYSTEMS _0392909 CENTER AIRBAG SENSOR ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS CENTER AIRBAG SENSOR ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:
except NR Series Engine:: ·

After replacing the airbag sensor with ECU assembly, make sure to perform ECU Configuration, Update ECU Security Key, Write VIN/Vehicle Identification Number, and Switching Specification Information.

·

After performing the ECU configuration procedure and update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.

PROCEDURE

Hide Display 89170B 1.INSTALL AIRBAG SENSOR WITH ECU ASSEMBLY

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: for NR Series:

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; except NR Series:

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

2.906,0.906 3.063,1.104 0.156,0.198 10 true A 0.188,1.198 0.344,1.396 0.156,0.198 10 true B 0.531,0.708 0.688,0.906 0.156,0.198 10 true C

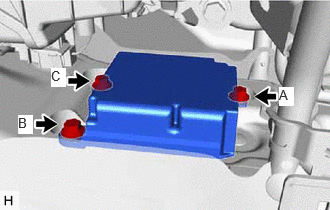

Install the airbag sensor with ECU assembly with the 3 bolts.

Torque:: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:: ·

Temporarily tighten the 2 bolts in the order of (A), (B) and then fully tighten the 3 bolts in the order of (C), (A) and (B).

·

If the airbag sensor with ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

·

When installing the airbag sensor with ECU assembly, make sure that the SRS wiring does not interfere with or is not pinched between other parts.

·

When the ignition switch (for Gasoline Model) or power switch (for HV Model) is first turned to on (IG) after the airbag sensor with ECU assembly has been replaced, make sure that no one is in the vehicle.

0.802,0.375 1.063,0.375 1.063,0.375 1.167,0.74 true 0.615,0.271 0.802,0.479 0.188,0.208 10 true *a

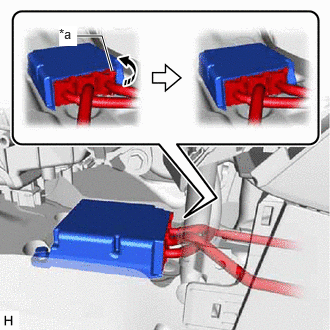

*a	Lock Lever
	Move in this Direction

Temporarily connect the connector and then move the lock lever in the direction indicated by the arrow to securely connect the connectors.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

Check that there is no looseness in the installed parts of the airbag sensor with ECU assembly.

Hide Display 58816D 2.INSTALL FRONT NO. 1 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0089,

Hide Display 55606 3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION202304,999999,_58,_080744,_0393717,RM100000002AVGG_01_0100,

Hide Display 4.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8_01_0029,

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF_03_0002,

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG_03_0002,

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI_03_0002,

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK_03_0002,

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ_03_0002,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0015,

Hide Display 64490 5.INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0028,

Hide Display 6. ECU CONFIGURATION (except NR Series Engine)

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>ECU CONFIGURATION202304,999999,_V1,_143216,_0598316,RM100000002B3MK,

Hide Display 7. UPDATE ECU SECURITY KEY (except NR Series Engine)

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202304,999999,_V1,_143216,_0598316,RM100000002B3ML,

Hide Display 8. WRITE VIN/VEHICLE IDENTIFICATION NUMBER (except NR Series Engine)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>UTILITY202304,999999,_58,_080741,_0584471,RM1000000029GNP,

Hide Display 9. SWITCHING SPECIFICATION INFORMATION (except NR Series Engine)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>UTILITY202304,999999,_58,_080741,_0584471,RM1000000029GNP,

Hide Display 10. PERFORM DIAGNOSTIC SYSTEM CHECK (for NR Series Engine)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,

Hide Display 11.INSPECT SRS WARNING LIGHT

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,

Hide Display 12. PERFORM INITIALIZATION

for CVT (K313): Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>INITIALIZATION201906,999999,_52,_080728,_0392261,RM100000001HP98,

for Electronically Controlled Brake System (for HV Model): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>UTILITY202304,999999,_54,_080770,_0392591,RM100000002B671,

for Electronically Controlled Brake System (for Gasoline Model (NR Series)): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (NR Series))>UTILITY202304,999999,_54,_080770,_0599814,RM100000002BA8F,

for Electronically Controlled Brake System (for Gasoline Model (except NR Series)): Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (except NR Series))>UTILITY202304,999999,_54,_080770,_0599811,RM100000002B9XU,

for Stop and Start System: Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>REGISTRATION201906,999999,_51,_080774,_0393362,RM100000001HXHH,

Hide Display 13. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
