SUPPLEMENTAL RESTRAINT SYSTEMS  CURTAIN SHIELD AIRBAG ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during curtain shield airbag assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION


NOTICE:

After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 64490 2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

Hide 3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

CAUTION:
for NR Series:
·
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


except NR Series:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



Hide 62180A 5.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

CAUTION:

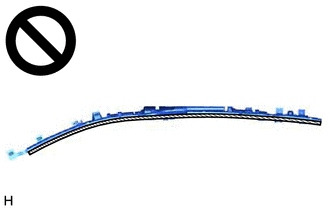

B417759C02
0,0 0,0 false
V100155

Deployment Side


When storing the curtain shield airbag assembly, keep the airbag deployment side facing upward.


NOTICE:

When removing the curtain shield airbag assembly, have assistants hold it to prevent it from bending.


a.

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.


b.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
for NR Series:
·
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


except NR Series:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.




c.

for M20A-FKS, M20E-FKS, M20G-FXS:

i.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Using a needle nose pliers No. 2 or equivalent, remove the 5 pins from the 3 clips (A) and 2 clips (B).

NOTICE:

Do not damage the pins.

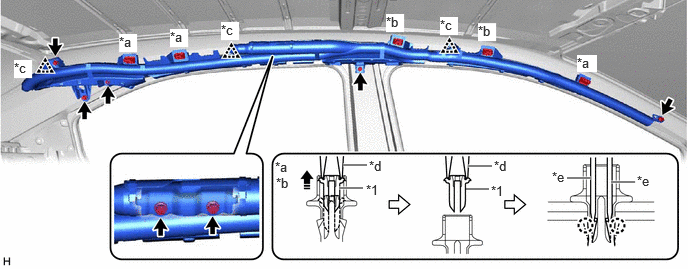

B612005C02
3.531,1.958 3.781,1.958 true 4.844,1.969 5.094,1.969 false 3.573,1.719 3.823,1.719 true 4.875,1.729 5.125,1.729 true 5.906,1.854 6.156,1.854 true 6.365,1.896 6.615,1.896 true 3.813,1.896 4.021,2.073 0.208,0.177 10 false *1 6.01,0.573 6.219,0.75 0.208,0.177 10 true *a 2.865,1.656 3.177,1.813 0.313,0.156 10 false *a 5.115,1.906 5.323,2.083 0.208,0.177 10 false *1 2.875,1.823 3.188,1.979 0.313,0.156 10 false *b 4.979,0.24 5.167,0.427 0.188,0.188 10 true *b 4.021,0.146 4.208,0.333 0.188,0.188 10 true *b 1.771,0.302 1.958,0.49 0.188,0.188 10 true *a 4.583,0.177 4.771,0.365 0.188,0.188 10 true *c 2.302,0.229 2.49,0.417 0.188,0.188 10 true *c 1.24,0.354 1.427,0.542 0.188,0.188 10 true *a 0.146,0.625 0.333,0.813 0.188,0.188 10 true *c 3.844,1.646 4.052,1.823 0.208,0.177 10 false *d 5.146,1.646 5.354,1.823 0.208,0.177 10 false *d 5.75,1.76 5.958,1.938 0.208,0.177 10 false *e 6.635,1.802 6.844,1.979 0.208,0.177 10 false *e
*1 Pin - -
*a Clip (A) *b Clip (B)
*c Clip (C) *d Needle Nose Pliers No. 2
*e Thin Screwdriver - -
V113147

Remove in this Direction - -



iii.

Using 2 thin screwdrivers, disengage the 2 claws of each clip (A) and (B), and separate the 3 clips (A) and 2 clips (B) from the vehicle body as shown in the illustration.

HINT:

Separate the 3 clips (A), 2 clips (B) and curtain shield airbag assembly from the vehicle body as a unit.



iv.

Disengage the 3 clips (C).


v.

While holding the curtain shield airbag assembly, remove the 7 bolts and curtain shield airbag assembly.


vi.

Remove the 3 clips (A) and 2 clips (B) from the curtain shield airbag assembly.



d.

for M20C-FKS, M20F-FXS:

i.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Using a needle nose pliers No. 2 or equivalent, remove the 5 pins from the 3 clips (A) and 2 clips (B).

NOTICE:

Do not damage the pins.

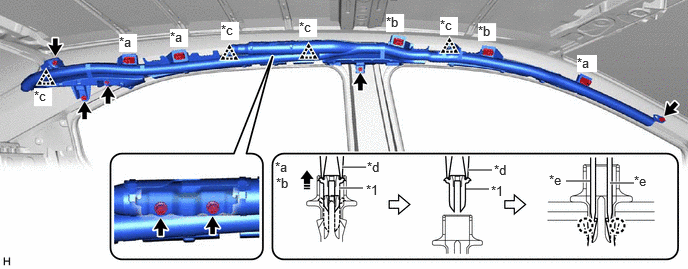

B618505C02
3.531,1.958 3.781,1.958 true 4.844,1.969 5.094,1.969 false 3.563,1.74 3.813,1.74 true 4.875,1.771 5.125,1.771 true 5.896,1.885 6.146,1.885 true 6.354,1.906 6.604,1.906 true 3.813,1.896 4.021,2.073 0.208,0.177 10 false *1 6.01,0.573 6.219,0.75 0.208,0.177 10 true *a 2.865,1.656 3.177,1.813 0.313,0.156 10 false *a 5.115,1.906 5.323,2.083 0.208,0.177 10 false *1 2.875,1.823 3.188,1.979 0.313,0.156 10 false *b 4.979,0.24 5.167,0.427 0.188,0.188 10 true *b 4.021,0.146 4.208,0.333 0.188,0.188 10 true *b 1.771,0.302 1.958,0.49 0.188,0.188 10 true *a 4.583,0.177 4.771,0.365 0.188,0.188 10 true *c 2.302,0.229 2.49,0.417 0.188,0.188 10 true *c 1.24,0.354 1.427,0.542 0.188,0.188 10 true *a 0.354,0.917 0.542,1.104 0.188,0.188 10 true *c 3.115,0.198 3.302,0.385 0.188,0.188 10 true *c 5.146,1.688 5.354,1.865 0.208,0.177 10 false *d 3.823,1.656 4.031,1.833 0.208,0.177 10 false *d 5.719,1.792 5.927,1.969 0.208,0.177 10 false *e 6.604,1.802 6.813,1.979 0.208,0.177 10 false *e
*1 Pin - -
*a Clip (A) *b Clip (B)
*c Clip (C) *d Needle Nose Pliers No. 2
*e Thin Screwdriver - -
V113147

Remove in this Direction - -



iii.

Using 2 thin screwdrivers, disengage the 2 claws of each clip (A) and (B), and separate the 3 clips (A) and 2 clips (B) from the vehicle body as shown in the illustration.

HINT:

Separate the 3 clips (A), 2 clips (B) and curtain shield airbag assembly from the vehicle body as a unit.



iv.

Disengage the 4 clips (C).


v.

While holding the curtain shield airbag assembly, remove the 7 bolts and curtain shield airbag assembly.


vi.

Remove the 3 clips (A) and 2 clips (B) from the curtain shield airbag assembly.



e.

for M15C-FKS, 8ZR-FXE GTMC Made, NR Series:

i.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Using a needle nose pliers No. 2 or equivalent, remove the 4 pins from the 3 clips (A) and clip (B).

NOTICE:

Do not damage the pins.

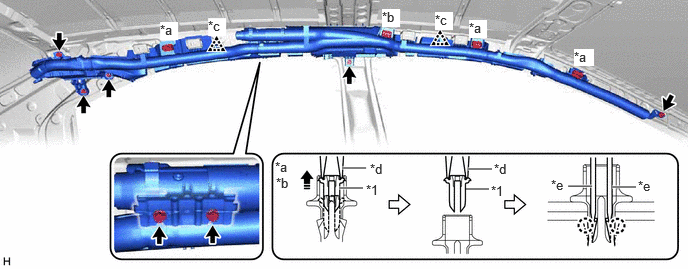

B547036C02
3.531,1.958 3.781,1.958 true 4.844,1.969 5.094,1.969 false 3.563,1.75 3.813,1.75 true 4.875,1.76 5.125,1.76 true 5.917,1.938 6.167,1.938 true 6.375,1.948 6.625,1.948 true 3.813,1.896 4.021,2.073 0.208,0.177 10 false *1 5.979,0.51 6.188,0.688 0.208,0.177 10 true *a 2.865,1.656 3.177,1.813 0.313,0.156 10 false *a 5.115,1.906 5.323,2.083 0.208,0.177 10 false *1 2.875,1.823 3.188,1.979 0.313,0.156 10 false *b 4.885,0.208 5.073,0.396 0.188,0.188 10 true *a 3.979,0.094 4.167,0.281 0.188,0.188 10 true *b 1.667,0.229 1.854,0.417 0.188,0.188 10 true *a 4.531,0.125 4.719,0.313 0.188,0.188 10 true *c 2.167,0.188 2.354,0.375 0.188,0.188 10 true *c 3.854,1.677 4.063,1.854 0.208,0.177 10 false *d 5.146,1.677 5.354,1.854 0.208,0.177 10 false *d 5.74,1.844 5.948,2.021 0.208,0.177 10 false *e 6.646,1.854 6.854,2.031 0.208,0.177 10 false *e
*1 Pin - -
*a Clip (A) *b Clip (B)
*c Clip (C) *d Needle Nose Pliers No. 2
*e Thin Screwdriver - -
V113147

Remove in this Direction - -



iii.

Using 2 thin screwdrivers, disengage the 2 claws of each clip (A) and (B), and separate the 3 clips (A) and clip (B) from the vehicle body as shown in the illustration.

HINT:

Separate the 3 clips (A), clip (B) and curtain shield airbag assembly from the vehicle body as a unit.



iv.

Disengage the 2 clips (C).


v.

While holding the curtain shield airbag assembly, remove the 7 bolts and curtain shield airbag assembly.


vi.

Remove the 3 clips (A) and clip (B) from the curtain shield airbag assembly.



f.

for M15B-FKS, 8ZR-FXE TFTM Made:

i.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Using a needle nose pliers No. 2 or equivalent, remove the 4 pins from the 2 clips (A) and 2 clips (B).

NOTICE:

Do not damage the pins.

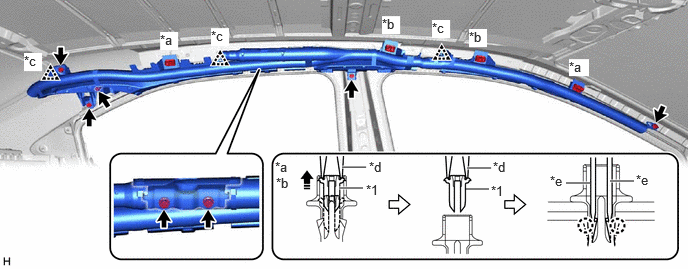

B669983C01
3.531,1.958 3.781,1.958 true 4.844,1.969 5.094,1.969 false 3.563,1.74 3.813,1.74 true 4.865,1.75 5.115,1.75 true 5.896,1.906 6.146,1.906 true 6.354,1.885 6.604,1.885 true 3.813,1.896 4.021,2.073 0.208,0.177 10 false *1 5.927,0.615 6.135,0.792 0.208,0.177 10 true *a 2.865,1.656 3.177,1.813 0.313,0.156 10 false *a 5.115,1.906 5.323,2.083 0.208,0.177 10 false *1 2.875,1.823 3.188,1.979 0.313,0.156 10 false *b 4.885,0.302 5.073,0.49 0.188,0.188 10 true *b 3.979,0.167 4.167,0.354 0.188,0.188 10 true *b 1.667,0.333 1.854,0.521 0.188,0.188 10 true *a 4.5,0.208 4.688,0.396 0.188,0.188 10 true *c 2.198,0.292 2.385,0.479 0.188,0.188 10 true *c 0.25,0.552 0.438,0.74 0.188,0.188 10 true *c 3.844,1.656 4.052,1.833 0.208,0.177 10 false *d 5.135,1.656 5.344,1.833 0.208,0.177 10 false *d 5.729,1.802 5.938,1.979 0.208,0.177 10 false *e 6.625,1.792 6.833,1.969 0.208,0.177 10 false *e
*1 Pin - -
*a Clip (A) *b Clip (B)
*c Clip (C) *d Needle Nose Pliers No. 2
*e Thin Screwdriver - -
V113147

Remove in this Direction - -



iii.

Using 2 thin screwdrivers, disengage the 2 claws of each clip (A) and (B), and separate the 2 clips (A) and 2 clips (B) from the vehicle body as shown in the illustration.

HINT:

Separate the 2 clips (A), 2 clips (B) and curtain shield airbag assembly from the vehicle body as a unit.



iv.

Disengage the 3 clips (C).


v.

While holding the curtain shield airbag assembly, remove the 7 bolts and curtain shield airbag assembly.


vi.

Remove the 2 clips (A) and 2 clips (B) from the curtain shield airbag assembly.
