PARK ASSIST / MONITORING  TELEVISION CAMERA(for Rear)  INSTALLATION

86790D 1.INSTALL REAR TELEVISION CAMERA ASSEMBLY (for TFTM Made)

a.

Connect the connector.

b.

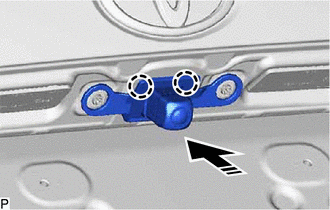

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install the rear television camera assembly as shown in the illustration.

76801A 2.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for TFTM Made)

86790D 3.INSTALL REAR TELEVISION CAMERA ASSEMBLY (for GTMC Made)

a.

When reusing the rear television camera assembly:

i.

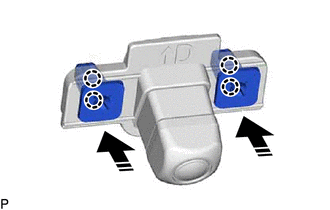

0,0 0,0 false

Install in this Direction

Engage the 4 claws to install 2 new grommets as shown in the illustration.

b.

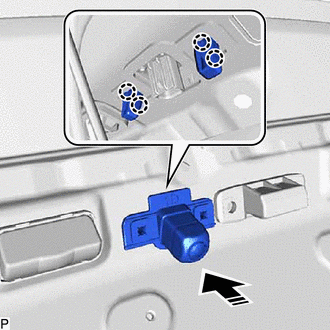

0,0 0,0 false

Install in this Direction

Engage the 4 claws to temporarily install the rear television camera assembly as shown in the illustration.

c.

Install the rear television camera assembly with the 2 screws.

d.

Connect the connector.

4.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (for GTMC Made)

5.PERFORM CALIBRATION
