LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for GTMC Made)
A
EXTERIOR PANELS / TRIM LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH(for GTMC Made) INSTALLATION
PROCEDURE
1.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
a.
Install 5 new clips and 2 new gaskets to the luggage compartment door outside garnish sub-assembly.
b.
0,0 0,0
false
|

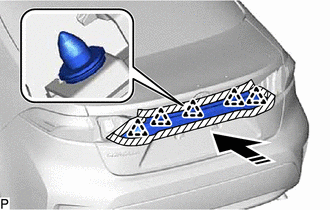

Install in this Direction |
Engage the 5 clips as shown in the illustration.
c.
Install the luggage compartment door outside garnish sub-assembly with the 4 bolts.
2.INSTALL REAR LIGHT ASSEMBLY LH
3.INSTALL REAR LIGHT ASSEMBLY RH
- HINT:
-
Use the same procedure as for the LH side.
