RM3660EC _53 Suspension _080787 REAR SUSPENSION _0392569 REAR TRAILING ARM(w/ Electric Parking Brake) A

REAR SUSPENSION  REAR TRAILING ARM(w/ Electric Parking Brake)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48727 1.INSTALL REAR SUSPENSION ARM BRACKET

a.

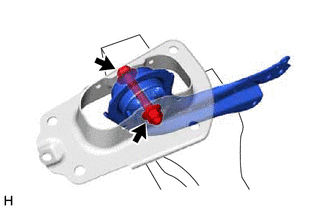

C398053

Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.

NOTICE:

Insert the bolt from the inside of the vehicle.



b.

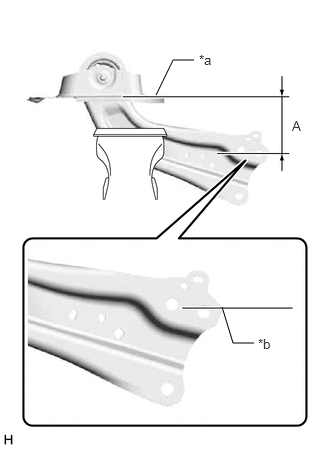

C398054C03
1.625,0.99 1.802,0.625 1.802,0.625 2.021,0.625 false 2.313,3.198 2.427,3.573 2.427,3.573 2.646,3.573 false 2.073,0.542 2.385,0.698 0.313,0.156 10 false *a 3.042,1.229 3.354,1.385 0.313,0.156 10 false A 2.688,3.5 3,3.656 0.313,0.156 10 false *b
*a Upper Surface of Rear Suspension Arm Bracket
*b Edge of Rear Trailing Arm Assembly


Position the rear trailing arm assembly as shown in the illustration.

Reference Length (A):

116 mm (4.57 in.)



c.

Fully tighten the nut.

Torque:
120 N*m (1224 kgf*cm, 89 ft.*lbf)


Hide 48738 2.INSTALL REAR SUSPENSION ARM COVER

a.

Engage the 4 claws and install the rear suspension arm cover.


Hide 48780E 3.INSTALL REAR TRAILING ARM ASSEMBLY

a.

Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.

NOTICE:
·

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.




b.

Install the rear trailing arm assembly to the vehicle with the 4 bolts.

Torque:
90 N*m (918 kgf*cm, 66 ft.*lbf)


c.

Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

Torque:
135 N*m (1377 kgf*cm, 100 ft.*lbf)


d.

w/o Stabilizer Bar:

i.

Install the bolt and nut to the rear axle carrier sub-assembly and rear trailing arm assembly.

Torque:
75 N*m (765 kgf*cm, 55 ft.*lbf)

NOTICE:
·

Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

·

Insert the bolt from the inside of the vehicle.





Hide 48840A 4.INSTALL REAR STABILIZER LINK ASSEMBLY (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION

Hide 890C0A 5.INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.

Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

Torque:
15.5 N*m (158 kgf*cm, 11 ft.*lbf)


b.

Engage the 2 clamps.


Hide 57628E 6.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 7.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57628E 8.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 9.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 12.PERFORM INITIALIZATION

for HV Model:
Parking Assist Monitor System (Click here)
Panoramic View Monitor System (Click here)

for Gasoline Model:
Parking Assist Monitor System (Click here)
