RM3660EC _53 Suspension _080787 REAR SUSPENSION _0392568 REAR LOWER ARM A

REAR SUSPENSION  REAR LOWER ARM  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48720A 1.TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

a.

Temporarily install the rear No. 1 suspension arm assembly to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the 2 bolts and 2 nuts.

NOTICE:
·

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

·

Insert the bolt with the threaded end facing the rear of the vehicle.




Hide 48740F 2.TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.

Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and nut.

NOTICE:
·

Insert the rear suspension toe adjust cam sub-assembly from the rear of the vehicle.

·

When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.




Hide 48840A 6.INSTALL REAR STABILIZER LINK ASSEMBLY (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION

Hide 48720A 7.INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

a.

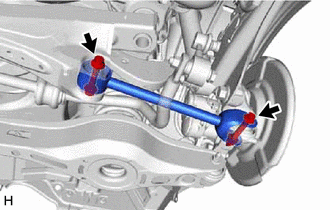

C397811

Install the rear No. 1 suspension arm assembly with the 2 bolts.

Torque:
73 N*m (744 kgf*cm, 54 ft.*lbf)

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.



Hide 48740F 8.INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.
C397800

Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque:
73 N*m (744 kgf*cm, 54 ft.*lbf)

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.



Hide 57628E 9.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 10.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57628E 11.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 12.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 48740F 14.INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.

Lower the vehicle to the ground.


b.

Bounce the vehicle up and down at the corners to stabilize the rear suspension.


c.

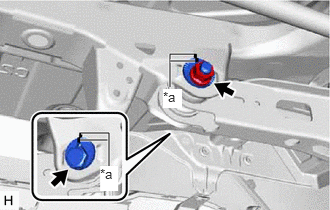

C397798C03
0.833,1.458 1.146,1.458 true 1.135,1.729 1.135,1.385 1.135,1.385 0.844,1.385 true 1.771,0.906 1.771,0.563 1.771,0.563 2.021,0.563 true 1.771,0.635 2.031,0.635 true 1.042,1.729 1.229,1.99 0.188,0.26 10 true *a 1.698,0.927 1.896,1.125 0.198,0.198 10 true *a
*a Matchmark


Align the matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.


d.

Fully tighten the nut.

Torque:
100 N*m (1020 kgf*cm, 74 ft.*lbf)

NOTICE:
·

Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

·

Make sure that the vehicle is unloaded when fully tightening the nut.




Hide 16.PERFORM INITIALIZATION

for HV Model:
Parking Assist Monitor System (Click here)
Panoramic View Monitor System (Click here)

for Gasoline Model:
Parking Assist Monitor System (Click here)
