REAR SUSPENSION REAR UPPER ARM REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear upper control arm assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: The vehicle height changes because of tire replacement. |
|||
| Rear wheel alignment adjustment | 1.
Perform "Reset Memory" 2.
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Brake system warning light (yellow indicator) illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system disabled or malfunctions |
( 202304,999999,_54,_080770,_0392591,RM100000002B671,)
|
·
Tires ·
Suspension parts |
Rear television camera assembly optical axis (Back camera position setting)* | Parking Assist Monitor System | (202304,999999,_56,_080754,_0596561,RM100000002AX0D,)
|
| Parking assist ECU initialization | Panoramic View Monitor System | (202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
|
| Gas leaks from exhaust system is repaired (8ZR-FXE) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
|
| Gas leaks from exhaust system is repaired (M20F-FXS, M20G-FXS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202307,999999,_51,_146896,_0611112,RM100000002CI3Y,)
|
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: The vehicle height changes because of tire replacement. |
|||
| Rear wheel alignment adjustment | for NR Series
·
Perform "Reset Memory" ·
Perform acceleration sensor zero point calibration and store system information memorization |
·
VSC is disabled or malfunctions ·
DTCs are output ·
Slip indicator light illuminates ·
ABS warning light illuminates |
(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
|
except NR Series
·
Perform "Reset Memory" ·
Perform "Calibration" |
·
VSC is disabled or malfunctions ·
DTCs are output ·
Slip indicator light illuminates ·
ABS warning light illuminates |
(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
|
|
·
Tires ·
Suspension parts |
Rear television camera assembly optical axis (Back camera position setting)* | Parking Assist Monitor System | (202304,999999,_56,_080754,_0596561,RM100000002AX0D,)
|
| Gas leaks from exhaust system is repaired (M15B-FKS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202304,999999,_51,_096196,_0456237,RM100000002BK2G,)
|
| Gas leaks from exhaust system is repaired (M15C-FKS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202101,999999,_51,_096205,_0456238,RM100000001TNCQ,)
|
| Gas leaks from exhaust system is repaired (M20A-FKS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202104,999999,_51,_101144,_0469422,RM100000001VI8I,)
|
| Gas leaks from exhaust system is repaired (M20C-FKS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202107,999999,_51,_105190,_0484152,RM100000001XABZ,)
|
| Gas leaks from exhaust system is repaired (M20E-FKS) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202104,999999,_51,_101153,_0478272,RM100000001WJNC,)
|
| Gas leaks from exhaust system is repaired (NR Series) | Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
|
- CAUTION:
-
-
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
PROCEDURE
51206A
1.REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY
48790

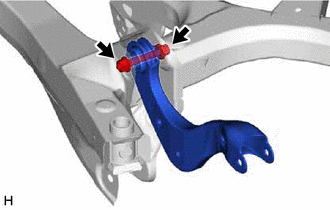

2.REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
- NOTICE:
-
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
48770A
3.REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH
- HINT:
-
Perform the same procedure as for the LH side.
