RM3660EC _53 Suspension _080787 REAR SUSPENSION _0392573 REAR SUSPENSION MEMBER A

REAR SUSPENSION REAR SUSPENSION MEMBER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension member sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Rear wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system disabled or malfunctions	(202304,999999,_54,_080770,_0392591,RM100000002B671,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0D,)
· Tires · Suspension parts	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
Gas leaks from exhaust system is repaired (8ZR-FXE)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_080778,_0393982,RM100000002BDLI,)
Gas leaks from exhaust system is repaired (M20F-FXS, M20G-FXS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_146896,_0611112,RM100000002CI3Y,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Rear wheel alignment adjustment	for NR Series · Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
Rear wheel alignment adjustment	except NR Series · Perform "Reset Memory" · Perform "Calibration"	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0D,)
Gas leaks from exhaust system is repaired (M15B-FKS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202304,999999,_51,_096196,_0456237,RM100000002BK2G,)
Gas leaks from exhaust system is repaired (M15C-FKS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202101,999999,_51,_096205,_0456238,RM100000001TNCQ,)
Gas leaks from exhaust system is repaired (M20A-FKS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202104,999999,_51,_101144,_0469422,RM100000001VI8I,)
Gas leaks from exhaust system is repaired (M20C-FKS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202107,999999,_51,_105190,_0484152,RM100000001XABZ,)
Gas leaks from exhaust system is repaired (M20E-FKS)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202104,999999,_51,_101153,_0478272,RM100000001WJNC,)
Gas leaks from exhaust system is repaired (NR Series)	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 17430 2.REMOVE TAIL EXHAUST PIPE ASSEMBLY

for M15B-FKS: Click hereEngine / Hybrid System>M15B-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202304,999999,_51,_096204,_0455168,RM100000002B1HT_02_0025,

for M15C-FKS: Click hereEngine / Hybrid System>M15C-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202304,999999,_51,_096209,_0455173,RM100000002B1I5_02_0025,

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202104,999999,_51,_101148,_0473516,RM100000001W2OM_02_0025,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202107,999999,_51,_105198,_0483680,RM100000001X8JB_02_0025,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202104,999999,_51,_101158,_0477648,RM100000001WH7K_02_0025,

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202304,999999,_51,_080790,_0392074,RM100000002B0QY_01_0005,

for NR Series: Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0005,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL202307,999999,_51,_146898,_0614250,RM100000002CQYN_02_0025,

Hide Display 57628E 3.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0017,

Hide Display 57627G 4.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0016,

Hide Display 57628E 5.REMOVE REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0018,

Hide Display 57627G 6.REMOVE REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0019,

Hide Display 47319F 7.SEPARATE REAR FLEXIBLE HOSE LH

Remove the bolt and separate the rear flexible hose LH from the rear flexible hose bracket.

Hide Display 47318F 8.SEPARATE REAR FLEXIBLE HOSE RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48840A 9.REMOVE REAR STABILIZER LINK ASSEMBLY LH (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0015,

Hide Display 48830D 10.REMOVE REAR STABILIZER LINK ASSEMBLY RH (w/ Stabilizer Bar)

HINT:: Perform the same procedure as for the LH side.

Hide Display 48805 11.REMOVE REAR STABILIZER BAR SUB-ASSEMBLY (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>REMOVAL202307,999999,_53,_080787,_0392571,RM100000002CWHJ_01_0004,

Hide Display 48231B 12.REMOVE REAR COIL SPRING LH

Click hereSuspension>REAR SUSPENSION>REAR COIL SPRING (for Double Wishbone Type Suspension)>REMOVAL202307,999999,_53,_080787,_0392566,RM100000002CWHB_03_0014,

Hide Display 48231A 13.REMOVE REAR COIL SPRING RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48258C 14.REMOVE REAR LOWER COIL SPRING INSULATOR LH

Click hereSuspension>REAR SUSPENSION>REAR COIL SPRING (for Double Wishbone Type Suspension)>REMOVAL202307,999999,_53,_080787,_0392566,RM100000002CWHB_03_0016,

Hide Display 48258B 15.REMOVE REAR LOWER COIL SPRING INSULATOR RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48740F 16.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

Click hereSuspension>REAR SUSPENSION>REAR LOWER ARM>REMOVAL202307,999999,_53,_080787,_0392568,RM100000002CWHF_01_0034,

Hide Display 48730F 17.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48720A 18.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

Click hereSuspension>REAR SUSPENSION>REAR LOWER ARM>REMOVAL202307,999999,_53,_080787,_0392568,RM100000002CWHF_01_0025,

Hide Display 48710A 19.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

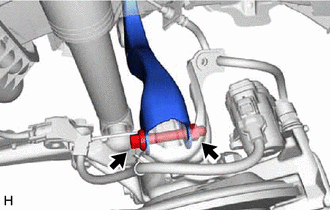

Hide Display 48790 20.SEPARATE REAR UPPER CONTROL ARM ASSEMBLY LH

Remove the bolt and nut and separate the rear upper control arm assembly LH from the rear axle carrier sub-assembly LH.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

Hide Display 48770A 21.SEPARATE REAR UPPER CONTROL ARM ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 51206A 22.REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

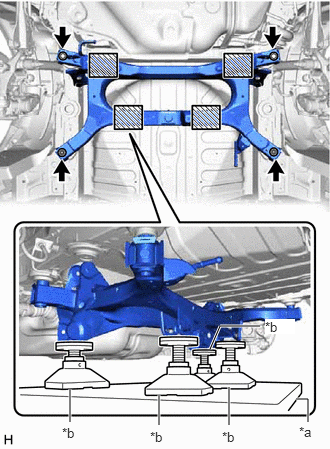

0.729,4.396 0.729,4.052 true 1.656,4.427 1.656,4.115 true 2.385,4.427 2.385,4.031 true 2.188,3.635 2.292,3.396 2.292,3.396 2.708,3.396 true 3.083,4.156 3.208,4.156 3.208,4.156 3.208,4.396 true 3.115,4.417 3.323,4.583 0.208,0.167 10 false *a 0.646,4.427 0.958,4.583 0.313,0.156 10 false *b 1.563,4.469 1.875,4.625 0.313,0.156 10 false *b 2.313,4.469 2.625,4.625 0.313,0.156 10 false *b 2.76,3.323 3.073,3.479 0.313,0.156 10 true *b

*a	Engine Lifter
*b	Attachment
	Attachment Placement Location

Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.

CAUTION:: ·

·

The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.

·

If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

NOTICE:: Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.

Remove the 2 bolts and 2 nuts.

Slowly lower the rear suspension member sub-assembly.

NOTICE:: When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

Hide Display 48790 23.REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

Click hereSuspension>REAR SUSPENSION>REAR UPPER ARM>REMOVAL202307,999999,_53,_080787,_0392567,RM100000002CWHD_01_0009,

Hide Display 48770A 24.REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 51284 25.REMOVE REAR SUSPENSION MEMBER HOLE COVER (w/ Rear Suspension Member Hole Cover)

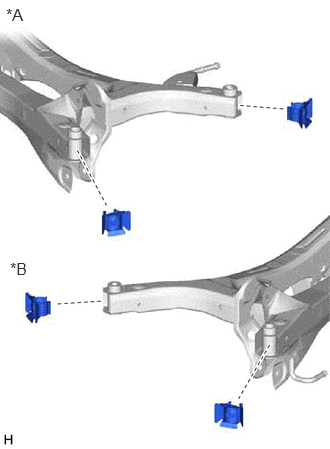

0.063,0.052 0.469,0.333 0.406,0.281 12 false *A 0.104,2.698 0.542,2.969 0.438,0.271 12 false *B

*A	for LH Side
*B	for RH Side

Remove the 4 rear suspension member hole covers from the rear suspension member sub-assembly as shown in the illustration.

Hide Display 26.REMOVE HOLE PLUG (w/ Hole Plug)

Remove the 7 hole plugs from the rear suspension member sub-assembly as shown in the illustration.
