REAR SUSPENSION  REAR COIL SPRING(for Double Wishbone Type Suspension)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 48259A 1.INSTALL REAR UPPER COIL SPRING INSULATOR

a.

Install the rear upper coil spring insulator to the vehicle.


Hide 48258C 2.INSTALL REAR LOWER COIL SPRING INSULATOR

a.

Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.


Hide 48231B 3.INSTALL REAR COIL SPRING

a.
C345081C09

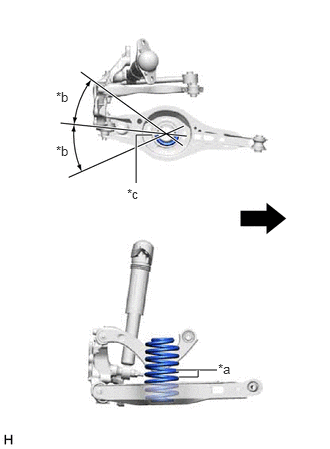

1.833,3.854 2.26,3.854 true 1.865,3.927 2.063,3.927 2.063,3.927 2.063,3.854 true 1.583,1.406 1.417,1.406 1.417,1.406 1.417,1.906 true 2.271,3.76 2.583,3.917 0.313,0.156 10 false *a 0.583,0.927 0.896,1.083 0.313,0.156 10 false *b 0.583,1.49 0.896,1.646 0.313,0.156 10 false *b 1.323,1.938 1.635,2.094 0.313,0.156 10 false *c
*a Identification Mark
*b 30° or less
*c Lower End of Rear Coil Spring
V100135

Inner Side of the Vehicle


Set the rear coil spring to the rear No. 2 suspension arm assembly.

NOTICE:
·

Set the rear coil spring so that its lower end is within the range shown in the illustration.

·

Set the rear coil spring so that the identification mark is positioned as shown in the illustration.

·

The smaller diameter end must face upward.




b.

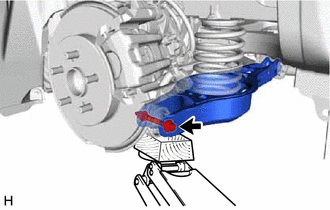

Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then temporarily install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

CAUTION:

Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.


NOTICE:
·

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

·

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

·

Make sure to perform this operation with the vehicle kept as low as possible.

·

Insert the bolt with the threaded end facing the front of the vehicle.




Hide 48740F 5.INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.
C397800

Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque:
73 N*m (744 kgf*cm, 54 ft.*lbf)

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.



Hide 48840A 6.INSTALL REAR STABILIZER LINK ASSEMBLY (w/ Stabilizer Bar)

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION

Hide 57628E 7.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for HV Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 8.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for HV Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57628E 9.INSTALL REAR FLOOR SIDE MEMBER COVER LH (for Gasoline Model)

a.

for LH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 57627G 10.INSTALL REAR FLOOR SIDE MEMBER COVER RH (for Gasoline Model)

a.

for RH Side:

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION


Hide 48740F 12.INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

a.

Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the nut.

Click hereSuspension>REAR SUSPENSION>REAR LOWER ARM>INSTALLATION


Hide 14.PERFORM INITIALIZATION

for HV Model:
Parking Assist Monitor System (Click here)
Panoramic View Monitor System (Click here)

for Gasoline Model:
Parking Assist Monitor System (Click here)
