PARK ASSIST / MONITORING ULTRASONIC SENSOR(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Parking Support Brake System Ultrasonic sensor	· Measure ultrasonic sensor detection angle · Register ultrasonic sensor detection angle	· TOYOTA Parking Assist-sensor System (w/ Parking Support Brake System) · Parking Support Brake System	(202304,999999,_56,_080754,_0470654,RM100000002AHFT,)
· Front television camera assembly* · Front bumper assembly* · Radiator grille sub-assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH · Rear television camera assembly	Television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
w/ Parking Support Brake System Ultrasonic sensor	· Measure ultrasonic sensor detection angle · Register ultrasonic sensor detection angle	· TOYOTA Parking Assist-sensor System (w/ Parking Support Brake System) · Parking Support Brake System	(202304,999999,_56,_080754,_0470654,RM100000002AHFT,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202307,999999,_59,_080736,_0392548,RM100000002CH8T,

Hide Display 89341L 2.REMOVE FRONT CENTER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

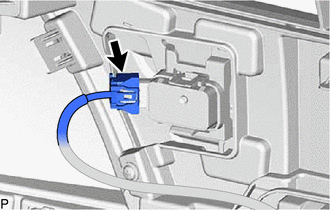

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

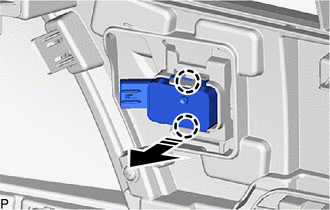

Disengage the 2 claws and remove the front center ultrasonic sensor as shown in the illustration.

Hide Display 89341K 3.REMOVE FRONT CORNER ULTRASONIC SENSOR

HINT:: The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

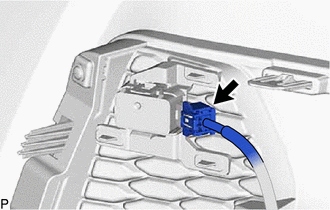

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

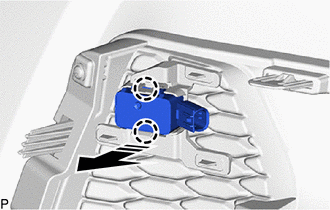

Disengage the 2 claws and remove the front corner ultrasonic sensor as shown in the illustration.

Hide Display 89305 4.REMOVE ULTRASONIC SENSOR CUSHION SET

HINT:: Only perform this procedure when removing and installing the ultrasonic sensor cushion set.

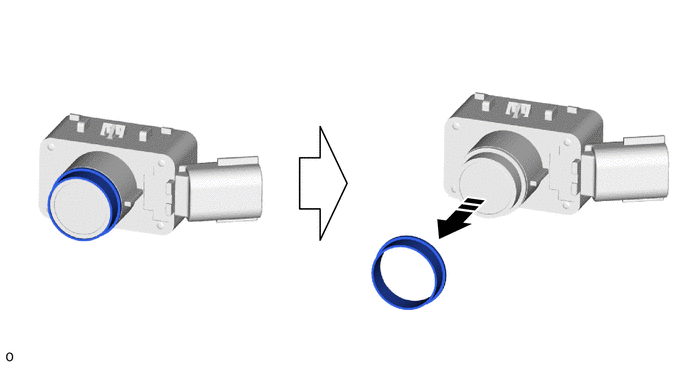

Remove the ultrasonic sensor cushion set as shown in the illustration.

0,0 0,0 false

Remove in this Direction
