RM3660EC _54 Brake _080740 PARKING BRAKE _0392896 FORCED RELEASE(for Gasoline Model) A

PARKING BRAKE  FORCED RELEASE(for Gasoline Model)  OPERATION METHOD


PROCEDURE

Hide 67917A 6.REMOVE REAR DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.


Hide 62332A 7.SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP LH

a.
C399674

Separate the rear door opening trim weatherstrip LH.

NOTICE:

Be careful not to damage the rear door opening trim weatherstrip LH.



Hide 62331A 8.SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure as for the LH side.


Hide 62552F 9.SEPARATE REAR SEAT SIDE GARNISH LH

a.
C399675

Disengage the clip and separate the rear seat side garnish LH until the No. 2 parking brake wire assembly connectors can be seen.

NOTICE:

Be careful not to damage the rear seat side garnish LH.



Hide 62551F 10.SEPARATE REAR SEAT SIDE GARNISH RH

HINT:

Use the same procedure as for the LH side.


Hide 11. PARKING BRAKE FORCED RELEASE

CAUTION:

Work on a level surface to ensure safety.


NOTICE:
·

To release the parking brake, follow the procedure for when using SST.

·

If the parking brake cannot be released, follow the procedure for when not using SST.

·

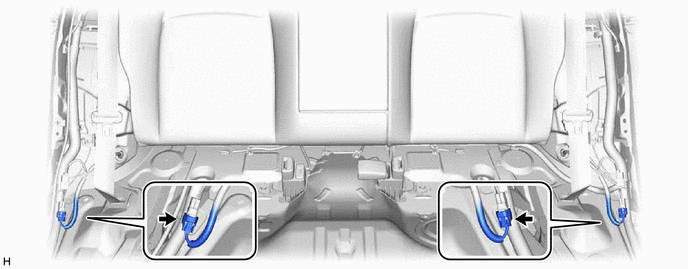

When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.

C399170

·

If the ignition switch is ON or the engine is started with the 2 connectors disconnected, a DTC may be stored. Clear any DTCs after performing work.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE SYSTEM (for Gasoline Model)>DTC CHECK / CLEAR



a.

When using SST:

i.

Park the vehicle on a level surface and move the shift lever to P.


ii.

Turn the ignition switch off and chock the wheels.


iii.

Disconnect the 2 connectors shown in the illustration.

C399170


iv.

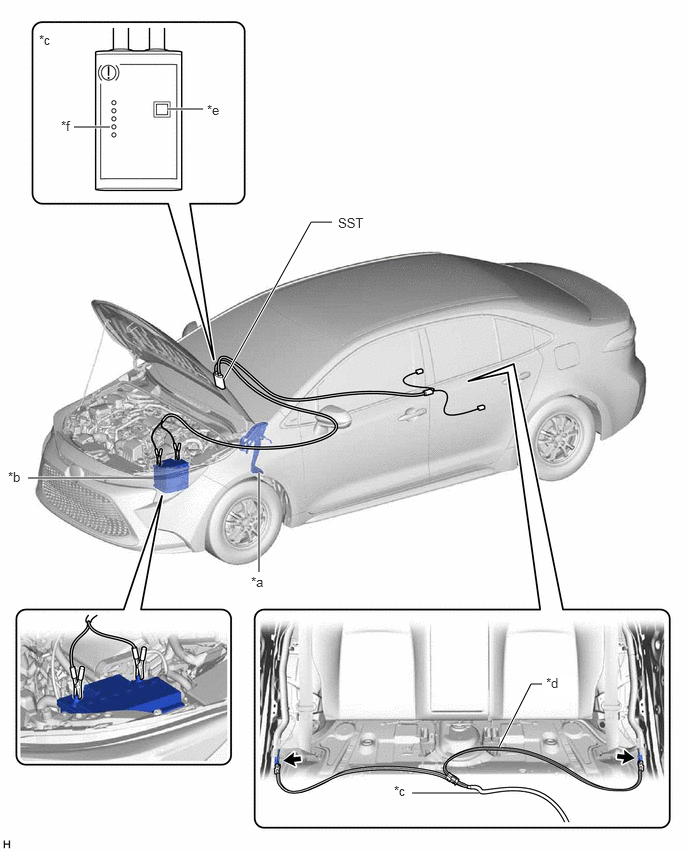

Connect SST (09756-48020) to SST (09756-48060).

SST
09756-48020  09756-48060

C412453C01
0.771,1.323 1.146,1.323 true 1.74,1.135 2.115,1.135 true 2.333,3.948 3.24,2.313 3.24,2.313 3.458,2.313 true 4.292,8.26 4.99,8.26 true 0.292,4.979 1.594,4.979 true 5.198,7.781 5.531,7.125 5.531,7.125 5.646,7.125 true 2.698,4.927 2.698,5.958 true 3.521,2.24 3.979,2.427 0.458,0.188 10 false SST 0.406,0.333 0.719,0.531 0.313,0.198 10 false *c 0.635,1.229 0.948,1.427 0.313,0.198 10 false *f 2.156,1.063 2.469,1.26 0.313,0.198 10 false *e 0.083,4.885 0.396,5.083 0.313,0.198 10 false *b 2.615,5.979 2.927,6.177 0.313,0.198 10 false *a 4.104,8.156 4.417,8.354 0.313,0.198 10 false *c 5.688,7.031 6,7.229 0.313,0.198 10 true *d
*a Brake Pedal *b Battery
*c SST (09756-48020) *d SST (09756-48060)
*e Release Button *f Finished Light
V100135

Connector - -



v.

Connect SST (09756-48060) to the 2 connectors inside of the vehicle.


vi.

Connect SST (09756-48020) to the battery from the outside of the vehicle.


vii.

Push the release button on SST (09756-48020) with the brake pedal depressed.

CAUTION:

The vehicle may suddenly move when the parking brake is released. Make sure to perform the release operation with the brake pedal depressed.


HINT:
·

Confirm that the parking brake is operating by listening for operation sounds.

·

If no operation sounds are heard, push the release button on SST (09756-48020) with the brake pedal depressed.

·

The parking brake may not release if the battery voltage is too low. In this case, perform the release operation again using a fully charged or new battery.




viii.

When the finished light of SST (09756-48020) illuminates, release the brake pedal.


ix.

Move the vehicle forward and rearward to check that the parking brake is released.

CAUTION:

Be careful when performing this operation. The vehicle may suddenly move.


NOTICE:
·

When moving the vehicle after releasing the parking brake, check that the 2 connectors are disconnected.

·

The brake warning light (yellow) will illuminate when the vehicle is moved after releasing the parking brake.





b.

When not using SST:

NOTICE:

Perform the following procedure only when the parking brake cannot be released using SST.


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



i.

Park the vehicle on a level surface and check that the shift lever is in P.


ii.

Turn the ignition switch off and check that the wheels are chocked.


iii.

Check that the 2 connectors shown in the illustration have been disconnected.

C399170





vii.
C398235

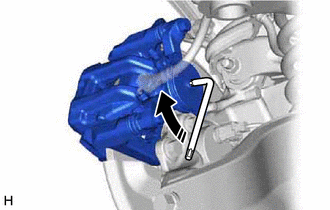

Insert an L-shaped T45 "TORX" wrench into the rear disc brake cylinder assembly.


viii.

Turn the L-shaped T45 "TORX" wrench 2 full rotations clockwise to release the parking brake lock.

C399170

NOTICE:
·

When moving the vehicle after releasing the parking brake, install all parts and do not connect the 2 connectors shown in the illustration.

·

The brake warning light (yellow) will illuminate when the vehicle is moved after releasing the parking brake.
