RM3660EC _52 Drivetrain _080786 AXLE AND DIFFERENTIAL _0392699 STEERING KNUCKLE A

AXLE AND DIFFERENTIAL  STEERING KNUCKLE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering knuckle removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Front wheel alignment adjustment
for NR Series
·

Perform "Reset Memory"

·

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
except NR Series
·

Perform "Reset Memory"

·

Perform "Calibration"


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 43212 3.REMOVE STEERING KNUCKLE

a.

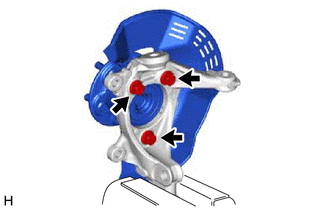

C398423

Secure the front axle assembly between aluminum plates in a vise.

NOTICE:

Do not overtighten the vise.



b.

Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.

NOTICE:
·

Do not drop the front axle hub sub-assembly.

·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
