AXLE AND DIFFERENTIAL FRONT AXLE HUB REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front axle hub sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Front wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system disabled or malfunctions	(202304,999999,_54,_080770,_0392591,RM100000002B671,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
· Tires · Suspension parts	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Front wheel alignment adjustment	for NR Series · Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
Front wheel alignment adjustment	except NR Series · Perform "Reset Memory" · Perform "Calibration"	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 43502H 2.REMOVE FRONT AXLE SHAFT NUT

for TFTM Made: Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for TFTM Made)>REMOVAL202307,999999,_52,_080779,_0392672,RM100000002CL7W_02_0004,

for GTMC Made: Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>FRONT DRIVE SHAFT ASSEMBLY (for GTMC Made)>REMOVAL202307,999999,_52,_080779,_0392671,RM100000002CL92_02_0004,

Hide Display 89543 3.SEPARATE FRONT SPEED SENSOR

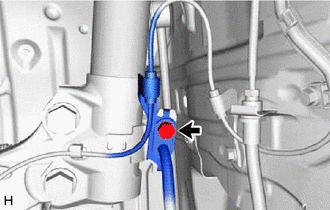

Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

NOTICE:: Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

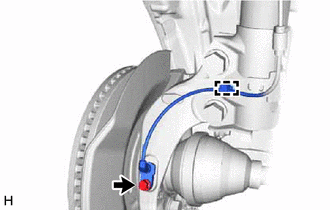

Remove the bolt, disengage the clamp and separate the front speed sensor from the front shock absorber assembly and steering knuckle.

NOTICE:: ·

Prevent foreign matter from contacting the sensor tip.

·

Be careful not to damage the front speed sensor.

·

Clean the speed sensor installation hole and the contact surfaces every time the speed sensor is removed.

Hide Display 45047 4.SEPARATE TIE ROD END SUB-ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>REMOVAL202307,999999,_55,_080765,_0392687,RM100000002CQYW_01_0109,

Hide Display 5.SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT202307,999999,_52,_080786,_0392697,RM100000002CW4P_01_0018,

Hide Display 43512 6.REMOVE FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>REMOVAL202307,999999,_54,_080772,_0392389,RM100000002COGZ_01_0020,

Hide Display 48069 7.SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

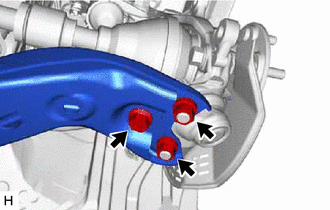

Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly from the front lower ball joint assembly.

Hide Display 43420 8.SEPARATE FRONT DRIVE SHAFT ASSEMBLY

2.875,1.073 3.083,1.073 true 2.76,0.792 3.083,0.792 3.083,0.792 3.083,1.833 true 3.01,1.844 3.323,2 0.313,0.156 10 false *a

Matchmark

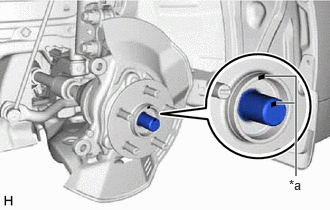

Put matchmarks on the front drive shaft assembly and the front axle hub sub-assembly.

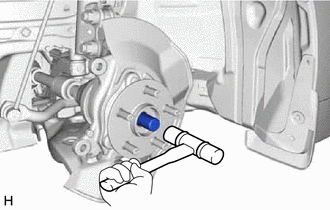

Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.

NOTICE:: ·

Do not damage the front drive shaft outboard joint boot.

·

Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

HINT:: If it is difficult to separate the front drive shaft assembly from the front axle assembly, tap the end of the front drive shaft assembly using a brass bar and a hammer.

Hide Display 9.REMOVE FRONT AXLE ASSEMBLY

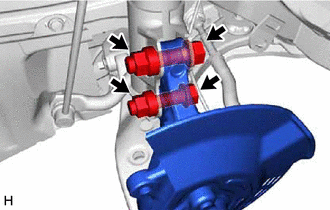

Remove the 2 bolts, 2 nuts and front axle assembly from the front shock absorber assembly.

NOTICE:: When removing the nuts, keep the bolts from rotating.

Hide Display 43502C 10.REMOVE FRONT AXLE HUB SUB-ASSEMBLY

Secure the front axle assembly between aluminum plates in a vise.

NOTICE:: Do not overtighten the vise.

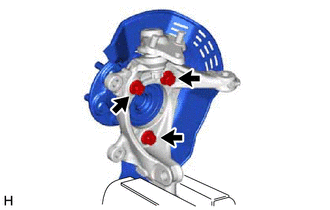

Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.

NOTICE:: ·

Do not drop the front axle hub sub-assembly.

·

Be careful not to damage the speed sensor rotor or contact surfaces.

·

Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
