RM3660EC _58 Vehicle Interior _080732 SEAT _0391518 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

CAUTION:
·
B401522

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION

·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.



NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, separate type front seatback spring assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.


HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 71910A 2.REMOVE FRONT SEAT HEADREST ASSEMBLY

a.

Remove the front seat headrest assembly from the front seat assembly.


Hide 72124 3.REMOVE FRONT OUTER SEAT TRACK BRACKET COVER

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


b.
B520268

Disengage the 2 claws to remove the front outer seat track bracket cover.


Hide 72124A 4.REMOVE FRONT INNER SEAT TRACK BRACKET COVER

a.
B520269

Disengage the 2 claws to remove the front inner seat track bracket cover.


Hide 72138N 5.REMOVE REAR OUTER SEAT TRACK BRACKET COVER

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.


b.
B520270

Disengage the 2 claws and guide to remove the rear outer seat track bracket cover.


Hide 72158E 6.REMOVE REAR INNER SEAT TRACK BRACKET COVER

a.
B520271

Disengage the 2 claws and guide to remove the rear inner seat track bracket cover.


Hide 7.REMOVE FRONT SEAT ASSEMBLY

a.

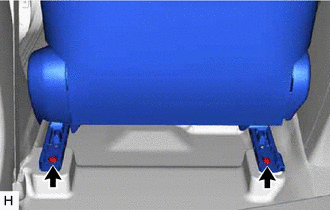

B520272

Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.


b.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


c.

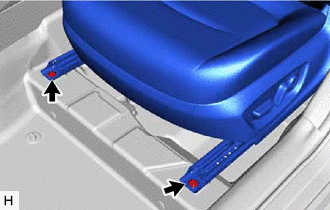

B543258

Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.


d.

Operate the reclining power seat switch knob and move the seatback to the upright position.


e.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the center position.


f.

for Driver Side:

i.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the uppermost position.



g.

Disconnect the cable from the negative (-) auxiliary battery terminal.

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

CAUTION:
for NR Series Engine:
·
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


except NR Series Engine:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.




h.

Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


i.
B474821C04
1.75,1.083 2.333,1.083 true 1.948,1.385 2.531,1.385 false 1.052,1.417 1.635,1.417 true 2.375,0.99 2.688,1.146 0.313,0.156 10 false *a 2.563,1.313 2.875,1.469 0.313,0.156 10 false *b 0.927,1.333 1.104,1.521 0.177,0.188 10 false A
*a White Housing Lock
*b Yellow CPA
V113147

Slide in this Direction


Push down the white housing lock and slide the yellow CPA as shown in the illustration. (At this time, the connector cannot be disconnected yet.)


ii.

Push down the white housing lock again and disconnect the connector.

NOTICE:

Do not push down the part (A) shown in the illustration when disconnecting the connector.




i.

Disconnect each connector and disengage each clamp under the front seat assembly.


j.
B543261

Remove the front seat assembly.

NOTICE:

Be careful not to damage the vehicle body.
