RM3660EC _58 Vehicle Interior _080732 SEAT _0391517 FRONT SEAT ASSEMBLY(for Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Manual Seat)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

CAUTION:
·
B401522

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION

·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.



NOTICE:
·

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, separate type front seatback spring assembly, separate type front seatback pad and separate type front seatback cover with the necessary parts in accordance with the extent of the collision damage.

·

If the front seat cushion airbag assembly RH has been deployed, replace the front seat cushion airbag assembly RH, front seat adjuster assembly RH, separate type front seat cushion pad and separate type front seat cushion cover with the necessary parts in accordance with the extent of the collision damage. (w/ Front Seat Cushion Airbag)



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

CAUTION:
for NR Series Engine:
·
B422343

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


except NR Series Engine:
·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



Hide 71910A 3.REMOVE FRONT SEAT HEADREST ASSEMBLY

a.

Remove the front seat headrest assembly from the front seat assembly.


Hide 72124 4.REMOVE FRONT OUTER SEAT TRACK BRACKET COVER

a.

Operate the seat track adjusting handle and move the front seat assembly to the rearmost position.


b.
B512545

Disengage the 2 claws to remove the front outer seat track bracket cover.


Hide 72124A 5.REMOVE FRONT INNER SEAT TRACK BRACKET COVER

a.
B512546

Disengage the 2 claws to remove the front inner seat track bracket cover.


Hide 72138N 6.REMOVE REAR OUTER SEAT TRACK BRACKET COVER

a.

Operate the seat track adjusting handle and move the front seat assembly to the foremost position.


b.
B512547

Disengage the 2 claws and guide to remove the rear outer seat track bracket cover.


Hide 72158E 7.REMOVE REAR INNER SEAT TRACK BRACKET COVER

a.
B512548

Disengage the 2 claws and guide to remove the rear inner seat track bracket cover.


Hide 8.REMOVE FRONT SEAT ASSEMBLY

a.
B512549

Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.


b.

Operate the seat track adjusting handle and move the front seat assembly to the rearmost position.


c.

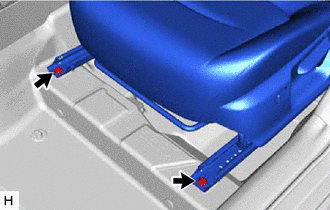

B534670

Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.


d.

for Driver Side:

i.

Operate the vertical adjusting handle LH and move the front seat assembly LH to the uppermost position.



e.

Operate the seat track adjusting handle and move the front seat assembly to the center position.


f.

Operate the reclining adjuster release handle and move the seatback to the upright position.


g.

Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


i.
B474821C04
1.75,1.083 2.333,1.083 true 1.948,1.385 2.531,1.385 false 1.052,1.417 1.635,1.417 true 2.375,0.99 2.688,1.146 0.313,0.156 10 false *a 2.563,1.313 2.875,1.469 0.313,0.156 10 false *b 0.927,1.333 1.104,1.521 0.177,0.188 10 false A
*a White Housing Lock
*b Yellow CPA
V113147

Slide in this Direction


Push down the white housing lock and slide the yellow CPA as shown in the illustration. (At this time, the connector cannot be disconnected yet.)


ii.

Push down the white housing lock again and disconnect the connector.

NOTICE:

Do not push down the part (A) shown in the illustration when disconnecting the connector.




h.

w/ Front Seat Cushion Airbag:

i.

Disconnect the front seat cushion airbag assembly RH connector under the front seat assembly RH.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.



ii.

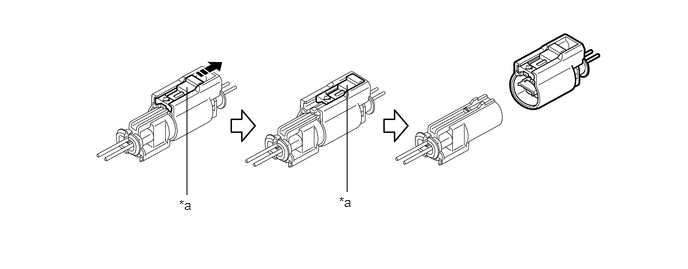

Slide the slider to release the lock, and then disconnect the connector.

B544471C02
1.948,0.906 1.948,2.031 false 3.615,0.885 3.615,2 false 1.865,2.052 2.042,2.219 0.177,0.167 10 false *a 3.531,2.021 3.708,2.188 0.177,0.167 10 false *a
*a Slider - -
V113147

Slide in this Direction - -




i.

Disconnect each connector and disengage each clamp under the front seat assembly.


j.
B534671

Remove the front seat assembly.

NOTICE:

Be careful not to damage the vehicle body.
