RM3660EC _53 Suspension _080764 FRONT SUSPENSION _0392682 FRONT LOWER SUSPENSION ARM(for LH Side) A

FRONT SUSPENSION FRONT LOWER SUSPENSION ARM(for LH Side) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: For models with hybrid transaxle, the front lower No. 1 suspension arm sub-assembly LH can be removed without removing the front suspension crossmember sub-assembly.

PROCEDURE

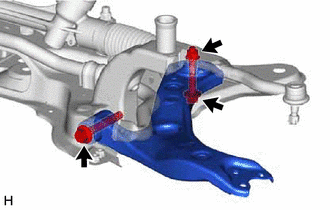

Hide Display 48069 1.TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for CVT)

Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

Hide Display 51201 2.INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (for CVT)

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202307,999999,_53,_080764,_0392686,RM100000002CQYX_01_0205,

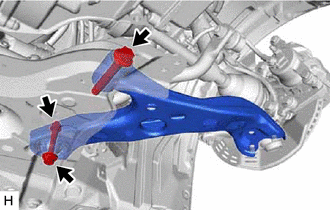

Hide Display 48069 3.TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH (for Hybrid Transaxle)

Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

Connect the front lower No. 1 suspension arm sub-assembly LH to the front lower ball joint assembly LH with the bolt and 2 nuts.

Torque:: 89 N*m (908 kgf*cm, 66 ft.*lbf)

Hide Display 4.INSTALL FRONT WHEEL (for Hybrid Transaxle)

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION202307,999999,_V1,_080956,_0392691,RM100000002CWKE_01_0001,

Hide Display 5.STABILIZE SUSPENSION

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202307,999999,_53,_080764,_0392686,RM100000002CQYX_01_0225,

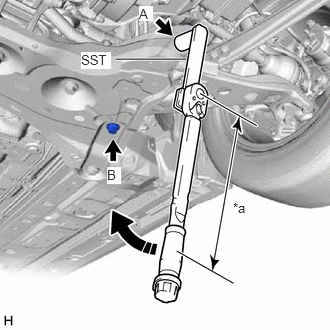

Hide Display 48069 6.FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

1.208,0.615 1.938,0.615 true 2.427,2.083 2.74,2.24 0.313,0.156 10 false *a 0.844,0.542 1.156,0.719 0.313,0.177 10 true SST 1.448,0.063 1.594,0.219 0.146,0.156 10 true A 1.115,1.74 1.26,1.917 0.146,0.177 10 true B

*a	Torque Wrench Fulcrum Length
	Turn

Using SST, fully tighten the bolt (A).

SST: 09961-01270

Torque:: Specified tightening torque : 240 N*m (2447 kgf*cm, 177 ft.*lbf)

HINT:: ·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 600 mm (1.97 ft.)):

180 N*m (1835 kgf*cm, 133 ft.*lbf)

Fully tighten the bolt (B).

Torque:: 125 N*m (1275 kgf*cm, 92 ft.*lbf)

NOTICE:: Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

Hide Display 51444A 7.INSTALL REAR ENGINE UNDER COVER LH (for Hybrid Transaxle)

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080726,_0391619,RM100000002B5Z9_01_0389,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202307,999999,_51,_146897,_0611496,RM100000002CJ21_01_0387,

Hide Display 51410 8.INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for Hybrid Transaxle)

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080726,_0391619,RM100000002B5Z9_01_0392,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202307,999999,_51,_146897,_0611496,RM100000002CJ21_01_0389,

Hide Display 9.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT202307,999999,_53,_080763,_0392675,RM100000002CWH8,

Hide Display 10.PERFORM INITIALIZATION

for HV Model:
Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

for Gasoline Model:
Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
