FRONT SUSPENSION  FRONT LOWER SUSPENSION ARM(for RH Side)  INSTALLATION

48068 1.TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (except M20 Series Engine)

a.

Temporarily install the front lower No. 1 suspension arm sub-assembly RH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

b.

for NR Series Engine:

HINT:

As the bolt on the front of the front lower No. 1 suspension arm sub-assembly RH cannot be fully tightened on the vehicle, fully tighten the bolt before the front suspension crossmember sub-assembly is installed to the vehicle.

i.

Position the front suspension crossmember sub-assembly on a level surface.

ii.

Position the front lower No. 1 suspension arm sub-assembly RH as shown in the illustration.

0.115,1.271 0.396,1.469 0.281,0.198 10 false *a 6.125,1.313 6.281,1.51 0.156,0.198 10 false A

*a

Horizontal

-

-

iii.

Tighten the bolt (A).

Torque:

240 N*m (2447 kgf*cm, 177 ft.*lbf)

51201 2.INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (except M20 Series Engine)

3.INSTALL FRONT WHEEL

4.STABILIZE SUSPENSION

48068 5.FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

a.

except NR Series Engine:

i.

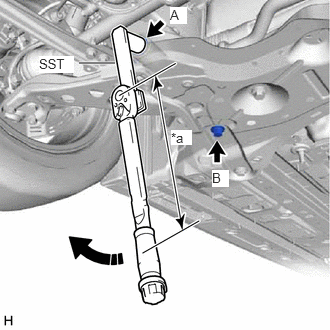

0.823,0.656 1.198,0.656 true 1.781,1.354 2,1.51 0.219,0.156 10 true *a 1.771,0.073 1.948,0.25 0.177,0.177 10 true A 2.208,1.771 2.385,1.948 0.177,0.177 10 true B 0.406,0.583 0.771,0.76 0.365,0.177 10 true SST

*a	Torque Wrench Fulcrum Length
	Turn

Using SST, fully tighten the bolt (A).

SST

09961-01270

Torque:

Specified tightening torque : 240 N*m (2447 kgf*cm, 177 ft.*lbf)

HINT:

·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using SST (fulcrum length of 200 mm (7.87 in.)) + torque wrench (fulcrum length of 600 mm (1.97 ft.)):

180 N*m (1835 kgf*cm, 133 ft.*lbf)

b.

Fully tighten the bolt (B).

Torque:

125 N*m (1275 kgf*cm, 92 ft.*lbf)

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

51443 6.INSTALL REAR ENGINE UNDER COVER RH (for M20 Series Engine)

51410 7.INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY (for M20 Series Engine)

8.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

9.PERFORM INITIALIZATION

for HV Model:

Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

for Gasoline Model:

Parking Assist Monitor System

(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
