RM3660EC _53 Suspension _080764 FRONT SUSPENSION _0392683 FRONT LOWER SUSPENSION ARM(for RH Side) A

FRONT SUSPENSION FRONT LOWER SUSPENSION ARM(for RH Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front lower No. 1 suspension arm sub-assembly RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Front wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system disabled or malfunctions	(202304,999999,_54,_080770,_0392591,RM100000002B671,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
· Tires · Suspension parts	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: The vehicle height changes because of tire replacement.
Front wheel alignment adjustment	for NR Series · Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
Front wheel alignment adjustment	except NR Series · Perform "Reset Memory" · Perform "Calibration"	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)

HINT:: For M20 Series Engine, the front lower No. 1 suspension arm sub-assembly RH can be removed/installed without removing the front suspension crossmember sub-assembly.

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL (for M20 Series Engine)

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 51410 2.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for M20 Series Engine)

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0306,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0306,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0306,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0306,

Hide Display 51443 3.REMOVE REAR ENGINE UNDER COVER RH (for M20 Series Engine)

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0328,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0328,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0328,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0328,

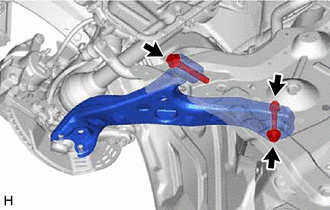

Hide Display 48068 4.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (for M20 Series Engine)

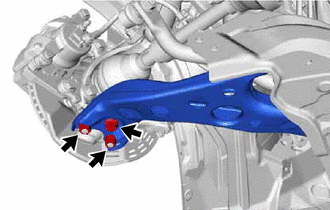

Remove the bolt and 2 nuts and separate the front lower No. 1 suspension arm sub-assembly RH from the front lower ball joint assembly RH.

Remove the 2 bolts, nut and front lower No. 1 suspension arm sub-assembly RH from the front suspension crossmember sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

Hide Display 51201 5.REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (except M20 Series Engine)

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL202307,999999,_53,_080764,_0392686,RM100000002CQYS,

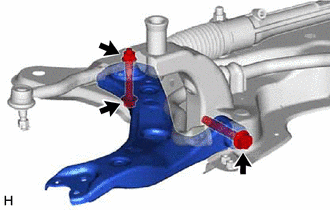

Hide Display 48068 6.REMOVE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH (except M20 Series Engine)

Remove the 2 bolts, nut and front lower No. 1 suspension arm sub-assembly RH from the front suspension crossmember sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
