RM3660EC _55 Steering _080765 STEERING GEAR / LINKAGE _0392687 STEERING GEAR A

STEERING GEAR / LINKAGE STEERING GEAR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering gear assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
: The vehicle height changes because of tire replacement. 1: If matchmarks were not placed when removing parts related to steering operation, perform end position initial setting.
Front wheel alignment adjustment	1. Perform "Reset Memory" 2. Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Brake system warning light (yellow indicator) illuminates · Slip indicator light illuminates · Electronically controlled brake system disabled or malfunctions	(202304,999999,_54,_080770,_0392591,RM100000002B671,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
· Tires · Suspension parts	Parking assist ECU initialization	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
· Steering gear assembly1 · No. 2 steering intermediate shaft assembly1	End position initial setting	-	(202307,999999,_55,_080761,_0392075,RM100000002CNVO,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
: The vehicle height changes because of tire replacement. 1: If matchmarks were not placed when removing parts related to steering operation, perform end position initial setting.
Front wheel alignment adjustment	for NR Series · Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
Front wheel alignment adjustment	except NR Series · Perform "Reset Memory" · Perform "Calibration"	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599811,RM100000002B9XU,)
· Tires · Suspension parts	Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
except NR Series · Steering gear assembly1 · No. 2 steering intermediate shaft assembly1	End position initial setting	-	(202304,999999,_55,_080761,_0392052,RM100000002B8PZ,)

PROCEDURE

Hide Display 1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

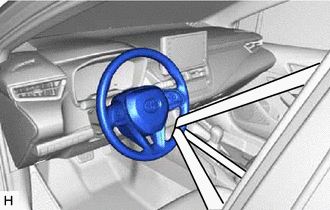

Hide Display 2.SECURE STEERING WHEEL

Secure the steering wheel with the seat belt in order to prevent rotation.

HINT:: This operation is useful to prevent damage to the spiral cable.

Hide Display 45259A 3.REMOVE COLUMN HOLE COVER SILENCER SHEET

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0135,

Hide Display 45260 4.SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0126,

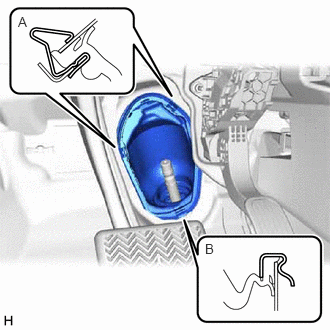

Hide Display 45025D 5.SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

0.188,0.146 0.344,0.344 0.156,0.198 10 false A 2.135,2.51 2.292,2.708 0.156,0.198 10 false B

Separate the clip (A), disengage the clip (B) from the vehicle body and separate the No. 1 steering column hole cover sub-assembly.

NOTICE:: Do not damage the clips (A) or (B).

Hide Display 6.REMOVE FRONT WHEELS

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202307,999999,_V1,_080956,_0392691,RM100000002CWK9_01_0001,

Hide Display 51410 7.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

for M15B-FKS: Click hereEngine / Hybrid System>M15B-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096197,_0454892,RM100000002BBF0_01_0306,

for M15C-FKS: Click hereEngine / Hybrid System>M15C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096206,_0454902,RM100000002BBQC_01_0306,

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0306,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0306,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0306,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0306,

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0301,

for NR Series Engine: Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 51444A 8.REMOVE REAR ENGINE UNDER COVER LH

for M15B-FKS: Click hereEngine / Hybrid System>M15B-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096197,_0454892,RM100000002BBF0_01_0327,

for M15C-FKS: Click hereEngine / Hybrid System>M15C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096206,_0454902,RM100000002BBQC_01_0327,

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0327,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0327,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0327,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0327,

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0215,

for NR Series Engine: Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0354,

Hide Display 51443C 9.REMOVE REAR ENGINE UNDER COVER RH

for M15B-FKS: Click hereEngine / Hybrid System>M15B-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096197,_0454892,RM100000002BBF0_01_0328,

for M15C-FKS: Click hereEngine / Hybrid System>M15C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_096206,_0454902,RM100000002BBQC_01_0328,

for M20A-FKS: Click hereEngine / Hybrid System>M20A-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101145,_0470307,RM100000002BCP5_01_0328,

for M20C-FKS: Click hereEngine / Hybrid System>M20C-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_105191,_0481157,RM100000002BCPM_01_0328,

for M20E-FKS: Click hereEngine / Hybrid System>M20E-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_101154,_0476817,RM100000002BCQ9_01_0328,

for M20F-FXS, M20G-FXS: Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0328,

for 8ZR-FXE: Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0251,

for NR Series Engine: Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0361,

Hide Display 51108A 10.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL202307,999999,_53,_080764,_0392686,RM100000002CQYS_01_0197,

Hide Display 51107A 11.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48810 12.SEPARATE FRONT STABILIZER LINK ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL202307,999999,_53,_080764,_0392686,RM100000002CQYS_01_0159,

Hide Display 48820B 13.SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

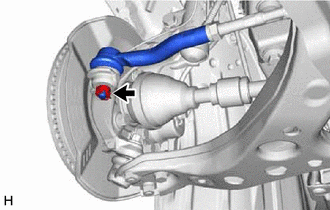

Hide Display 45047 14.SEPARATE TIE ROD END SUB-ASSEMBLY LH

Remove the cotter pin and nut.

2.385,1.375 2.177,1.375 2.177,1.375 2.177,1.146 false 2.438,1.292 2.896,1.49 0.458,0.198 10 false SST

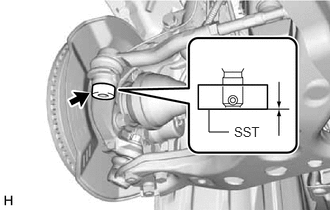

Install SST to the tie rod end sub-assembly LH.

SST: 09960-20010 (09961-02060)

NOTICE:: Make sure that the upper ends of the tie rod end sub-assembly LH and SST are aligned.

Secure SST using a string.

NOTICE:: Be sure to tighten the string firmly to secure SST to the steering knuckle LH to prevent SST from falling off.

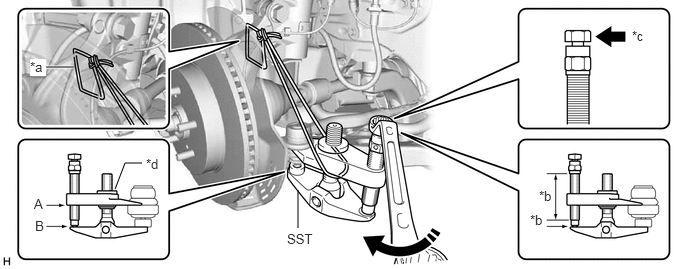

Using SST, separate the tie rod end sub-assembly LH from the steering knuckle LH.

SST: 09960-20010 (09961-02010)

0.479,0.698 0.771,0.698 true 3.104,2.375 3.104,1.979 false 1.198,1.969 1.302,1.698 1.302,1.698 1.479,1.698 false 0.313,0.615 0.479,0.792 0.167,0.177 10 true *a 5.615,1.958 5.927,2.115 0.313,0.156 10 false *b 6.583,0.292 6.896,0.448 0.313,0.156 10 false *c 1.521,1.625 1.833,1.781 0.313,0.156 10 false *d 5.521,2.208 5.833,2.365 0.313,0.156 10 false *b 0.365,2.271 0.521,2.469 0.156,0.198 10 false B 0.354,2.042 0.51,2.24 0.156,0.198 10 false A 2.99,2.406 3.406,2.615 0.417,0.208 10 false SST

*a	String	*b	Molybdenum Grease Application Area
*c	Place wrench here	*d	Center Nut
	Turn	-	-

CAUTION:: Apply molybdenum grease to the bolt threads and the tip of SST.

NOTICE:: ·

Be sure to tighten the string firmly to secure SST to the steering knuckle LH to prevent SST from falling off.

·

Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.

·

Be sure to place the wrench on the part shown in the illustration.

·

Do not damage the front disc brake dust cover.

·

Do not damage the ball joint dust cover.

·

Do not damage the steering knuckle LH.

Hide Display 45046 15.SEPARATE TIE ROD END SUB-ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48069 16.SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB>REMOVAL202307,999999,_52,_080786,_0392698,RM100000002CW52_02_0036,

Hide Display 48068 17.SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 51201 18.REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL202307,999999,_53,_080764,_0392686,RM100000002CQYS_01_0186,

Hide Display 45025D 19.REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

Remove the No. 1 steering column hole cover sub-assembly from the steering link assembly.

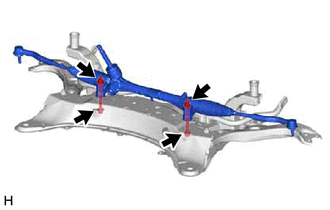

Hide Display 20.REMOVE STEERING LINK ASSEMBLY

Remove the 2 bolts, 2 nuts and steering link assembly from the front suspension crossmember sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

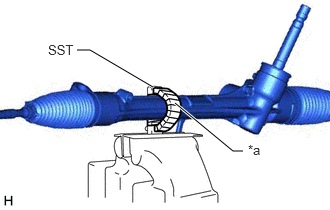

Hide Display 21.SECURE STEERING LINK ASSEMBLY

1.823,1.073 2.427,1.573 2.427,1.573 2.531,1.573 true 0.802,0.521 0.938,0.521 0.938,0.521 1.594,0.906 true 2.583,1.479 2.896,1.635 0.313,0.156 10 false *a 0.5,0.438 0.958,0.635 0.458,0.198 10 false SST

*a	Protective Tape

Using SST, secure the steering link assembly in a vise.

SST: 09612-00012

HINT:: Wrap SST with protective tape before use.

Hide Display 45047 22.REMOVE TIE ROD END SUB-ASSEMBLY LH

1.292,1.021 1.292,1.521 1.292,1.521 1.823,1.521 false 1.438,1.021 1.438,1.521 false 1.865,1.458 2.208,1.719 0.344,0.26 10 false *a

Matchmark

Put matchmarks on the tie rod end sub-assembly LH and steering gear assembly.

Remove the tie rod end sub-assembly LH and lock nut.

Hide Display 45046 23.REMOVE TIE ROD END SUB-ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.
