DOOR / HATCH HOOD LOCK CONTROL CABLE ASSEMBLY INSTALLATION
PROCEDURE
53630
1.INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
Pass the hood lock control cable assembly into the engine compartment.
Engage the grommet.
Engage each clamp to install the hood lock control cable assembly.
53601
2.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Connect the hood lock control cable assembly to install the hood lock control lever sub-assembly.
55606
3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
62112A
4.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
67914
5.INSTALL FRONT DOOR SCUFF PLATE LH
53510
6.INSTALL HOOD LOCK ASSEMBLY
Apply MP grease to the sliding areas of the hood lock assembly.
Connect the hood lock control cable assembly to the hood lock assembly.
Install the hood lock assembly with the 2 bolts and hood lock bolt.
- Torque:
- 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- HINT:
-
The hood lock nut cap is a non-reusable part. Be sure to install it after inspecting and adjusting the hood sub-assembly.
w/ Engine Hood Courtesy Switch:
Engage the clamp.
Connect the connector.
7.INSTALL HEADLIGHT ASSEMBLY LH (for GTMC Made)
53876A
8.INSTALL FRONT FENDER LINER LH
Install the 9 clips.
Install the 2 grommets and 5 screws.
Install the front fender liner LH with the 2 clips and 3 screws.
|
Install in this Direction |

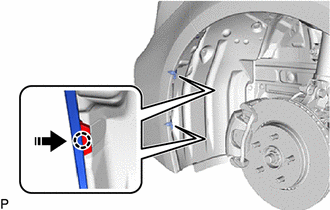

Engage the 2 claws as shown in the illustration.
Install the front bumper assembly with the 2 clips.
9.INSTALL FRONT WHEEL LH
17751
10.INSTALL INLET NO. 1 AIR CLEANER (w/ Engine Hood Courtesy Switch)
for NR Series:
for M15B-FKS:
for M15C-FKS:
for M20A-FKS:
for M20C-FKS:
for M20E-FKS:
for M20F-FXS, M20G-FXS:
53289A
11.INSTALL RADIATOR SUPPORT OPENING COVER (for TFTM Made)
for Gasoline Model:
for HV Model:
53289A
12.INSTALL RADIATOR SUPPORT OPENING COVER (for GTMC Made)
for Gasoline Model:
for HV Model:
13.ADJUST HOOD SUB-ASSEMBLY
