RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393156 HEADLIGHT ASSEMBLY(for GTMC Made) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for GTMC Made)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81150 1.INSTALL HEADLIGHT ASSEMBLY

a.

Connect each connector.


b.

Engage each clamp.


c.

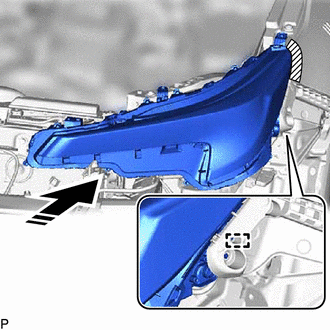

E413447C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide to temporarily install the headlight assembly as shown in the illustration.


d.

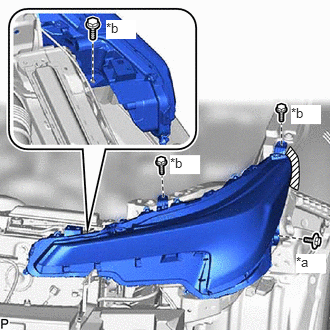

E413445C01
3.083,2.646 3.396,2.844 0.313,0.198 10 true *a 3.031,1.094 3.344,1.292 0.313,0.198 10 true *b 1.771,1.615 2.083,1.813 0.313,0.198 10 true *b 1.104,0.208 1.417,0.406 0.313,0.198 10 true *b
*a Bolt
*b Screw


Install the headlight assembly with the bolt and 3 screws.

Torque:
Bolt : 8.0 N*m (82 kgf*cm, 71 in.*lbf)


e.

Remove the protective tape.
