DOOR / HATCH HOOD ADJUSTMENT
CAUTION / NOTICE / HINT
| *a | Centering Bolt |
| *b | Standard Bolt |
- HINT:
- ·
Centering bolts are used to install the hood hinges and hood lock. The hood and hood lock cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts with washers when making adjustments.
·The specified torque for standard bolts is shown in the standard bolt chart.
PROCEDURE
53301
1.INSPECT HOOD SUB-ASSEMBLY (for TFTM Made)
53301
2.INSPECT HOOD SUB-ASSEMBLY (for GTMC Made)
53301
3.ADJUST HOOD SUB-ASSEMBLY
Horizontally and vertically adjust the hood.

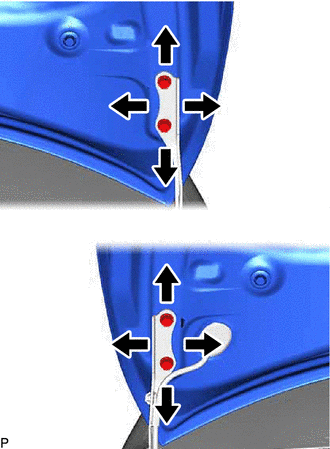

Loosen the 4 hinge bolts of the hood.
Adjust the clearance between the hood and front fenders by moving the hood.
Tighten the 4 hinge bolts after adjustment.
- Torque:
- 13 N*m (133 kgf*cm, 10 ft.*lbf)

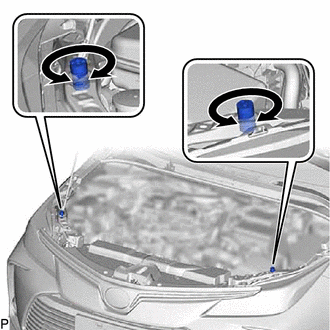

Adjust the height of the front end of the hood using the hood bumper cushions.
Adjust the 2 hood bumper cushions so that the heights of the hood and fenders are aligned.
- HINT:
-
Raise or lower the front end of the hood by turning the 2 hood bumper cushions.
Adjust the hood lock.
Remove the radiator support opening cover.
for TFTM Made Gasoline Model:
for TFTM Made HV Model:
for GTMC Made Gasoline Model:
for GTMC Made HV Model:

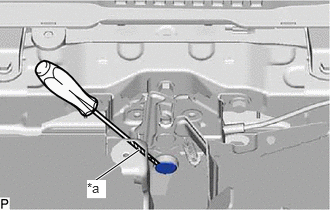

| *a | Protective Tape |
Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.

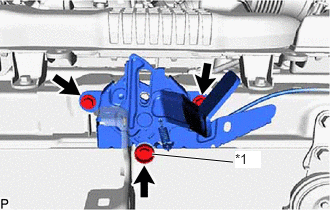

| *1 | Hood Lock Bolt |
Loosen the 2 bolts and hood lock bolt.
| *1 | Hood Lock Bolt |

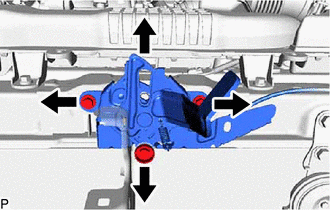

Adjust the hood lock assembly and tighten the 2 bolts and hood lock bolt.
- Torque:
- 7.5 N*m (76 kgf*cm, 66 in.*lbf)
Check that the striker can engage the hood lock assembly smoothly.

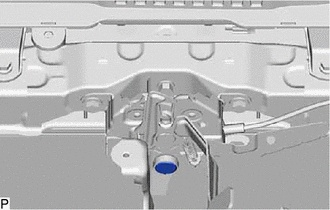

Install a new hood lock nut cap.
Install the radiator support opening cover.
for TFTM Made Gasoline Model:
for TFTM Made HV Model:
for GTMC Made Gasoline Model:
for GTMC Made HV Model:
