PARK ASSIST / MONITORING TELEVISION CAMERA(for Front) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front television camera assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Front television camera assembly* ·
Front bumper assembly* ·
Radiator grille sub-assembly* |
Front television camera view adjustment | Panoramic View Monitor System | ( 202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
Replacement or removal and installation of 2 or more parts:
·
Front television camera assembly, radiator grille sub-assembly or front bumper assembly ·
Side television camera assembly LH or outer rear view mirror assembly LH ·
Side television camera assembly RH or outer rear view mirror assembly RH ·
Rear television camera assembly |
Television camera view adjustment | Panoramic View Monitor System | (202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
PROCEDURE
1.REMOVE FRONT BUMPER ASSEMBLY
86799D
2.REMOVE FRONT TELEVISION CAMERA WIRE
53111
3.REMOVE RADIATOR GRILLE
86790B

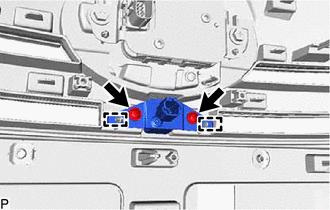

4.REMOVE FRONT TELEVISION CAMERA ASSEMBLY
Remove the 2 screws.
Disengage the 2 guides to remove the front television camera assembly.
