PARK ASSIST / MONITORING PARKING ASSIST ECU INSTALLATION
PROCEDURE
86792C
1.INSTALL PARKING ASSIST ECU
86791C
2.INSTALL NO. 1 PARKING ASSIST ECU BRACKET
a.
Install the No. 1 parking assist ECU bracket with the 4 bolts.
3.INSTALL PARKING ASSIST ECU WITH BRACKET
a.
Install the parking assist ECU with bracket with the 2 bolts.
b.

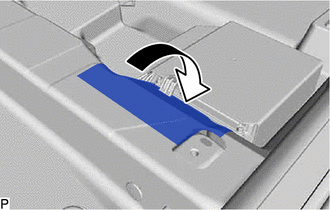

Install the front floor carpet assembly to its original position as shown in the illustration.
c.
Connect each connector.
86796
4.INSTALL PARKING ASSIST ECU COVER
a.
Engage the guide and 2 clips to install the parking assist ECU cover.
5.INSTALL FRONT SEAT ASSEMBLY LH
