RM3660EC _59 Vehicle Exterior _139017 ACOUSTIC VEHICLE ALERTING SYSTEM _0582455 ACOUSTIC VEHICLE ALERTING SYSTEM J

ACOUSTIC VEHICLE ALERTING SYSTEM  ACOUSTIC VEHICLE ALERTING SYSTEM  There is No Sound Made


DESCRIPTION

Based on signals received from each ECU, the vehicle approaching speaker controller outputs warning sounds through the vehicle approaching speaker assembly.

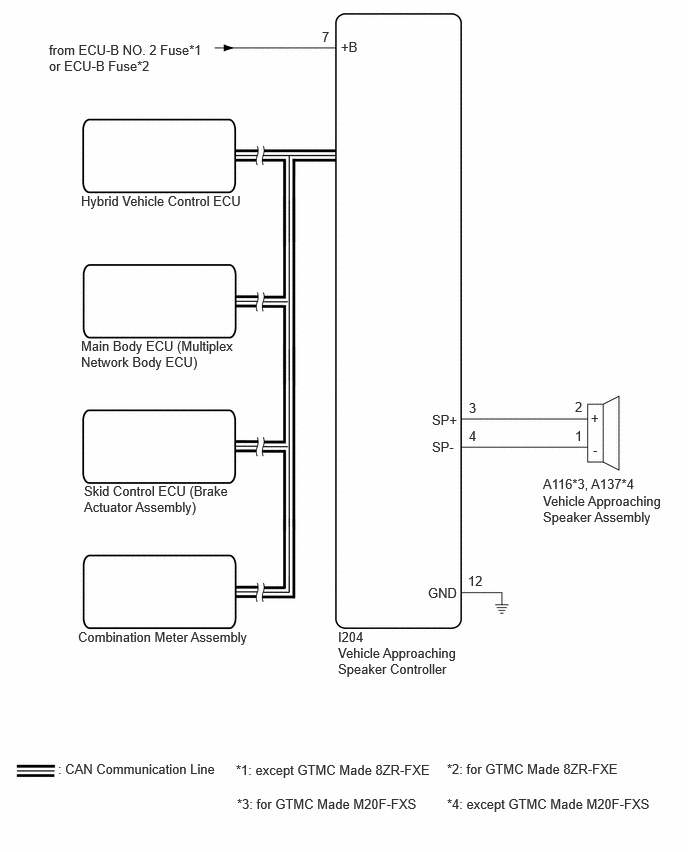

WIRING DIAGRAM

E519232E01
5.656,5.135 6.948,5.625 1.292,0.49 10 false Vehicle Approaching Speaker Assembly 4.5,4.292 4.958,4.49 0.458,0.198 10 false SP+ 4.5,4.573 4.958,4.771 0.458,0.198 10 false SP- 4.458,6.094 4.917,6.292 0.458,0.198 10 false GND 3.521,6.719 4.833,7.208 1.313,0.49 10 false Vehicle Approaching Speaker Controller 0.813,6.552 2.76,6.854 1.948,0.302 10 false Combination Meter Assembly 0.844,2.01 3.51,2.229 2.667,0.219 10 false Hybrid Vehicle Control ECU 0.844,3.521 2.5,4.031 1.656,0.51 10 false Main Body ECU (Multiplex Network Body ECU) 0.875,5.031 2.417,5.521 1.542,0.49 10 false Skid Control ECU (Brake Actuator Assembly) 0.51,0.438 2.188,0.833 1.677,0.396 10 false from ECU-B NO. 2 Fuse*1 or ECU-B Fuse*2 3.552,0.406 4.01,0.604 0.458,0.198 10 false +B 0.604,7.927 2.448,8.135 1.844,0.208 10 false : CAN Communication Line 3.354,0.302 3.51,0.5 0.156,0.198 10 false 7 4.885,4.167 5.042,4.365 0.156,0.198 10 false 3 4.885,4.458 5.042,4.656 0.156,0.198 10 false 4 4.875,5.969 5.313,6.24 0.438,0.271 10 false 12 5.99,4.458 6.146,4.656 0.156,0.198 10 false 1 5.99,4.156 6.146,4.354 0.156,0.198 10 false 2 5.656,4.958 6.917,5.167 1.26,0.208 10 false A116*3, A137*4 3.521,6.552 3.979,6.75 0.458,0.198 10 false I204 6.156,4.271 6.313,4.469 0.156,0.198 10 false + 6.177,4.604 6.333,4.802 0.156,0.198 10 false - 2.458,7.938 4.75,8.156 2.292,0.219 10 false *1: except GTMC Made 8ZR-FXE 4.656,7.927 6.948,8.146 2.292,0.219 10 false *2: for GTMC Made 8ZR-FXE 2.469,8.292 4.76,8.51 2.292,0.219 10 false *3: for GTMC Made M20F-FXS 4.656,8.292 6.948,8.51 2.292,0.219 10 false *4: except GTMC Made M20F-FXS

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

The acoustic vehicle alerting system uses the CAN communication system. Inspect the communication functions by following How to Proceed with Troubleshooting.

Click hereVehicle Exterior>ACOUSTIC VEHICLE ALERTING SYSTEM>ACOUSTIC VEHICLE ALERTING SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING



PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Acoustic Vehicle Alerting System > Trouble Codes
50001 458

Result:
Result Proceed to
B135013 and B135019 are not output A
B135013 or B135019 is output B



A

2.PERFORM ACTIVE TEST USING GTS

B

2.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Acoustic Vehicle Alerting System > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Proximity Sound (20km/h,12MPH) 20 km/h (12 mph) vehicle proximity warning sound OFF or ON -
Body Electrical > Acoustic Vehicle Alerting System > Active Test
Tester Display
Proximity Sound (20km/h,12MPH)
50004 458 42005

Result:
Result Proceed to
The warning sound is produced A
The warning sound is not produced B



A

B

3.CHECK HARNESS AND CONNECTOR (VEHICLE APPROACHING SPEAKER CONTROLLER - POWER SOURCE AND BODY GROUND)
3.CHECK HARNESS AND CONNECTOR (VEHICLE APPROACHING SPEAKER CONTROLLER - POWER SOURCE AND BODY GROUND)
a.

Disconnect the I204 vehicle approaching speaker controller connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I204-7 (+B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I204-12 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
