SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(for NR Series Engine)  B1900  Short in P/T Squib (RH) Circuit  B1901  Open in P/T Squib (RH) Circuit  B1902  Short in P/T Squib (RH) Circuit (to Ground)  B1903  Short in P/T Squib (RH) Circuit (to +B)


DESCRIPTION

The front pretensioner squib RH circuit consists of the airbag sensor with ECU assembly and front seat outer belt assembly RH.

The airbag sensor with ECU assembly uses this circuit to deploy the pretensioner when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the front pretensioner squib RH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B1900 Short in P/T Squib (RH) Circuit
·

The airbag sensor with ECU assembly detects a line short in the front pretensioner squib RH circuit during the primary check.

·

Front pretensioner squib RH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Floor wire

·

Front pretensioner squib RH (Front seat outer belt assembly RH)

·

Airbag sensor with ECU assembly


Comes on Applies to check mode
B1901 Open in P/T Squib (RH) Circuit
·

The airbag sensor with ECU assembly detects an open in the front pretensioner squib RH circuit.

·

Front pretensioner squib RH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Floor wire

·

Front pretensioner squib RH (Front seat outer belt assembly RH)

·

Airbag sensor with ECU assembly


Comes on Applies to check mode
B1902 Short in P/T Squib (RH) Circuit (to Ground)
·

The airbag sensor with ECU assembly detects a short to ground in the front pretensioner squib RH circuit.

·

Front pretensioner squib RH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Floor wire

·

Front pretensioner squib RH (Front seat outer belt assembly RH)

·

Airbag sensor with ECU assembly


Comes on Applies to check mode
B1903 Short in P/T Squib (RH) Circuit (to +B)
·

The airbag sensor with ECU assembly detects a short to B+ in the front pretensioner squib RH circuit.

·

Front pretensioner squib RH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Floor wire

·

Front pretensioner squib RH (Front seat outer belt assembly RH)

·

Airbag sensor with ECU assembly


Comes on Applies to check mode

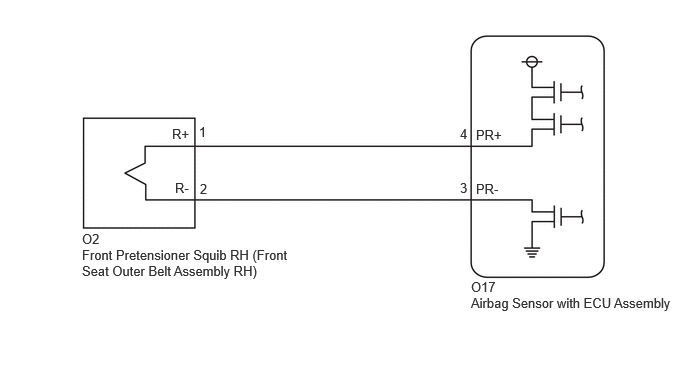

WIRING DIAGRAM

B617299E04
1.792,1.313 2.271,1.573 0.479,0.26 10 false R+ 2.073,1.292 2.552,1.552 0.479,0.26 10 false 1 2.083,1.885 2.563,2.146 0.479,0.26 10 false 2 0.854,2.406 1.333,2.667 0.479,0.26 10 false O2 0.854,2.573 3.01,2.969 2.156,0.396 10 false Front Pretensioner Squib RH (Front Seat Outer Belt Assembly RH) 4.906,2.906 5.385,3.167 0.479,0.26 10 false O17 4.906,3.073 7.125,3.365 2.219,0.292 10 false Airbag Sensor with ECU Assembly 4.792,1.313 5.271,1.573 0.479,0.26 10 false 4 4.792,1.875 5.271,2.135 0.479,0.26 10 false 3 1.823,1.875 2.302,2.135 0.479,0.26 10 false R- 4.958,1.323 5.438,1.583 0.479,0.26 10 false PR+ 4.958,1.885 5.438,2.146 0.479,0.26 10 false PR-

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




HINT:
·

Perform the simulation method by selecting check mode (Signal Check) using the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>CHECK MODE PROCEDURE

·

After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city road or rough road.

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING



PROCEDURE

1.CHECK CONNECTORS
a.
C238348C01
0.531,1.198 0.531,0.688 0.531,0.688 0.708,0.688 false 1.365,1.198 1.365,0.688 1.365,0.688 1.542,0.688 false 0.656,1.188 1.052,1.438 0.396,0.25 10 D 1.031,1.188 1.354,1.427 0.323,0.24 10 C 1.604,1.188 1.938,1.552 0.333,0.365 10 B 1.99,1.188 2.333,1.542 0.344,0.354 10 A 2.438,0.896 2.75,1.208 0.313,0.313 10 *2 0.76,0.604 1.021,0.854 0.26,0.25 10 *1 1.583,0.604 1.854,0.896 0.271,0.292 10 *3
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor with ECU Assembly
*3 Floor Wire


Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.

Check that the connectors are properly connected to the front seat outer belt assembly RH and airbag sensor with ECU assembly.

OK:

The connectors are properly connected.


HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.



d.

Disconnect the connectors from the front seat outer belt assembly RH and airbag sensor with ECU assembly.


e.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



f.

Check that the floor wire connector (on the front seat outer belt assembly RH side) is not loose, deformed or damaged.

OK:

The airbag connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.



g.

Check that the short springs of the activation prevention mechanism of the floor wire connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.



Result:
Proceed to
OK
NG



OK

2.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH

NG

REPLACE FLOOR WIRE

2.CHECK FRONT SEAT OUTER BELT ASSEMBLY RH
a.
C238358C63
0.458,2.25 0.833,2.5 0.375,0.25 1.792,2.344 1.969,2.344 false 0.708,0.958 0.708,0.51 0.708,0.51 0.552,0.51 false 0.385,0.438 0.875,0.844 0.49,0.406 10 false *1 2.281,0.656 2.76,1.073 0.479,0.417 10 false *2 1.823,0.938 2.208,1.458 0.385,0.521 10 false A 1.677,0.938 2.167,1.417 0.49,0.479 10 false B 1.167,0.948 1.917,1.448 0.75,0.5 10 false C 0.823,0.948 1.604,1.344 0.781,0.396 10 false D 2.01,2.26 2.448,2.594 0.438,0.333 10 false SST 0.302,1.896 0.698,2.26 0.396,0.365 10 false *a 0.542,2.292 0.99,2.76 0.448,0.469 10 false O2

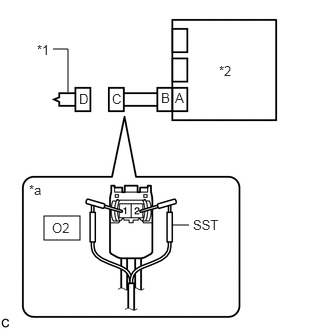

*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor with ECU Assembly
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)


Connect the connector to the airbag sensor with ECU assembly.


b.

Connect SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect a tester to the front seat outer belt assembly RH for measurement, as this may lead to a serious injury due to pretensioner deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting it.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) battery terminal.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 188

f.

Turn the ignition switch off.


g.

Turn the ignition switch to ON, and wait for at least 60 seconds.


h.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 188
OK:

DTC B1900, B1901, B1902 or B1903 is not output.


HINT:

Codes other than DTCs B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.



i.

Turn the ignition switch off.


j.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



k.

Disconnect SST from connector C.


Result:
Proceed to
OK
NG



OK

REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL


NG

3.CHECK FLOOR WIRE
3.CHECK FLOOR WIRE
a.
C237240C99
0.583,2.167 0.958,2.417 0.375,0.25 1.604,2.26 1.875,1.906 false 1.135,1.927 1.417,2.26 false 0.698,1.052 0.698,0.635 0.698,0.635 0.542,0.635 false 1.396,1.052 1.396,0.635 1.396,0.635 1.24,0.635 false 0.375,0.552 0.844,0.948 0.469,0.396 10 false *1 2.271,0.76 2.604,1.135 0.333,0.375 10 false *2 1.885,1.042 2.313,1.5 0.427,0.458 10 false A 1.583,1.042 1.99,1.635 0.406,0.594 10 false B 1.125,1.042 1.542,1.552 0.417,0.51 10 false C 0.823,1.042 1.24,1.427 0.417,0.385 10 false D 1.917,1.833 2.26,2.177 0.344,0.344 10 false R- 0.927,1.833 1.417,2.177 0.49,0.344 10 false R+ 0.26,1.813 0.563,2.188 0.302,0.375 10 false *a 1.073,0.563 1.667,1.063 0.594,0.5 10 false *3 0.677,2.198 1.073,2.531 0.396,0.333 10 false O2

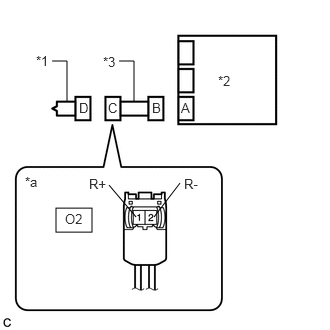

*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor with ECU Assembly
*3 Floor Wire
*a Front view of wire harness connector
(to Front Seat Outer Belt Assembly RH)


Disconnect the floor wire from the airbag sensor with ECU assembly.


b.

Check for a short to B+ in the circuit.

i.

Connect the cable to the negative (-) battery terminal.


ii.

Turn the ignition switch to ON.


iii.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O2-1 (R+) - Body ground Ignition switch ON Below 1 V
O2-2 (R-) - Body ground Ignition switch ON Below 1 V



iv.

Turn the ignition switch off.


v.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.




c.

Check for an open in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O2-1 (R+) - O2-2 (R-) Always Below 1 Ω




d.

Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O2-1 (R+) - Body ground Always 1 MΩ or higher
O2-2 (R-) - Body ground Always 1 MΩ or higher




e.

Check for a short in the circuit.

i.

Release the activation prevention mechanism built into connector B.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>SYSTEM DESCRIPTION


ii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O2-1 (R+) - O2-2 (R-) Always 1 MΩ or higher



iii.

Restore the released activation prevention mechanism of connector B to the original condition.



Result:
Proceed to
OK
NG



OK

4.CHECK DTC

NG

REPLACE FLOOR WIRE

4.CHECK DTC
a.
C238241C01
0.844,1.292 0.844,0.844 0.844,0.844 0.552,0.844 false 0.396,0.781 0.729,1.083 0.333,0.302 10 false *1 0.979,1.302 1.156,1.531 0.177,0.229 10 false D 1.135,1.302 1.344,1.5 0.208,0.198 10 false C 1.583,1.302 1.781,1.5 0.198,0.198 10 false B 1.74,1.302 1.938,1.542 0.198,0.24 10 false A 2.146,1.021 2.438,1.26 0.292,0.24 10 false *2
*1 Front Seat Outer Belt Assembly RH
*2 Airbag Sensor with ECU Assembly


Connect the connectors to the front seat outer belt assembly RH and airbag sensor with ECU assembly.


b.

Connect the cable to the negative (-) battery terminal.


c.

Turn the ignition switch to ON, and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the ignition switch off.


f.

Turn the ignition switch to ON, and wait for at least 60 seconds.


g.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 188
OK:

DTC B1900, B1901, B1902 or B1903 is not output.


HINT:

Codes other than DTCs B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
