RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391778 FRONT SEAT OUTER BELT ASSEMBLY A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat outer belt assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,

Hide Display 64490 2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0028,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If an airbag deploys for any reason, it may cause a serious injury.

Hide Display 73350C 4.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0021,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0024,

Hide Display 5.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0022,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,

Hide Display 72693 6.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0024,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0001,

Hide Display 67914 7.REMOVE FRONT DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0001,

Hide Display 62312B 8.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Disconnect the front door opening trim weatherstrip.

Hide Display 67918A 9.REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0002,

Hide Display 67918A 10.REMOVE REAR DOOR SCUFF PLATE (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0308,

Hide Display 62332A 11.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Disconnect the rear door opening trim weatherstrip.

Hide Display 73233 12.REMOVE LAP BELT OUTER ANCHOR COVER

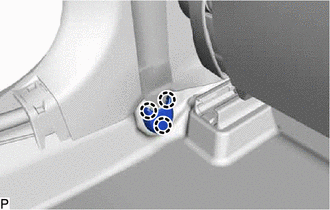

Disengage the 3 claws to remove the lap belt outer anchor cover.

Hide Display 73220 13.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

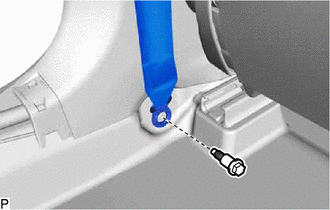

Remove the bolt to disconnect the floor anchor of the front seat outer belt assembly.

Hide Display 62414A 14.REMOVE CENTER PILLAR LOWER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0004,

Hide Display 62412B 15.REMOVE CENTER PILLAR UPPER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_080744,_0394267,RM100000002D1GZ_02_0217,

Hide Display 73220 16.REMOVE FRONT SEAT OUTER BELT ASSEMBLY

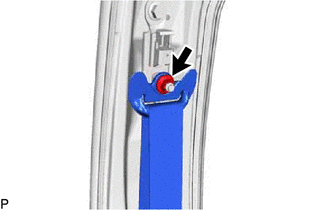

Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

1.25,1.052 1.25,0.844 true 1.229,0.531 1,0.615 true 1.188,1.042 1.5,1.24 0.313,0.198 10 false *a 1.25,0.438 1.563,0.635 0.313,0.198 10 false *b 0.979,0.323 1.292,0.521 0.313,0.198 10 false *c

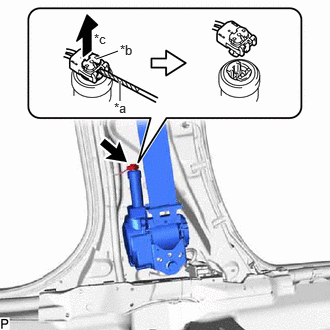

*a	Protective Tape
*b	Locking Button
*c	Release

Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

HINT:: Tape the screwdriver tip before use.

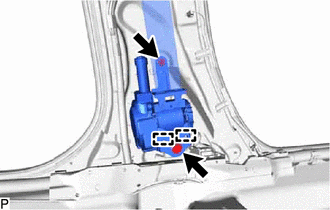

Remove the 2 bolts.

Disengage the 2 guides to remove the front seat outer belt assembly.

Hide Display 73200A 17.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

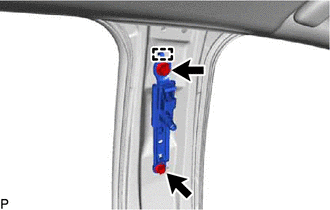

Remove the 2 bolts.

Disengage the guide to remove the front shoulder belt anchor adjuster assembly.
