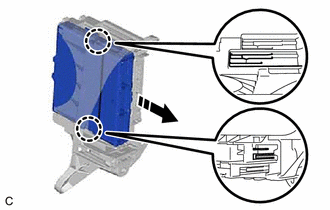

STOP AND START  ENGINE STOP AND START ECU  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine stop and start ECU removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of Engine stop and start ECU	1. Upload the number of starter operations 2. Reset air conditioning information 3. Learning air conditioning information 4. Clear the zero point calibration data 5. Perform zero point calibration of the deceleration sensor 6. Check the oil pump with solenoid assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System
