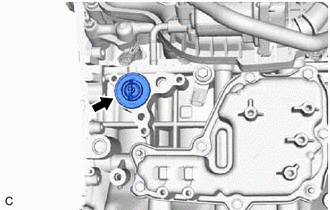

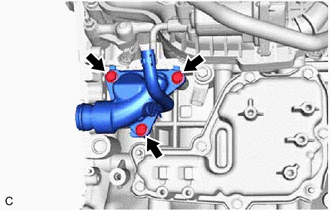

NR Series COOLING  THERMOSTAT(for Cylinder Block)  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during thermostat (for Cylinder Block) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Perform Vehicle Identification Number (VIN) or frame number registration	DTC is stored	(201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
	Code registration (Immobiliser system)	Engine start	See Service Bulletin for the registration method
Replacement of piston ring	Clear Heavy Knock History	-	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
· Replacement of engine assembly · Gas leaks from exhaust system	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
Replacement of starter assembly	Clear the number of starter operations	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of battery	Integrated current value initialization
Replacement of continuously variable transaxle assembly	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Front wheel alignment adjustment	· Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are stored · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System
