RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392557 REAR DOOR WINDOW FRAME MOULDING A

EXTERIOR PANELS / TRIM  REAR DOOR WINDOW FRAME MOULDING  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door window frame moulding removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Door window regulator sub-assembly*

·

Power window regulator motor sub-assembly*

·

Door glass*

·

Door glass run*

·

Door belt moulding*

·

Door glass weatherstrip inner*


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Catch protection function

·

Window open warning function


for NR Series Engine Initialization:(Click here)
except NR Series Engine Registration:(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:
·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Door window regulator sub-assembly*

·

Power window regulator motor sub-assembly*

·

Door glass*

·

Door glass run*

·

Door belt moulding*

·

Door glass weatherstrip inner*


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Catch protection function

·

Window open warning function


(Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:
·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75762B 2.REMOVE REAR DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

HINT:

When removing the rear door window frame moulding (center pillar side), heat the vehicle body and rear door window frame moulding (center pillar side) using a heat light.


Heating Temperature
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Rear Door Window Frame Moulding (Center Pillar Side) 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body or rear door window frame moulding (center pillar side) excessively.


a.

Using a heat light, heat the rear door window frame moulding (center pillar side).


b.

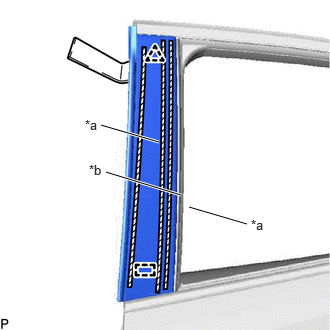

B544853C01
1.052,1.302 1.656,1.479 true 1.969,2.156 2.573,2.333 true 1.104,1.792 1.885,2.031 true 0.885,1.219 1.198,1.375 0.313,0.156 10 false *a 0.927,1.688 1.24,1.844 0.313,0.156 10 false *b 2.615,2.26 2.927,2.417 0.313,0.156 10 true *a
*a Double-sided Tape
*b Caulking Sponge


Using a moulding remover, disengage the clip and guide, and separate the double-sided tape and caulking sponge to remove the rear door window frame moulding (center pillar side).


Hide 67872 3.DISCONNECT REAR DOOR WEATHERSTRIP

a.

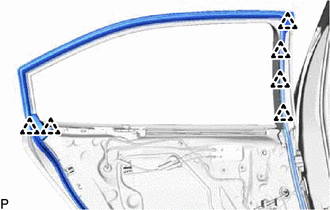

B540000

Disengage the 6 clips and disconnect the rear door weatherstrip.


Hide 75764A 4.REMOVE REAR DOOR UPPER WINDOW FRAME MOULDING

a.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


b.
B360296C07
0.542,0.906 0.833,1.219 false 0.875,1.156 1.188,1.313 0.313,0.156 10 false *a 0.333,1.5 0.49,1.698 0.156,0.198 10 false A
*a Tape


Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement
A 5.0 mm (0.197 in.)


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



c.

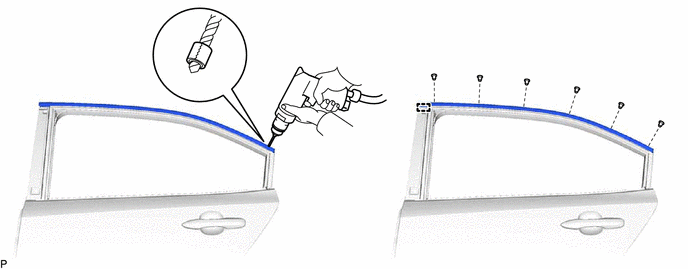

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 6 rivets.

B536295

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




d.

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.


e.

Disengage the guide to remove the rear door upper window frame moulding.


Hide 75766A 5.REMOVE REAR DOOR REAR WINDOW FRAME MOULDING

a.

Insert a 4.0 mm (0.157 in.) drill bit into a drill.


b.
B360296C07
0.542,0.906 0.833,1.219 false 0.875,1.156 1.188,1.313 0.313,0.156 10 false *a 0.333,1.5 0.49,1.698 0.156,0.198 10 false A
*a Tape


Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

Standard Measurement:
Area Measurement
A 5.0 mm (0.197 in.)


NOTICE:

Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.



c.

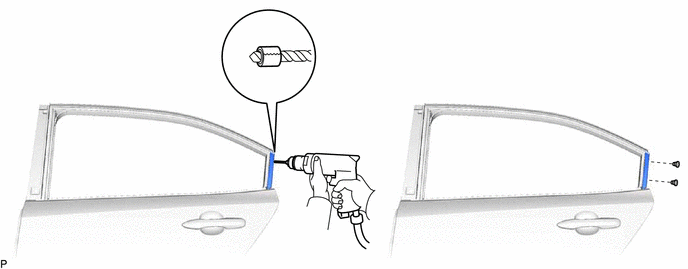

Lightly press the drill bit against the rivets to drill off the rivet flanges, and remove the 2 rivets.

B536296

CAUTION:

Be careful of the drilled rivets, as they may be hot.


NOTICE:
·

Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

·

Prying the rivets with the drill may damage the rivet installation holes or drill bit.




d.

Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.


e.

Remove the rear door rear window frame moulding.
