EXTERIOR PANELS / TRIM REAR DOOR BELT MOULDING REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door belt moulding removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Door window regulator sub-assembly* ·
Power window regulator motor sub-assembly* ·
Door glass* ·
Door glass run* ·
Door belt moulding* ·
Door glass weatherstrip inner* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
for NR Series Engine Initialization:( 202304,999999,_59,_080745,_0600092,RM100000002BB4K,)
except NR Series Engine Registration:( 202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System Perform steering sensor zero point calibration ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
·
Door window regulator sub-assembly* ·
Power window regulator motor sub-assembly* ·
Door glass* ·
Door glass run* ·
Door belt moulding* ·
Door glass weatherstrip inner* |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function ·
Catch protection function ·
Window open warning function |
(202304,999999,_59,_080745,_0600091,RM100000002BB3M,)
|
- NOTICE:
-
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- HINT:
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. ( 202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
·Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
64490
2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)
3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,
69284G
4.REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
5.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
67604
6.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
86160B
7.REMOVE REAR SPEAKER ASSEMBLY
67674A
8.REMOVE REAR DOOR FRAME GARNISH
67848A
9.REMOVE REAR DOOR NO. 1 VENT SEAL
67858A
10.REMOVE REAR DOOR PANEL PROTECTOR
67842E
11.REMOVE REAR DOOR SERVICE HOLE COVER
68152C
12.REMOVE REAR DOOR GLASS RUN
67872
13.DISCONNECT REAR DOOR WEATHERSTRIP
Disconnect the rear door weatherstrip until the screw of the rear door window division bar sub-assembly is visible.
67408H
14.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
68104
15.REMOVE REAR DOOR GLASS SUB-ASSEMBLY
16.REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP WITH REAR DOOR QUARTER WINDOW GLASS
75740
17.REMOVE REAR DOOR BELT MOULDING
|

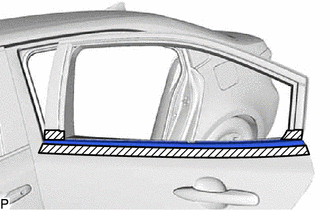

Protective Tape |
Apply protective tape around the rear door belt moulding as shown in the illustration.
|

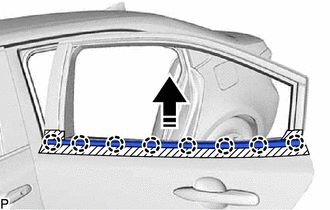

Remove in this Direction |
Disengage the 8 claws as shown in the illustration to remove the rear door belt moulding.
