RM3660EC _59 Vehicle Exterior _080745 WINDOW / GLASS _0600092 POWER WINDOW CONTROL SYSTEM(for NR Series Engine) D

WINDOW / GLASS POWER WINDOW CONTROL SYSTEM(for NR Series Engine) INITIALIZATION

INITIALIZE POWER WINDOW CONTROL SYSTEM (ALL DOORS)

NOTICE:: ·

When a power window regulator motor assembly, door window regulator sub-assembly, door belt moulding or door glass weatherstrip inner have been removed and installed, or if a power window regulator motor assembly was reused when a door glass or door glass run was replaced, the power window control system must be initialized. Functions such as the auto up and down function, jam protection function, catch protection function, remote control function, key-linked function, wireless transmitter-linked function, key-off operation function and window open warning function will not operate if initialization is not performed.

·

When a power window regulator motor assembly is replaced, DTC B2313 is stored. Clear the DTC after initialization.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202304,999999,_59,_080745,_0600092,RM100000002BB4O,

·

When performing initialization, do not perform any other procedures.

·

When performing initialization, use the power window switch of each door to initialize each power window.

·

If initialization cannot be completed properly, the LIN communication system may be malfunctioning.

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for NR Series Engine)>HOW TO PROCEED WITH TROUBLESHOOTING202304,999999,_57,_080743,_0600577,RM100000002BDCH,

·

Make sure to park the vehicle and turn off all electrical systems before performing initialization. Initialization will be canceled if the vehicle is driven during initialization.

·

Make sure not to hit, strike or vibrate the door glass during initialization because the vehicle is learning the sliding resistance of the door glass.

·

Make sure not to turn the ignition switch off during initialization.

HINT:: If the battery has been replaced, it is not necessary to initialize the power window regulator motor assemblies.

Perform initialization according to the table below.

Condition of Power Window	Proceed to
Power window regulator motor assembly has been replaced with a new one.	Procedure A
· Power window regulator motor assembly has been removed/installed or a door glass and/or door glass run, etc. have been removed/installed or replaced with new ones. · Power window cannot be fully opened via a down operation (door glass remains visible). · Power window cannot be fully closed (erroneously operates in reverse) after initialization. · Power window cannot be fully opened (erroneously stops) after initialization. · Instructions to perform initialization appear in a troubleshooting procedure. HINT: Use this procedure if a power window regulator motor assembly is being reused.	Procedure B
Power window unexpectedly operates in reverse or stops due to a change in the sliding resistance after a fitting adjustment is made.	Procedure C

Procedure A

Perform window position initialization (fully closed, fully open) and sliding resistance learning.

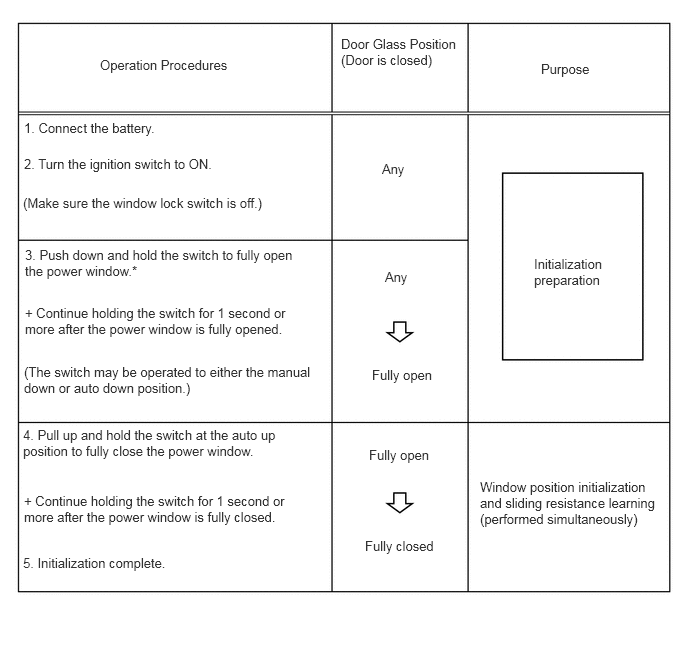

1.042,0.594 2.479,0.854 1.438,0.26 10 false Operation Procedures 3.552,0.375 4.802,0.75 1.25,0.375 10 false Door Glass Position (Door is closed) 5.635,0.635 6.198,1.021 0.563,0.385 10 false Purpose 0.25,1.25 2.771,1.51 2.521,0.26 10 false 1. Connect the battery. 0.25,1.625 2.688,1.875 2.438,0.25 10 false 2. Turn the ignition switch to ON. 0.24,2.031 3.021,2.26 2.781,0.229 10 false (Make sure the window lock switch is off.) 3.979,1.677 4.365,1.969 0.385,0.292 10 false Any 4.01,2.802 4.396,3.094 0.385,0.292 10 false Any 3.875,3.823 4.719,4.052 0.844,0.229 10 false Fully open 3.802,5.604 4.76,5.802 0.958,0.198 10 false Fully closed 5.563,2.667 6.396,3.083 0.833,0.417 10 false Initialization preparation 0.26,2.573 3.135,2.927 2.875,0.354 10 false 3. Push down and hold the switch to fully open the power window.* 0.26,3.177 3.052,3.604 2.792,0.427 10 false + Continue holding the switch for 1 second or more after the power window is fully opened. 0.25,3.792 3.271,4.156 3.021,0.365 10 false (The switch may be operated to either the manual down or auto down position.) 0.24,4.448 2.969,4.802 2.729,0.354 10 false 4. Pull up and hold the switch at the auto up position to fully close the power window. 0.25,5.135 3.01,5.615 2.76,0.479 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.24,5.781 1.823,6.042 1.583,0.26 10 false 5. Initialization complete. 5,4.99 6.896,5.635 1.896,0.646 10 false Window position initialization and sliding resistance learning (performed simultaneously) 3.844,4.656 4.688,4.885 0.844,0.229 10 false Fully open

HINT:: *: Even if the door glass is in the fully open position before performing step 3, push down and hold the switch for 1 second or more.

Procedure B

Perform window position initialization (fully closed, fully open) and sliding resistance learning.

Reset the power window position, perform window position initialization (fully closed, fully opened) and sliding resistance learning.

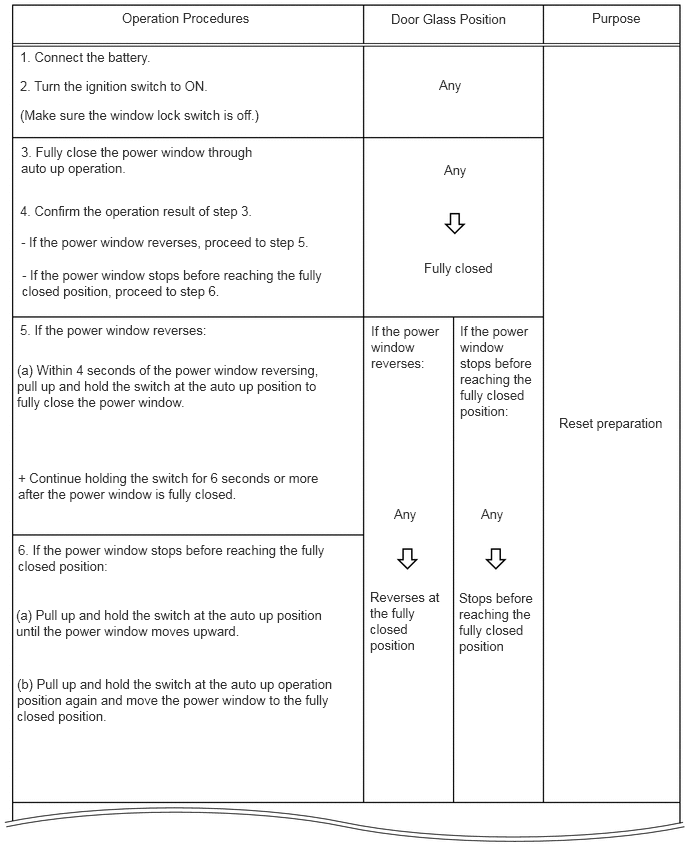

1.271,0.104 2.667,0.344 1.396,0.24 10 false Operation Procedures 4.073,0.115 5.469,0.354 1.396,0.24 10 false Door Glass Position 6.167,0.104 6.802,0.365 0.635,0.26 10 false Purpose 0.208,0.51 2.771,0.74 2.563,0.229 10 false 1. Connect the battery. 0.208,0.813 3.188,1.01 2.979,0.198 10 false 2. Turn the ignition switch to ON. 0.208,1.115 3.521,1.333 3.313,0.219 10 false (Make sure the window lock switch is off.) 4.573,0.802 4.938,1.115 0.365,0.313 10 false Any 4.625,1.688 4.99,2 0.365,0.313 10 false Any 4.417,2.708 5.365,2.906 0.948,0.198 10 false Fully closed 0.219,1.5 2.708,1.948 2.49,0.448 10 false 3. Fully close the power window through auto up operation. 0.208,2.115 3.521,2.333 3.313,0.219 10 false 4. Confirm the operation result of step 3. 0.219,2.438 3.531,2.656 3.313,0.219 10 false - If the power window reverses, proceed to step 5. 0.229,2.781 3.74,3.208 3.51,0.427 10 false - If the power window stops before reaching the fully closed position, proceed to step 6. 3.865,3.365 4.635,4.51 0.771,1.146 10 false If the power window reverses: 4.792,3.365 5.583,4.604 0.792,1.24 10 false If the power window stops before reaching the fully closed position: 5.823,4.323 7.031,4.573 1.208,0.25 10 false Reset preparation 4.104,5.271 4.469,5.583 0.365,0.313 10 false Any 5.01,5.271 5.375,5.583 0.365,0.313 10 false Any 3.854,6.135 4.667,6.927 0.813,0.792 10 false Reverses at the fully closed position 4.781,6.146 5.594,7.292 0.813,1.146 10 false Stops before reaching the fully closed position 0.208,3.354 2.219,3.615 2.01,0.26 10 false 5. If the power window reverses: 0.177,3.771 3.354,4.604 3.177,0.833 10 false (a) Within 4 seconds of the power window reversing, pull up and hold the switch at the auto up position to fully close the power window. 0.188,4.896 3.365,5.26 3.177,0.365 10 false + Continue holding the switch for 6 seconds or more after the power window is fully closed. 0.188,5.646 3.417,6.021 3.229,0.375 10 false 6. If the power window stops before reaching the fully closed position: 0.167,6.323 3.417,6.802 3.25,0.479 10 false (a) Pull up and hold the switch at the auto up position until the power window moves upward. 0.177,7.042 3.667,7.635 3.49,0.594 10 false (b) Pull up and hold the switch at the auto up operation position again and move the power window to the fully closed position.

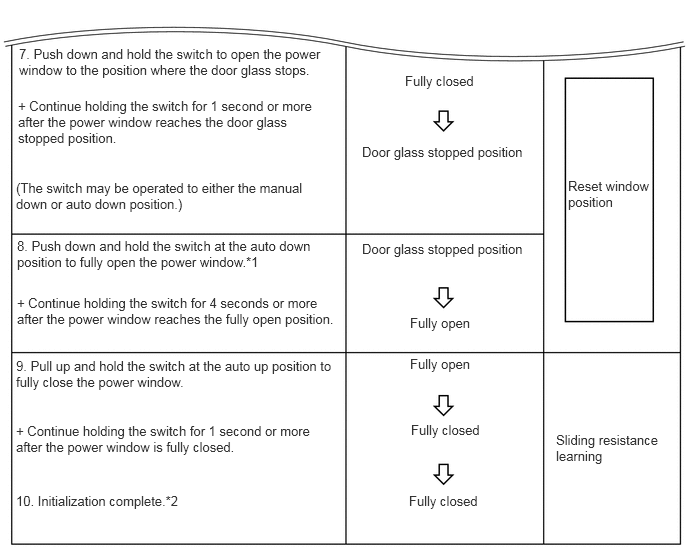

0.198,0.479 3.438,0.917 3.24,0.438 10 false 7. Push down and hold the switch to open the power window to the position where the door glass stops. 0.188,1.021 3.302,1.563 3.115,0.542 10 false + Continue holding the switch for 1 second or more after the power window reaches the door glass stopped position. 0.167,1.875 3.271,2.375 3.104,0.5 10 false (The switch may be operated to either the manual down or auto down position.) 0.177,2.479 3.375,2.958 3.198,0.479 10 false 8. Push down and hold the switch at the auto down position to fully open the power window.*1 0.177,3.073 3.583,3.438 3.406,0.365 10 false + Continue holding the switch for 4 seconds or more after the power window reaches the fully open position. 0.167,3.729 3.521,4.229 3.354,0.5 10 false 9. Pull up and hold the switch at the auto up position to fully close the power window. 0.167,4.406 3.271,4.906 3.104,0.5 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.167,5.135 2,5.406 1.833,0.271 10 false 10. Initialization complete.*2 4.219,0.76 5.073,1.094 0.854,0.333 10 false Fully closed 4.281,4.396 5.135,4.729 0.854,0.333 10 false Fully closed 4.26,5.135 5.115,5.469 0.854,0.333 10 false Fully closed 4.271,3.708 5.125,4.042 0.854,0.333 10 false Fully open 4.271,3.281 5.125,3.615 0.854,0.333 10 false Fully open 3.771,2.51 5.552,2.74 1.781,0.229 10 false Door glass stopped position 3.771,1.5 5.552,1.729 1.781,0.229 10 false Door glass stopped position 5.917,1.854 6.823,2.302 0.906,0.448 10 false Reset window position 5.792,4.5 7.01,4.896 1.219,0.396 10 false Sliding resistance learning

HINT:: *1: After performing step 7, release the switch, and then perform an auto down operation.

*2: After completing initialization, check that the power window can be fully closed using an auto up operation.

If initialization cannot be completed properly, the LIN communication system may be malfunctioning.

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for NR Series Engine)>HOW TO PROCEED WITH TROUBLESHOOTING202304,999999,_57,_080743,_0600577,RM100000002BDCH,

Procedure C

Perform sliding resistance learning.

0.99,0.104 2.365,0.427 1.375,0.323 10 false Operation Procedures 3.365,0.094 4.74,0.417 1.375,0.323 10 false Door Glass Position 5.635,0.104 6.271,0.521 0.635,0.417 10 false Purpose 0.229,0.521 2.646,0.76 2.417,0.24 10 false 1. Connect the battery. 0.24,0.792 2.542,1 2.302,0.208 10 false 2. Turn the ignition switch to ON. 0.229,1.063 3.01,1.302 2.781,0.24 10 false (Make sure the window lock switch is off.) 3.833,0.833 4.292,1.031 0.458,0.198 10 false Any 3.885,1.781 4.344,1.979 0.458,0.198 10 false Any 3.604,2.76 4.573,2.958 0.969,0.198 10 false Fully closed 0.24,1.479 2.917,2.031 2.677,0.552 10 false 3. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.208,2.583 3.01,2.958 2.802,0.375 10 false + Release the switch after the power window is fully closed. 5.552,2.677 6.292,3.063 0.74,0.385 10 false Reset preparation 0.25,3.448 3.146,4.021 2.896,0.573 10 false 4. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.219,4.469 3.052,4.844 2.833,0.375 10 false + Continue holding the switch for 4 seconds or more after the power window is fully closed. 3.542,4.208 4.51,4.406 0.969,0.198 10 false Fully closed 3.604,5.573 4.573,5.771 0.969,0.198 10 false Fully closed 0.25,5.323 3.083,5.698 2.833,0.375 10 false 5. Push down and hold the switch to fully open the power window. 0.24,5.917 3.083,6.344 2.844,0.427 10 false + Continue holding the switch for 1 second or more after the power window is fully opened. 0.229,6.521 2.771,6.99 2.542,0.469 10 false (The switch may be operated to either the manual down or auto down position.) 3.688,6.5 4.656,6.698 0.969,0.198 10 false Fully open 3.698,7.271 4.667,7.469 0.969,0.198 10 false Fully open 3.656,8.198 4.625,8.396 0.969,0.198 10 false Fully closed 0.198,7.115 2.969,7.635 2.771,0.521 10 false 6. Pull up and hold the switch at the auto up operation position to fully close the power window. 0.219,7.771 3.063,8.198 2.844,0.427 10 false + Continue holding the switch for 1 second or more after the power window is fully closed. 0.219,8.323 1.771,8.646 1.552,0.323 10 false 7. Initialization complete. 5.365,6.792 6.49,7.396 1.125,0.604 10 false Sliding resistance learning

HINT:: If the jam protection function or catch protection function continues to operate even after performing steps 4, 5 and 6, perform the procedure again from step 3.
