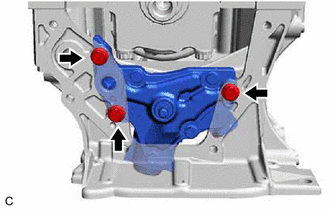

NR Series LUBRICATION  OIL PUMP  REMOVAL

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during oil pump removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Perform Vehicle Identification Number (VIN) or frame number registration	DTC is stored	(201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
	Code registration (Immobiliser system)	Engine start	See Service Bulletin for the registration method
Replacement of piston ring	Clear Heavy Knock History	-	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
· Replacement of engine assembly · Gas leaks from exhaust system	Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
Replacement of starter assembly	Clear the number of starter operations	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
Replacement of battery	Integrated current value initialization
Replacement of continuously variable transaxle assembly	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Replacement of CVT fluid	Air bleed the oil pump with motor assembly	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
Tires	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
Front wheel alignment adjustment	· Perform "Reset Memory" · Perform acceleration sensor zero point calibration and store system information memorization	· VSC is disabled or malfunctions · DTCs are stored · Slip indicator light illuminates · ABS warning light illuminates	(202304,999999,_54,_080770,_0599814,RM100000002BA8F,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System
