The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during park/neutral position switch assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of ECM | Perform Vehicle Identification Number (VIN) or frame number registration | DTC is stored | ( 201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
|
1.
Reset memory 2.
Deceleration sensor zero point calibration 3.
CVT oil pressure calibration |
·
Large shift shock ·
Deterioration of fuel efficiency |
( 201906,999999,_52,_080728,_0392261,RM100000001HP98,)
|
|
| Code registration (Immobiliser system) | Engine start | See Service Bulletin for the registration method | |
| Replacement of battery | Integrated current value initialization | Stop and Start System | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
|
| Pre-collision System | Perform steering sensor zero point calibration | ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
|
| Lane Tracing Assist System |
1.SECURE VEHICLE
Fully apply the parking brake and chock a wheel.
Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
2. PRECAUTION
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
3.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
53289A
4.REMOVE RADIATOR SUPPORT OPENING COVER (for TFTM Made)
53289A
5.REMOVE RADIATOR SUPPORT OPENING COVER (for GTMC Made)
17751
6.REMOVE INLET NO. 1 AIR CLEANER
17705
7.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
17701
8.REMOVE AIR CLEANER CASE SUB-ASSEMBLY
89661
9.REMOVE ECM
10.REMOVE BATTERY
11.DISCONNECT ENGINE WIRE
Remove the bolt and nut to disconnect the engine wire from the battery clamp sub-assembly.
74404A
12.REMOVE BATTERY CLAMP SUB-ASSEMBLY
33820B
13.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Move the shift lever to N.
Remove the nut and disconnect the transmission control cable assembly from the transmission control shaft lever.
Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
84540
14.REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

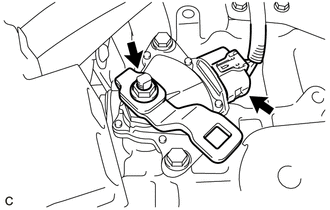

Disconnect the park/neutral position switch assembly connector.
Remove the nut, washer and transmission control shaft lever from the park/neutral position switch assembly.

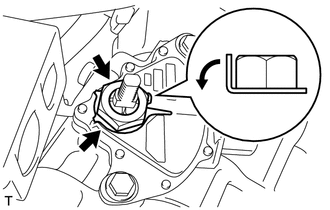

Using a screwdriver, bend back the tabs of the lock plate.
Remove the lock nut and lock plate from the park/neutral position switch assembly.

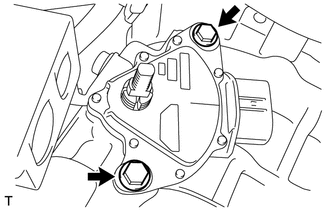

Remove the 2 bolts and park/neutral position switch assembly from the continuously variable transaxle assembly.
