RM3660EC _51 Engine / Hybrid System _080750 NR Series FUEL _0393850 FUEL PUMP(for High Pressure) A

NR Series FUEL FUEL PUMP(for High Pressure) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel pump assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of fuel pump assembly · Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

CAUTION:: ·

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

·

To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 2. DISCHARGE FUEL SYSTEM PRESSURE

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL SYSTEM>PRECAUTION202304,999999,_51,_080750,_0393845,RM100000002BH2H,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

Hide Display 4.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>REMOVAL202304,202307,_59,_080767,_0392873,RM100000002AYHJ,202307,999999,_59,_080767,_0392873,RM100000002CL7Q,

Hide Display 55737B 5.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0045,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0045,

Hide Display 55701J 6.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>REMOVAL202304,202307,_53,_080764,_0392681,RM100000002BA6Q_01_0036,202307,999999,_53,_080764,_0392681,RM100000002CW5B_01_0036,

Hide Display 17705 7.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0369,

Hide Display 17111 8.REMOVE INTAKE MANIFOLD

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTAKE MANIFOLD>REMOVAL201906,999999,_51,_080791,_0392517,RM100000001HRDB,

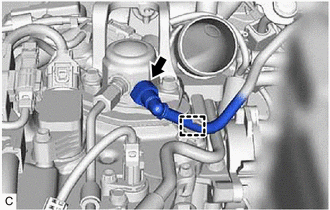

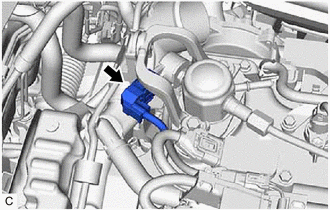

Hide Display 23901 9.DISCONNECT FUEL TUBE SUB-ASSEMBLY

Disconnect the fuel tube sub-assembly from the fuel pump assembly.

Click hereEngine / Hybrid System>NR Series (FUEL)>FUEL SYSTEM>PRECAUTION202304,999999,_51,_080750,_0393845,RM100000002BH2H,

Disengage the clamp to disconnect the fuel tube sub-assembly.

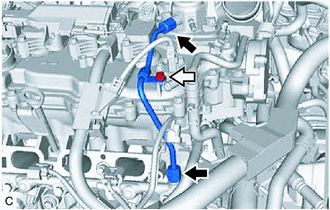

Hide Display 23801P 10.REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

0,0 0,0 false

	Union Nut
	Bolt

Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.

Remove the bolt.

0.698,1.219 0.823,1.375 0.125,0.156 10 true A 2.375,1.438 2.5,1.594 0.125,0.156 10 true A 1.76,0.031 1.885,0.188 0.125,0.156 10 true B

Loosen the 2 bolts (A).

Remove the bolt (B).

Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe and fuel pump assembly.

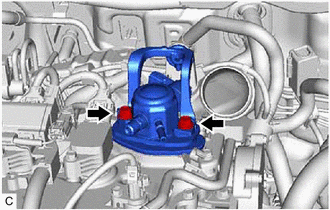

Hide Display 23100X 11.REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

Disconnect the fuel pump assembly connector.

Remove the 2 bolts, fuel pump assembly and fuel pump protector from the cylinder head cover sub-assembly.

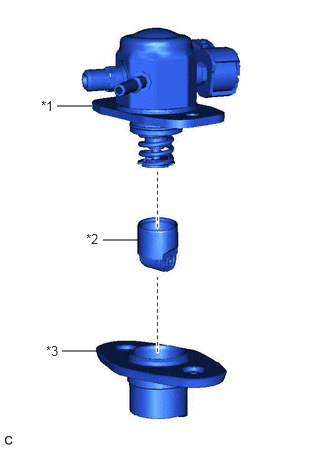

0.594,1.104 0.958,1.104 false 1.073,2.5 1.438,2.5 false 0.646,3.656 1.01,3.656 false 0.427,1.021 0.74,1.177 0.313,0.156 10 false *1 0.896,2.406 1.208,2.563 0.313,0.156 10 false *2 0.479,3.573 0.792,3.729 0.313,0.156 10 false *3

*1	Fuel Pump Assembly
*2	Fuel Pump Lifter Assembly
*3	Fuel Pump Lifter Guide

Remove the fuel pump lifter guide and fuel pump lifter assembly from the fuel pump assembly.

Remove the O-ring from the fuel pump assembly.

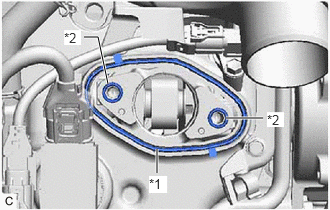

1.635,1.802 1.635,1.552 true 0.875,0.385 1.021,0.385 1.021,0.385 1.125,0.875 true 2.74,1.229 2.354,1.229 true 1.552,1.833 1.74,2.01 0.188,0.177 10 true *1 2.781,1.167 2.958,1.323 0.177,0.156 10 true *2 0.667,0.313 0.844,0.469 0.177,0.156 10 true *2

*1	Fuel Pump Spacer Gasket
*2	O-ring

Remove the fuel pump spacer gasket from the cylinder head cover sub-assembly.

Remove the 2 O-rings from the camshaft bearing cap.
