NR Series INTAKE / EXHAUST INTAKE MANIFOLD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effects/Inoperative when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)

PROCEDURE

Hide Display 1.REMOVE INTERCOOLER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>INTERCOOLER>REMOVAL201906,999999,_51,_080791,_0392519,RM100000001HRDK,

Hide Display 25860 2.REMOVE PURGE VALVE (PURGE VSV)

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>PURGE VALVE>REMOVAL201906,999999,_51,_080792,_0392496,RM100000001HRBQ,

Hide Display 89421L 3.REMOVE NO. 2 TURBO PRESSURE SENSOR

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>MANIFOLD ABSOLUTE PRESSURE SENSOR>REMOVAL201906,999999,_51,_080777,_0392346,RM100000001HQ2R_01_0002,

Hide Display 4.DRAIN ENGINE COOLANT (for Engine)

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 22030 5.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

0.719,1.74 0.927,1.74 0.927,1.74 1.135,1.323 true 2.365,2.01 2.188,2.01 2.188,2.01 1.885,1.594 true 0.49,1.656 0.75,1.844 0.26,0.188 10 true *1 2.438,1.875 2.656,2.073 0.219,0.198 10 true *2

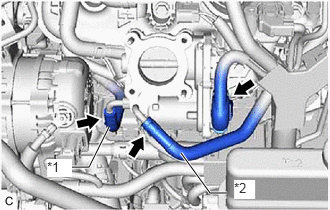

*1	No. 1 Water By-pass Hose
*2	No. 2 Water By-pass Hose

Disconnect the throttle body with motor assembly connector.

Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body with motor assembly.

Remove the throttle body with motor assembly from the intake manifold.

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.

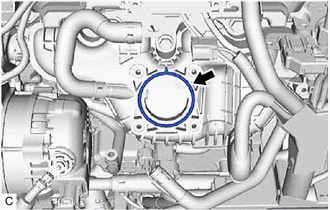

Hide Display 22271 6.REMOVE THROTTLE BODY GASKET

Remove the throttle body gasket from the intake manifold.

Hide Display 82121 7.DISCONNECT ENGINE WIRE

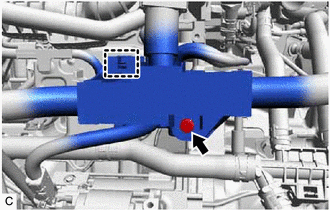

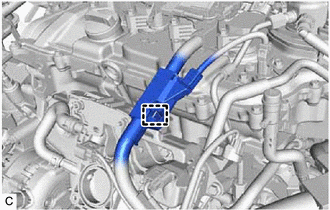

Disengage the wire harness clamp.

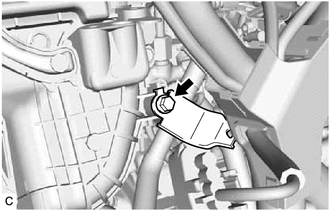

Remove the bolt and wire harness clamp bracket from the intake manifold.

Disengage the wire harness clamp from the wire harness clamp bracket.

Remove the bolt and wire harness clamp bracket from the intake manifold.

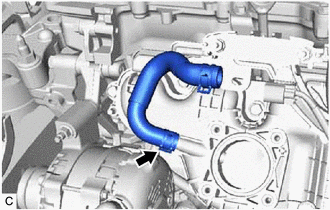

Disconnect the No. 2 water by-pass hose from the intake manifold.

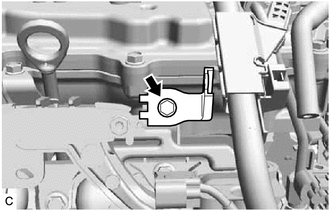

Remove the bolt and disengage the wire harness clamp from the cylinder block sub-assembly.

Hide Display 23829 8.REMOVE NO. 3 FUEL VAPOR FEED HOSE

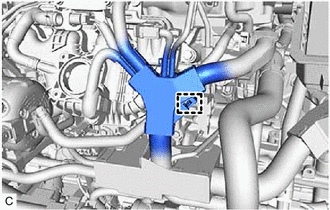

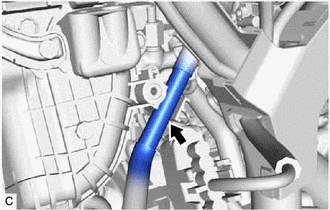

Slide the clip and remove the No. 3 fuel vapor feed hose from the intake manifold.

Hide Display 17111 9.REMOVE INTAKE MANIFOLD

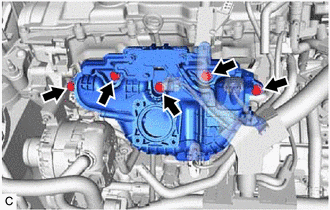

Remove the 5 bolts and intake manifold from the cylinder head sub-assembly.

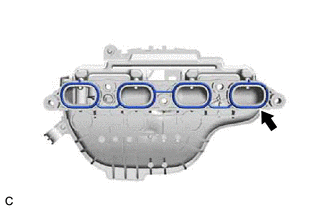

Hide Display 17177 10.REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

Remove the No. 1 intake manifold to head gasket from the intake manifold.

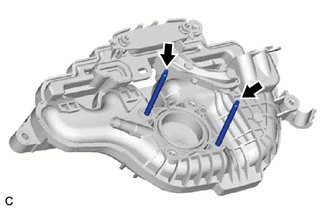

Hide Display 11.REMOVE STUD BOLT

Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
