NR Series ENGINE CONTROL CAMSHAFT POSITION SENSOR INSTALLATION

PROCEDURE

Hide Display 1.INSTALL CAMSHAFT POSITION SENSOR (for Exhaust Side)

Connect the camshaft position sensor connector to install the camshaft position sensor to the sensor wire.

Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

NOTICE:: If reusing the camshaft position sensor, be sure to inspect the O-ring.

1.49,1.938 1.781,1.938 1.781,1.938 1.865,1.583 false 1.323,1.844 1.635,2 0.313,0.156 10 false *a

Adhesive

Apply adhesive to 2 or 3 threads of a new bolt.

Adhesive:: Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

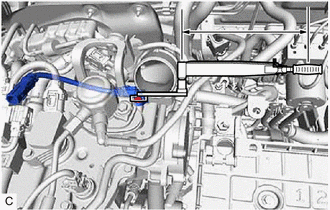

1.135,1.563 1.135,1.292 1.135,1.292 1.375,1.031 true 1.719,1.385 1.719,0.979 true 1.073,1.573 1.302,1.729 0.229,0.156 10 true *a 2.427,0.115 2.594,0.281 0.167,0.167 10 true *b 1.615,1.406 1.927,1.573 0.313,0.167 10 true SST

*a	10 mm Union Nut Wrench
*b	Torque Wrench Fulcrum Length

Using SST and a 10 mm union nut wrench, install the camshaft position sensor to the cylinder head cover sub-assembly with the bolt.

SST: 09961-00950

Torque:: Specified tightening torque : 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:: ·

If the camshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.

HINT:: ·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION201906,999999,_V1,_080724,_0393249,RM100000001HWSK,

·

When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 185 mm (7.28 in.)):

5.2 N*m (53 kgf*cm, 46 in.*lbf)

Connect the sensor wire connector.

Install the fuel vapor feed pipe to the cylinder head cover sub-assembly with the 2 bolts.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Connect the inlet No. 1 air duct sub-assembly to the fuel pump protector with the bolt.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Hide Display 17705 2.INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0409,

Hide Display 3.INSTALL BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN,

Hide Display 55701J 4.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>INSTALLATION202304,202307,_53,_080764,_0392681,RM100000002BA6W_01_0037,202307,999999,_53,_080764,_0392681,RM100000002CW5I_01_0037,

Hide Display 55737B 5.INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Click hereSuspension>FRONT SUSPENSION>FRONT SHOCK ABSORBER>INSTALLATION202304,202307,_53,_080764,_0392681,RM100000002BA6W_01_0048,202307,999999,_53,_080764,_0392681,RM100000002CW5I_01_0048,

Hide Display 6.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION202304,202307,_59,_080767,_0392873,RM100000002AYHL,202307,999999,_59,_080767,_0392873,RM100000002CL7R,

Hide Display 7.INSTALL CAMSHAFT POSITION SENSOR (for Intake Side)

Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

NOTICE:: If reusing the camshaft position sensor, be sure to inspect the O-ring.

1.49,1.938 1.781,1.938 1.781,1.938 1.865,1.583 false 1.323,1.844 1.635,2 0.313,0.156 10 false *a

Adhesive

Apply adhesive to 2 or 3 threads of a new bolt.

Adhesive:: Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Install the camshaft position sensor to the cylinder head cover sub-assembly with the bolt.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:: ·

If the camshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.

Connect the camshaft position sensor connector.

Hide Display 8.INSPECT FOR ENGINE OIL LEAK

Click hereGeneral>MAINTENANCE>NR Series OIL AND OIL FILTER>REPLACEMENT202101,999999,_V1,_080956,_0392373,RM100000001TTC4_01_0008,

Hide Display 9. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
