WINDOW / GLASS POWER WINDOW CONTROL SYSTEM(for NR Series Engine) Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch
DESCRIPTION
If the manual up and down functions operate normally but the auto up and down functions do not, the power window control system may be in fail-safe mode.
If power window initialization has not been performed, the auto up and down functions will not operate.

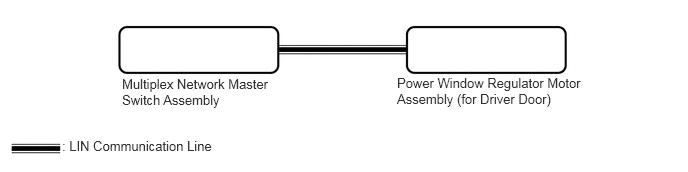

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.
·If the power window regulator motor assembly (for driver door) has been replaced with a new one, initialize the power window control system.
·Check that power window system customize setting "D Window Auto Up" and "D Window Auto Down" are set to "ON" before performing the following procedure.
·After the catch protection function has operated, the auto up function will not operate the first time the power window auto up switch is operated. The auto up function will operate normally after the first power window switch operation.
- HINT:
-
If the pulse sensor built into the power window regulator motor assembly (for driver door) is malfunctioning, the power window control system will enter fail-safe mode. The remote up and down and auto up and down functions cannot be operated during fail-safe mode. However, the power window can be closed by holding the multiplex network master switch assembly at the auto up position, and opened manually by pushing down the multiplex network master switch assembly.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Body Electrical / Master switch / Data List.
Read the Data List according to the display on the GTS.
- Body Electrical > Master Switch > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Auto SW Driver door power window auto switch signal OFF or ON OFF: Driver door power window auto up or auto down switch not being operated
ON: Driver door power window auto up or auto down switch being operated-
- Body Electrical > Master Switch > Data List
-
Tester Display D Door P/W Auto SW - 50003 148 1
- OK:
On the GTS screen, ON or OFF is displayed accordingly.
- Result:
Proceed to OK NG
OK
NG
Enter the following menus: Body Electrical / D-Door Motor / Data List.
Read the Data List according to the display on the GTS.
- Body Electrical > D-Door Motor > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note D Door P/W Auto SW Driver door power window auto switch signal OFF or ON OFF: Driver door power window auto up or auto down switch not being operated
ON: Driver door power window auto up or auto down switch being operated-
- Body Electrical > D-Door Motor > Data List
-
Tester Display D Door P/W Auto SW - 50003 124 1
- OK:
On the GTS screen, ON or OFF is displayed accordingly.
- Result:
Proceed to OK NG
OK
NG
Initialize the power window regulator motor assembly (for driver door).
- Result:
Proceed to NEXT
NEXT
Check that the driver door power window moves when the auto up and down functions of the multiplex network master switch assembly are operated.
- OK:
Driver door auto up and down functions are normal.
- Result:
Proceed to OK NG
OK
NG
Replace the multiplex network master switch assembly.
- Result:
Proceed to NEXT
NEXT
Check that the driver door power window moves when the auto up and down functions of the multiplex network master switch assembly are operated.
- OK:
Driver door auto up and down functions are normal.
- Result:
Proceed to OK NG
OK
NG
