WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM(for NR Series Engine)  Remote Up / Down Function does not Operate


DESCRIPTION

When the ignition switch is ON, the multiplex network master switch assembly sends remote up and down signals to each power window regulator motor assembly via LIN communication.

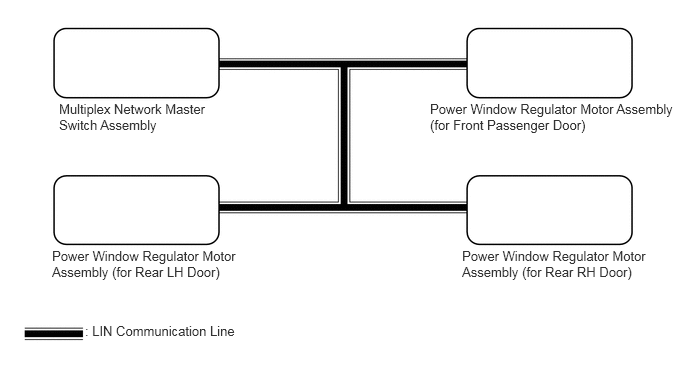

WIRING DIAGRAM

B343203E08
0.615,1.052 2.24,1.542 1.625,0.49 10 false Multiplex Network Master Switch Assembly 0.542,2.583 2.479,3.083 1.938,0.5 10 false Power Window Regulator Motor Assembly (for Rear LH Door) 4.479,1.052 7.104,1.583 2.625,0.531 10 false Power Window Regulator Motor Assembly (for Front Passenger Door) 4.813,2.583 6.844,3.073 2.031,0.49 10 false Power Window Regulator Motor Assembly (for Rear RH Door) 0.885,3.365 2.573,3.625 1.688,0.26 10 false : LIN Communication Line

CAUTION / NOTICE / HINT

NOTICE:
·

The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM (for NR Series Engine)>HOW TO PROCEED WITH TROUBLESHOOTING

·

If a power window regulator motor assembly has been replaced with a new one, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM (for NR Series Engine)>INITIALIZATION



PROCEDURE

1.READ VALUE USING GTS (MAIN BODY)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Main Body / Data List.


e.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Communication P-Door Motor Connection status between power window regulator motor assembly (for front passenger door) and main body ECU (multiplex network body ECU) STOP or OK STOP: Communication stopped
OK: Normal communication 		-
Communication RR-Door Motor Connection status between power window regulator motor assembly (for rear RH door) and main body ECU (multiplex network body ECU) STOP or OK STOP: Communication stopped
OK: Normal communication 		-
Communication RL-Door Motor Connection status between power window regulator motor assembly (for rear LH door) and main body ECU (multiplex network body ECU) STOP or OK STOP: Communication stopped
OK: Normal communication 		-
Communication Master SW Connection status between multiplex network master switch assembly and main body ECU (multiplex network body ECU) STOP or OK STOP: Communication stopped
OK: Normal communication 		-
Body Electrical > Main Body > Data List
Tester Display
Communication P-Door Motor
Communication RR-Door Motor
Communication RL-Door Motor
Communication Master SW
50003 123 64,65,66,70
OK:

OK is displayed for each Data List item above.



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (MASTER SWITCH)

NG

GO TO LIN COMMUNICATION SYSTEM (Proceed to How to Proceed with Troubleshooting)

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for NR Series Engine)>HOW TO PROCEED WITH TROUBLESHOOTING


2.READ VALUE USING GTS (MASTER SWITCH)
a.

Enter the following menus: Body Electrical / Master Switch / Data List.


b.

Read the Data List according to the display on the GTS.

Body Electrical > Master Switch > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P Door P/W Auto SW Front passenger door power window auto switch signal OFF or ON OFF: Front passenger door power window auto up or auto down switch not being operated
ON: Front passenger door power window auto up or auto down switch being operated 		-
RR Door P/W Auto SW Rear RH door power window auto switch signal OFF or ON OFF: Rear RH door power window auto up or auto down switch not being operated
ON: Rear RH door power window auto up or auto down switch being operated 		-
RL Door P/W Auto SW Rear LH door power window auto switch signal OFF or ON OFF: Rear LH door power window auto up or auto down switch not being operated
ON: Rear LH door power window auto up or auto down switch being operated 		-
P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON OFF: Front passenger door power window manual up switch not being operated
ON: Front passenger door power window manual up switch being operated 		-
RR Door P/W up switch Rear RH door power window manual up switch signal OFF or ON OFF: Rear RH door power window manual up switch not being operated
ON: Rear RH door power window manual up switch being operated 		-
RL Door P/W up switch Rear LH door power window manual up switch signal OFF or ON OFF: Rear LH door power window manual up switch not being operated
ON: Rear LH door power window manual up switch being operated 		-
P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON OFF: Front passenger door power window manual down switch not being operated
ON: Front passenger door power window manual down switch being operated 		-
RR Door P/W Down SW Rear RH door power window manual down switch signal OFF or ON OFF: Rear RH door power window manual down switch not being operated
ON: Rear RH door power window manual down switch being operated 		-
RL Door P/W Down SW Rear LH door power window manual down switch signal OFF or ON OFF: Rear LH door power window manual down switch not being operated
ON: Rear LH door power window manual down switch being operated 		-
Window Lock Switch Status Window lock switch signal OFF or ON OFF: Window lock switch off (not pushed in)
ON: Window lock switch on (pushed in) 		-
Body Electrical > Master Switch > Data List
Tester Display
P Door P/W Auto SW
RR Door P/W Auto SW
RL Door P/W Auto SW
P Door P/W Up SW
RR Door P/W up switch
RL Door P/W up switch
P Door P/W Down SW
RR Door P/W Down SW
RL Door P/W Down SW
Window Lock Switch Status
50003 148 2,3,4,5,6,7,35,36,37,40
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Result Proceed to
NG A
OK (Front passenger door power window remote up and down functions do not operate) B
OK (Rear LH door power window remote up and down functions do not operate) C
OK (Rear RH door power window remote up and down functions do not operate)



A

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW MASTER SWITCH>REMOVAL


B

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Front Door)>REMOVAL


C

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door or Rear RH Door)

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL
