TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING SYSTEM(for Gasoline Model (for Type A))  Tire Pressure Warning Light Circuit


DESCRIPTION

If the tire pressure warning ECU and receiver detects any problems, the tire pressure warning light blinks, and tire pressure monitoring is disabled at the same time. At this time, the ECU stores a DTC in memory.

The tire pressure warning ECU and receiver sends the tire pressure warning light illumination request signal to the main body ECU (multiplex network body ECU) via a direct line. The main body ECU (multiplex network body ECU) then sends the signal to the combination meter assembly via CAN communication.

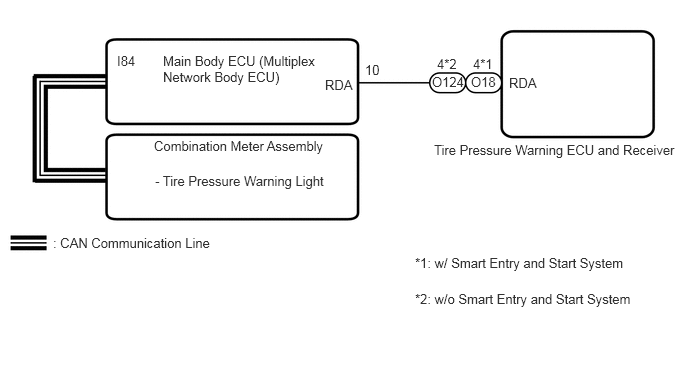

WIRING DIAGRAM

C376328E09
1.219,0.552 1.677,0.75 0.458,0.198 10 false I84 4.5,0.771 4.958,0.969 0.458,0.198 10 false O124 4.906,0.771 5.365,0.969 0.458,0.198 10 false O18 4.521,1.479 7.146,1.781 2.625,0.302 10 false Tire Pressure Warning ECU and Receiver 1.698,0.552 3.344,0.917 1.646,0.365 10 false Main Body ECU (Multiplex Network Body ECU) 1.604,1.438 3.531,1.781 1.927,0.344 10 false Combination Meter Assembly 1.615,1.802 3.479,2.073 1.865,0.271 10 false - Tire Pressure Warning Light 0.552,2.448 2.594,2.823 2.042,0.375 10 false : CAN Communication Line 3.385,0.802 3.844,1 0.458,0.198 10 false RDA 5.302,0.781 5.76,0.979 0.458,0.198 10 false RDA 4.552,0.583 5.01,0.781 0.458,0.198 10 false 4*2 4.927,0.583 5.385,0.781 0.458,0.198 10 false 4*1 3.802,0.646 4.26,0.844 0.458,0.198 10 false 10 4.323,2.656 6.948,2.958 2.625,0.302 10 false *1: w/ Smart Entry and Start System 4.323,3.031 6.948,3.333 2.625,0.302 10 false *2: w/o Smart Entry and Start System

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the tire pressure warning ECU and receiver, read the transmitter IDs and number of the transmitters (4 or 5) stored in the old ECU using the GTS and write them down before removal.

·

It is necessary to perform initializationSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type A))>INITIALIZATION after registrationSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type A))>REGISTRATION of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU has been replaced.



PROCEDURE

1.CHECK FOR DTC (CAN COMMUNICATION SYSTEM)
a.

Check if CAN communication system DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (except NR Series))>DIAGNOSIS SYSTEM


Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

2.CHECK DTC OUTPUT (B1247)

B

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING


2.CHECK DTC OUTPUT (B1247)
a.

Clear the DTCs.

Chassis > Tire Pressure Monitor > Clear DTCs
50002 203

b.

Turn the ignition switch off.


c.

Turn the ignition switch to ON.


d.

Check for DTCs.

Chassis > Tire Pressure Monitor > Trouble Codes
50001 203

Result:
Result Proceed to
B1247 is not output A
B1247 is output B



A

3.CHECK OPERATION OF TIRE PRESSURE WARNING LIGHT (ACTIVE TEST)

B

GO TO DTC (B1247)

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type A))>B1247


3.CHECK OPERATION OF TIRE PRESSURE WARNING LIGHT (ACTIVE TEST)
a.

Turn the ignition switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON.


d.

Turn the GTS on.


e.

Enter the following menus: Body Electrical / Combination Meter / Active Test.


f.

Check the condition of the tire pressure warning light using the GTS.

Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON -
Body Electrical > Combination Meter > Active Test
Tester Display
Tire Pressure Warning System Indicator
50004 409 127
OK:

The tire pressure warning light turns on or off in accordance with the GTS operation.



Result:
Proceed to
OK
NG



OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING RECEIVER>REMOVAL


NG

GO TO METER / GAUGE SYSTEM

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (except 12.3 Inch Display)>HOW TO PROCEED WITH TROUBLESHOOTING
