METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for 12.3 Inch Display)  Speedometer Malfunction


DESCRIPTION

The combination meter assembly receives vehicle speed signals from the skid control ECU (brake actuator assembly) via CAN communication. The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU (brake actuator assembly). The skid control ECU (brake actuator assembly) supplies power to the vehicle speed sensor. The skid control ECU (brake actuator assembly) detects vehicle speed signals based on pulses of the voltage.

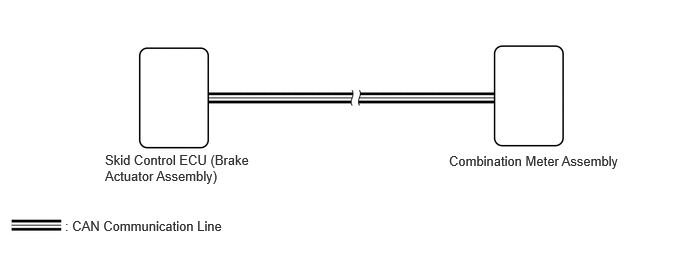

WIRING DIAGRAM

E370855E64
0.677,2.271 3.042,2.521 2.365,0.25 10 false : CAN Communication Line 4.677,1.594 6.656,2 1.979,0.406 10 false Combination Meter Assembly 1.094,1.583 2.646,2.01 1.552,0.427 10 false Skid Control ECU (Brake Actuator Assembly)

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY

-

Combination meter assembly

-

Skid control ECU (brake actuator assembly)




PROCEDURE

1.CHECK TIRES
a.

Check the tire size, tire wear and tire pressures are normal.

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION

HINT:

Factors that affect the indicated vehicle speed include the tire size, tire wear and tire pressures.



Result:
Proceed to
OK
NG



OK

2.CONFIRM MODEL

NG

REPLACE TIRE OR ADJUST TIRE PRESSURERE

2.CONFIRM MODEL
a.

Choose the model to be inspected.

Result:
Result Proceed to
for HV Model A
for Gasoline Model B




A

3.CHECK CAN COMMUNICATION SYSTEM

B

6.CHECK CAN COMMUNICATION SYSTEM
3.CHECK CAN COMMUNICATION SYSTEM
a.

Check if CAN communication DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM


Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

4.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

B

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING


4.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)
a.

Check if electronically controlled brake system DTCs are output.

Chassis > Brake/EPB > Trouble Codes
50001 435
Chassis > Brake Booster > Trouble Codes
50001 466

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

5.PERFORM ACTIVE TEST USING GTS

B

GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)>DIAGNOSTIC TROUBLE CODE CHART


5.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Speed Signal Input (0) Vehicle speed test signal input ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (40) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (80) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (120) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (160) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (200) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (240) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (280) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


*: For the tolerance of speedometer, refer to On-Vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for 12.3 Inch Display)>ON-VEHICLE INSPECTION


Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (0)
50004 409 300
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (40)
50004 409 301
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (80)
50004 409 302
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (120)
50004 409 303
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (160)
50004 409 304
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (200)
50004 409 305
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (240)
50004 409 306
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (280)
50004 409 307

Result:
Result Proceed to
Active Test can be performed correctly A
Active Test cannot be performed correctly B



A

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


B

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


6.CHECK CAN COMMUNICATION SYSTEM
a.

Check if CAN communication DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (except NR Series))>DIAGNOSIS SYSTEM


Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

7.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

B

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (except NR Series))>DIAGNOSIS SYSTEM


7.CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)
a.

Check if electronically controlled brake system DTCs are output.

Chassis > Brake/EPB > Trouble Codes
50001 435

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

8.PERFORM ACTIVE TEST USING GTS

B

GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for Gasoline Model (except NR Series))>DIAGNOSTIC TROUBLE CODE CHART


8.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Speed Signal Input (0) Vehicle speed test signal input ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (40) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (80) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (120) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (160) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (200) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (240) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (280) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


*: For the tolerance of speedometer, refer to On-Vehicle Inspection.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for 12.3 Inch Display)>ON-VEHICLE INSPECTION


Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (0)
50004 409 300
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (40)
50004 409 301
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (80)
50004 409 302
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (120)
50004 409 303
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (160)
50004 409 304
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (200)
50004 409 305
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (240)
50004 409 306
Body Electrical > Combination Meter > Active Test
Tester Display
Speed Signal Input (280)
50004 409 307

Result:
Result Proceed to
Active Test can be performed correctly A
Active Test cannot be performed correctly B



A

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL


B

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL
